Bulb Replacement

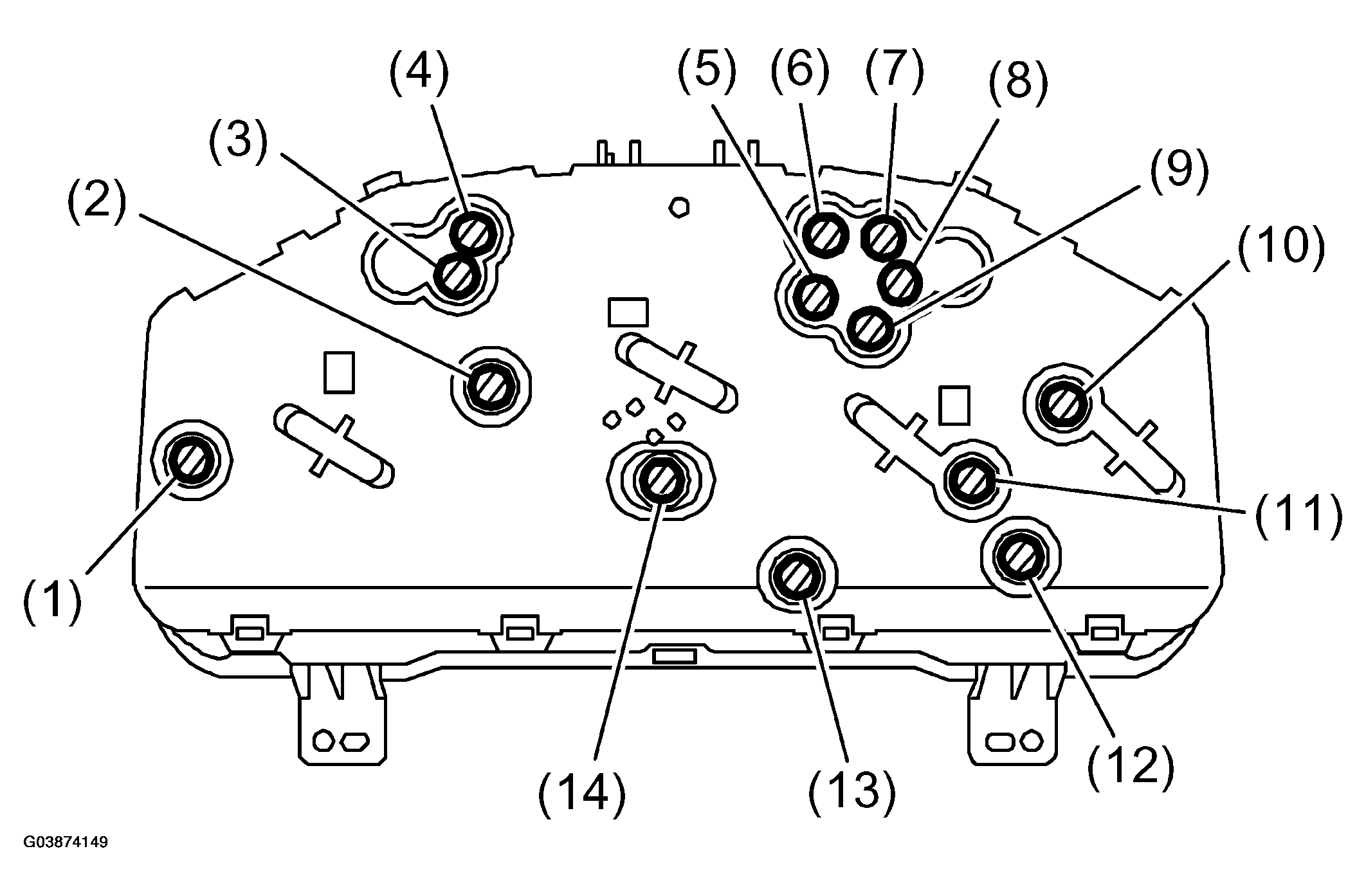

Fig 1: Identifying Combination Meter Lights
G03874149Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Tachometer
  2. Speedometer and tachometer
  3. Turn signal indicator light (RH)
  4. HI -beam indicator light
  5. Speedometer
  6. Cruise set indicator light
  7. Cruise indicator light
  8. Turn signal indicator light (LH)
  9. Brake fluid and parking brake warning light
  10. Fuel gauge
  11. Temperature gauge
  12. LCD (Outside temperature indicator)
  13. Charge warning light
  14. LCD (Odometer and tripmeter)
