Ambient Sensor: Removal

Disconnect the ground cable from battery.

Disconnect the ambient sensor connector.

Remove the ambient sensor (A) from radiator lower panel.

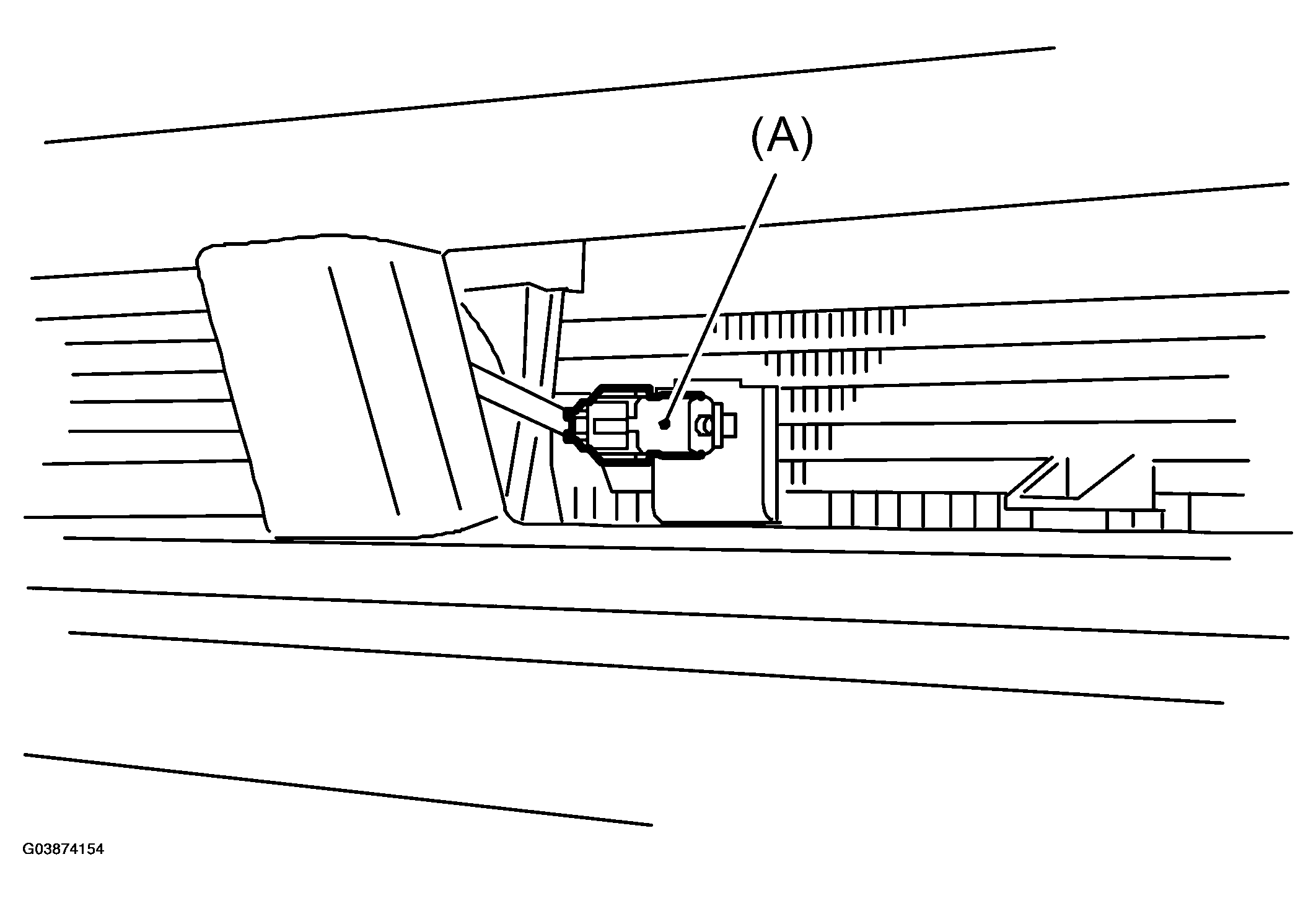

Fig 1: Removing Ambient Sensor From Radiator Lower Panel
G03874154Courtesy of SAAB-SCANIA OF AMERICA, INC.
