ABS Control Module & Hydraulic Control Unit (ABSCM&H/U)

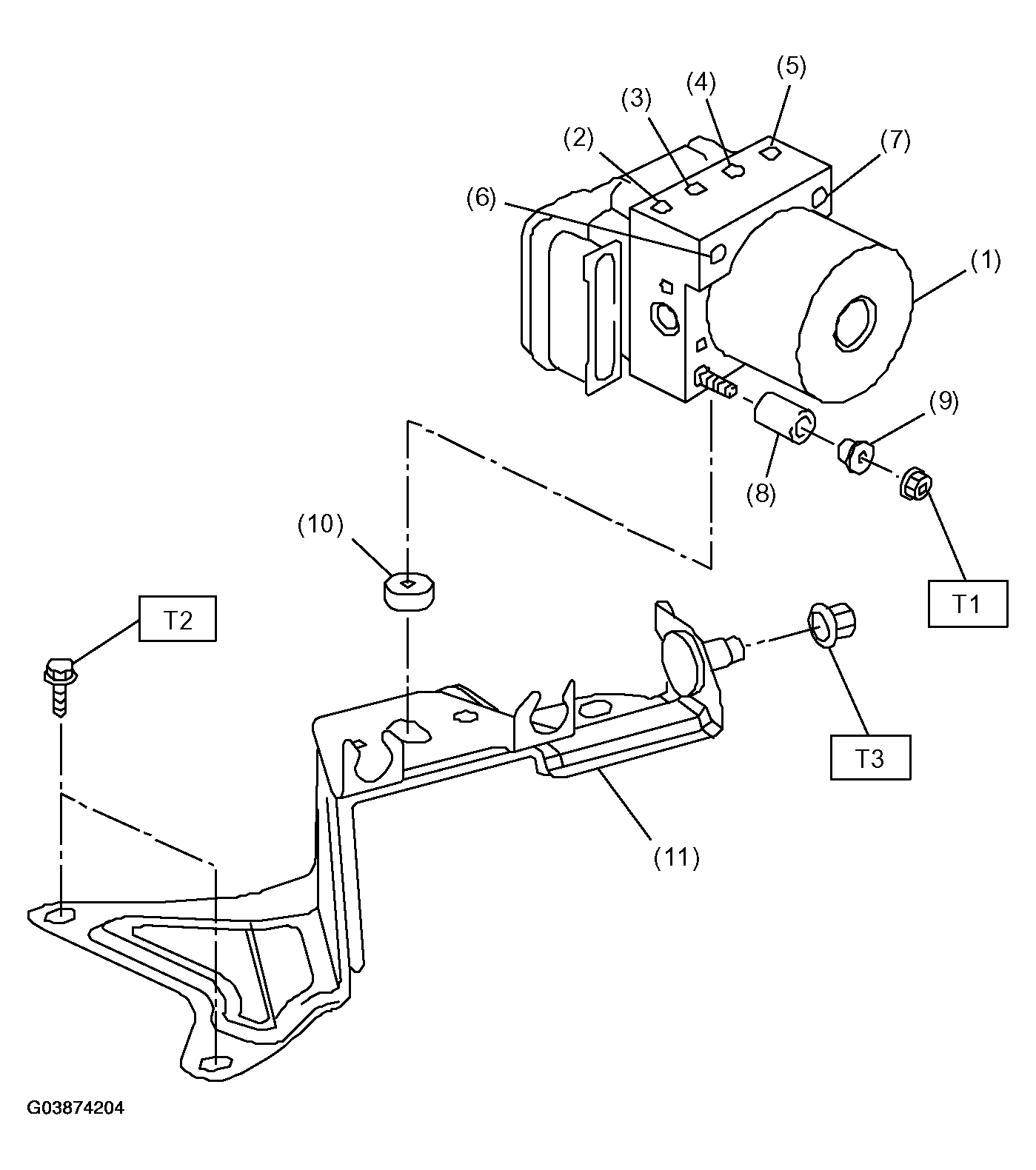

Fig 1: Identifying ABS Control Module And Hydraulic Control Unit
G03874204Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. (1) ABS control module and hydraulic control unit (ABSCM&H/U)
  2. (6) Primary inlet
  3. (7) Secondary inlet

    Tightening torque: Nm (kgf-m, ft-lb)

    T1: 7.5 (0.76, 5.5)
