Front ABS Wheel Speed Sensor: Removal

Disconnect the ground cable from battery.

Disconnect the front ABS wheel speed sensor connector located next to the front strut mounting house in engine compartment. Pull the connector out from grommet hole to tire side.

Remove the bolts which secure the sensor harness to strut.

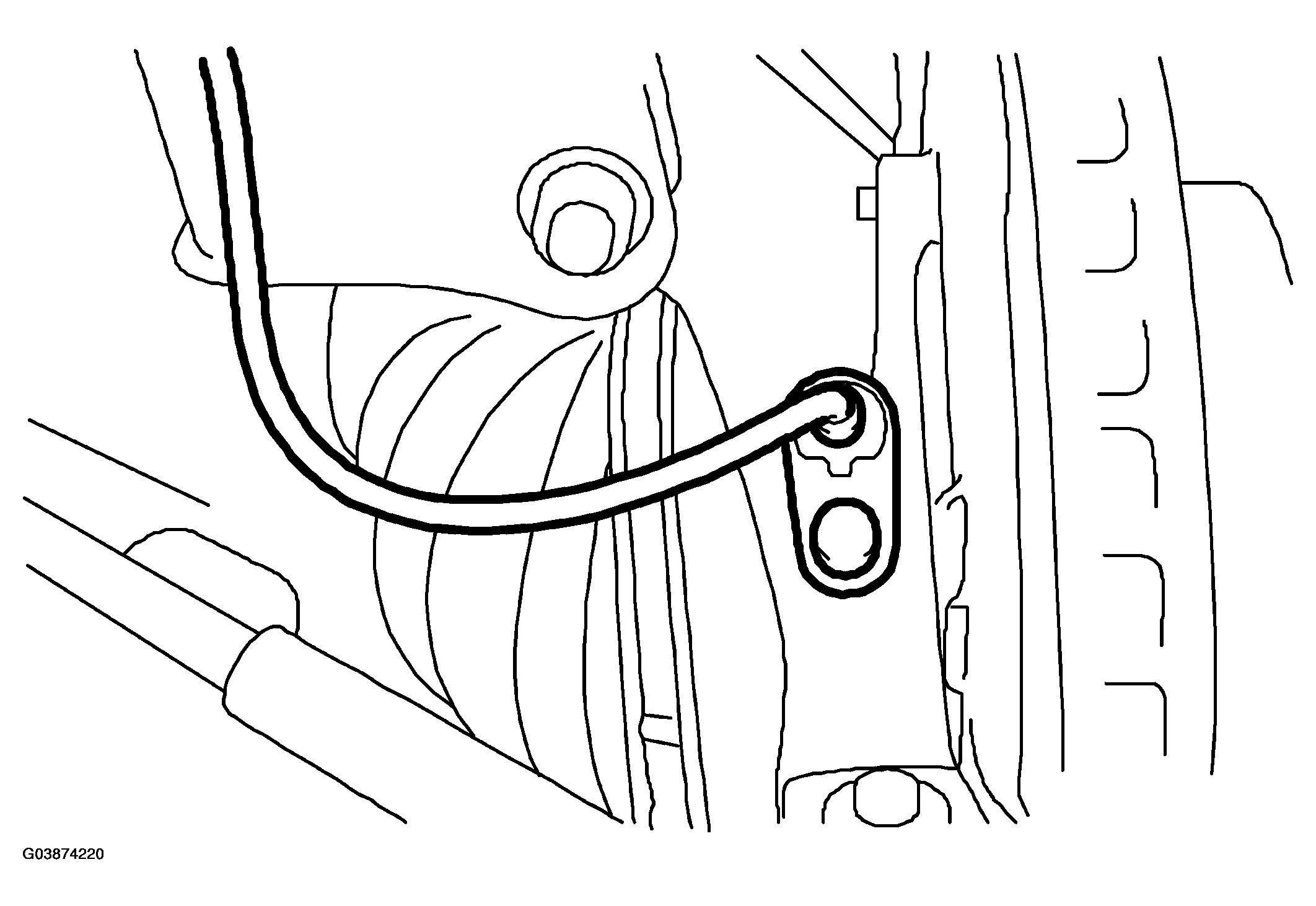

Fig 1: Removing Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the bolts which secure the sensor harness to body.

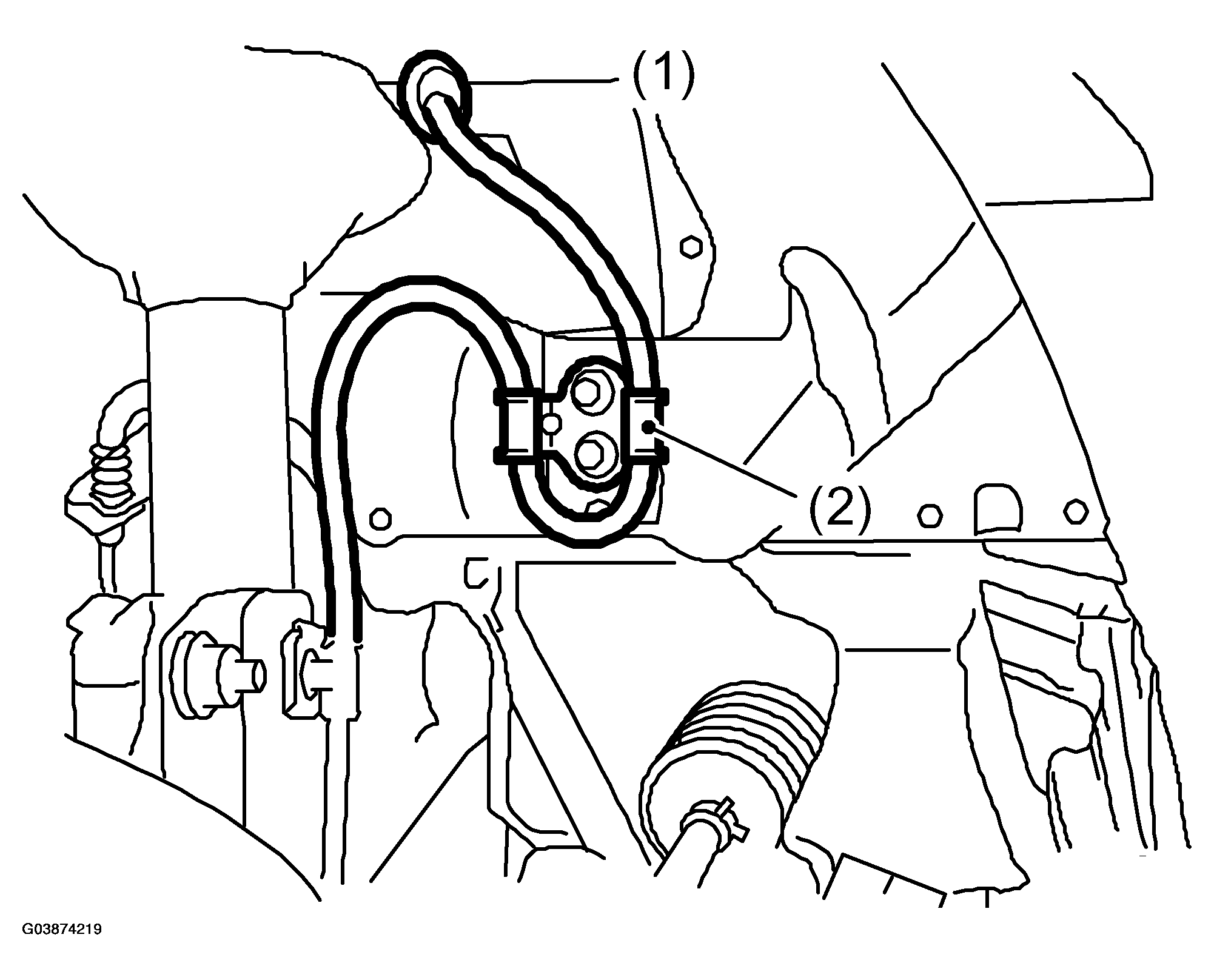

Fig 2: Removing Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

To front ABS wheel speed sensor connector
Bracket

Remove the bolts which secure the front ABS wheel speed sensor to housing, and remove the front ABS wheel speed sensor.

IMPORTANT:

Be careful not to damage the pole piece located at tip of the sensor and teeth faces during removal.
Do not pull the sensor harness during removal.

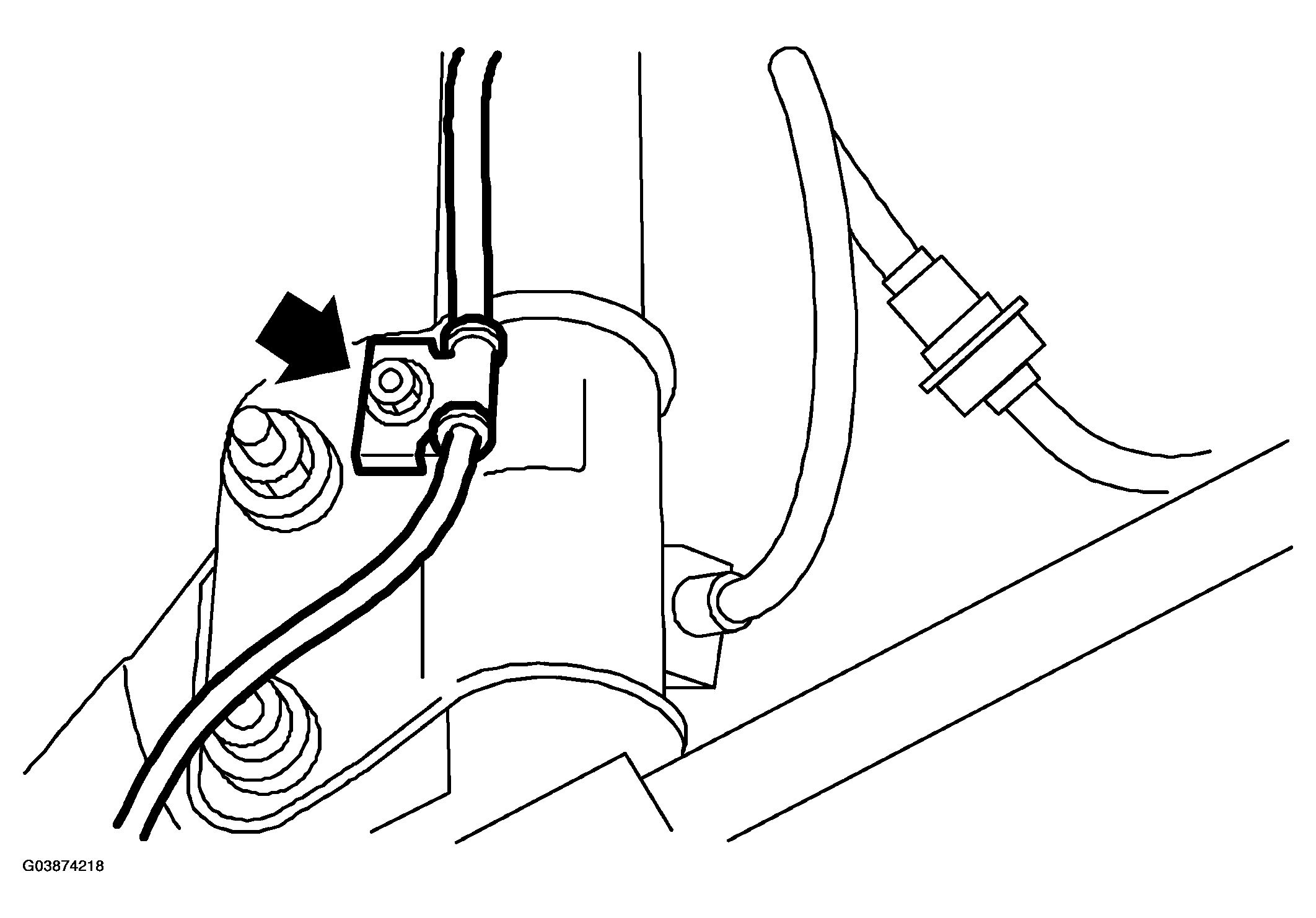

Fig 3: Removing Front ABS Wheel Speed Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.
