ABS Control Module and Hydraulic Control Unit (ABSCM&H-U): Installation
Install the ABSCM&H/U bracket.
Tightening torque:
33 Nm (3.3 kgf-m, 24 ft-lb)

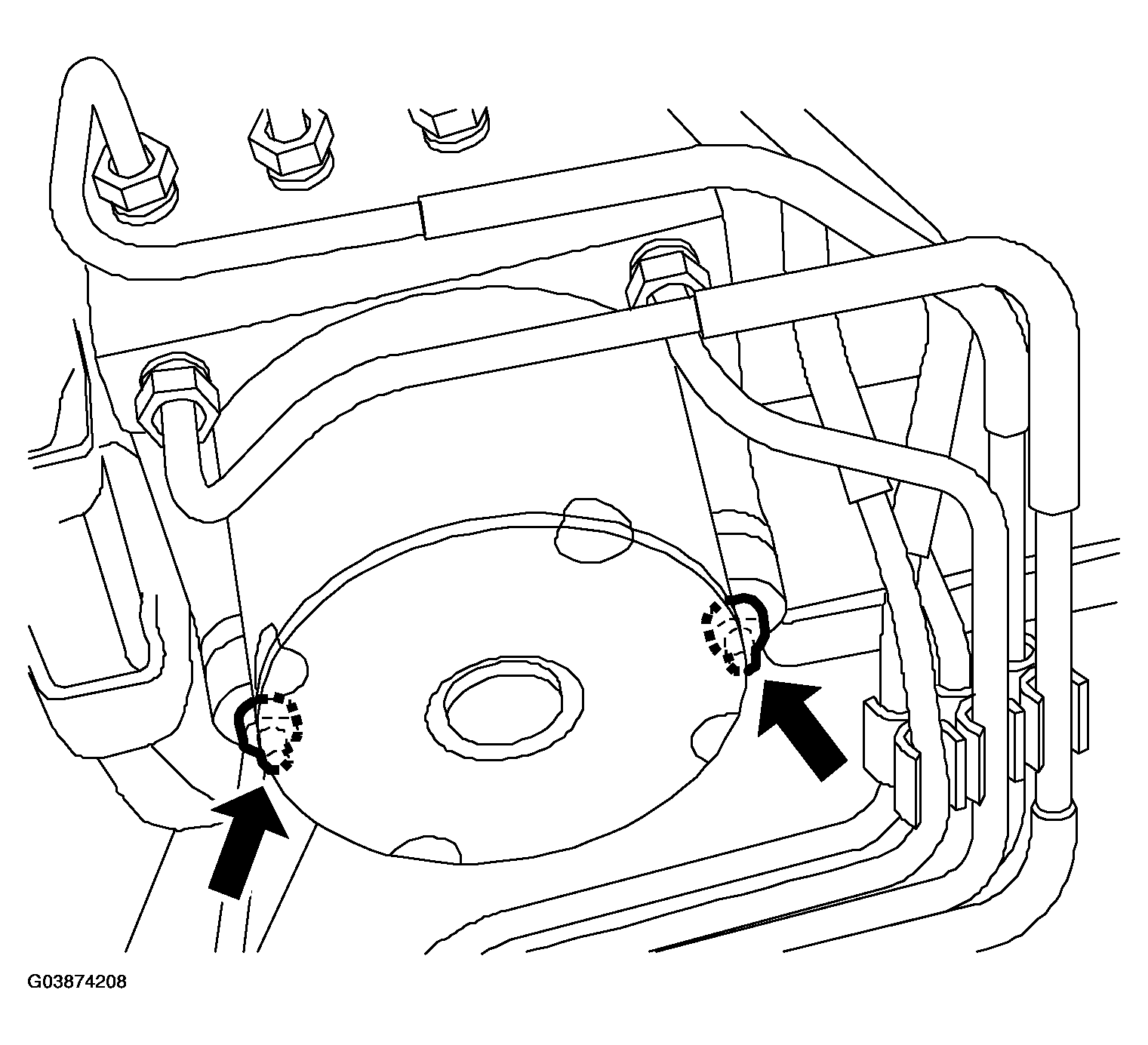

Install the ABSCM&H/U aligning the groove of damper on ABSCM&H/U side with the pawl of bracket.
NOTE:
Check the identification mark of ABSCM&H/U.
Tightening torque:
7.5 Nm (0.76 kgf-m, 5.5 ft-lb)
Connect the brake pipes to their correct ABSCM&H/U connections.
Tightening torque:
15 Nm (1.5 kgf-m, 10.8 ft -lb)
Using the cable clip, secure the ABSCM&H/U harness to bracket.
Connect the connector to ABSCM&H/U.
NOTE:
- Be sure to remove all foreign matter from inside of the connector before connecting.
- Ensure that the ABSCM&H/U connector is securely locked.
Connect the ground cable to ABSCM&H/U, and then apply anti-corrosive wax.
Install the air cleaner case and air intake duct.
Bleed air from the brake system.
