Front Door Glass: Removal

Remove the front door trim.

Remove the sealing cover.

Remove the outer mirror assembly.

Remove the mirror gusset.

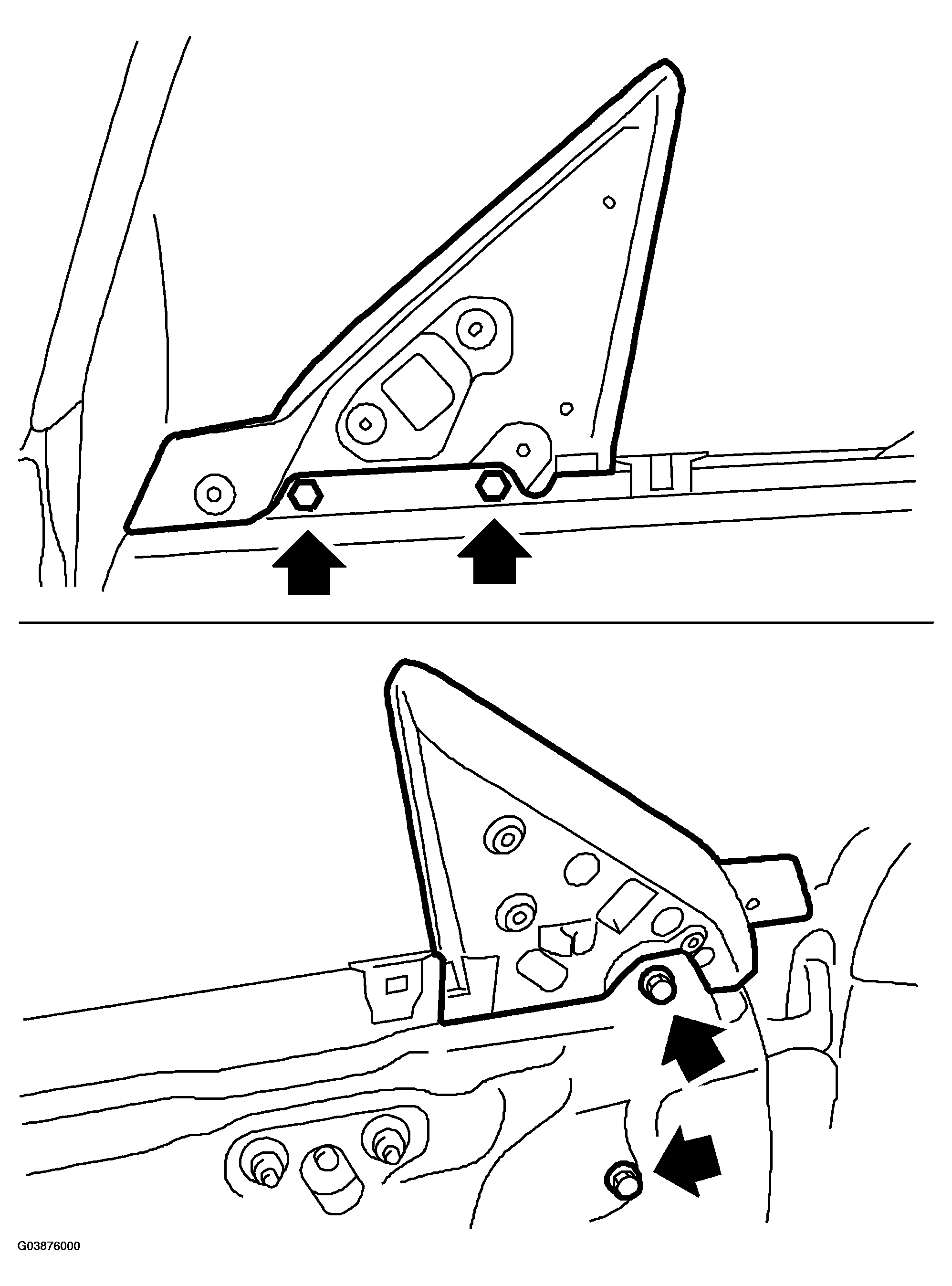

Fig 1: Removing Mirror Gusset

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the stabilizer (Inner) and stabilizer (Outer).

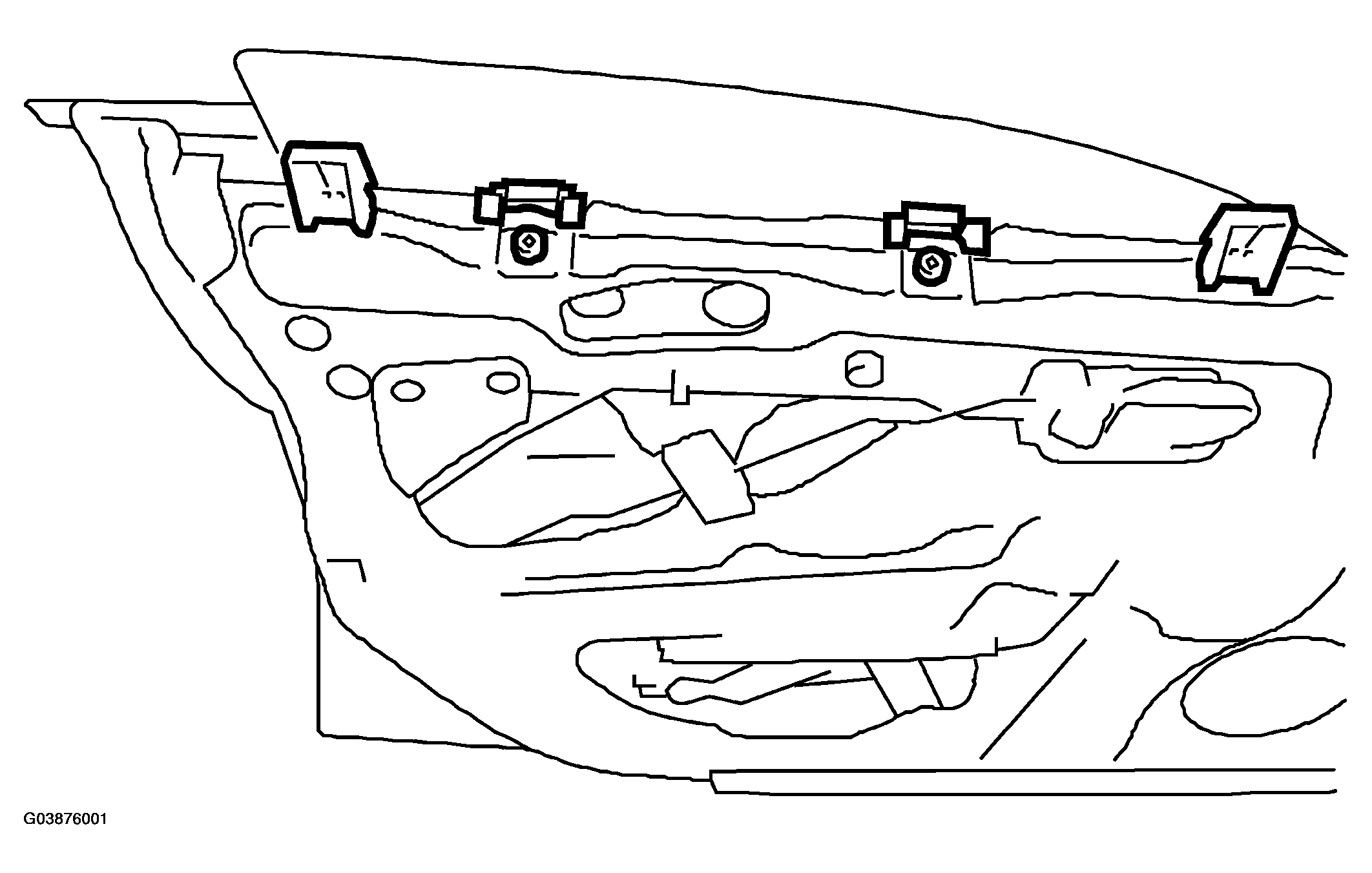

Fig 2: Removing Stabilizer (Inner) And Stabilizer (Outer)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the screw at the rear end of weather strip, and remove weather strip.

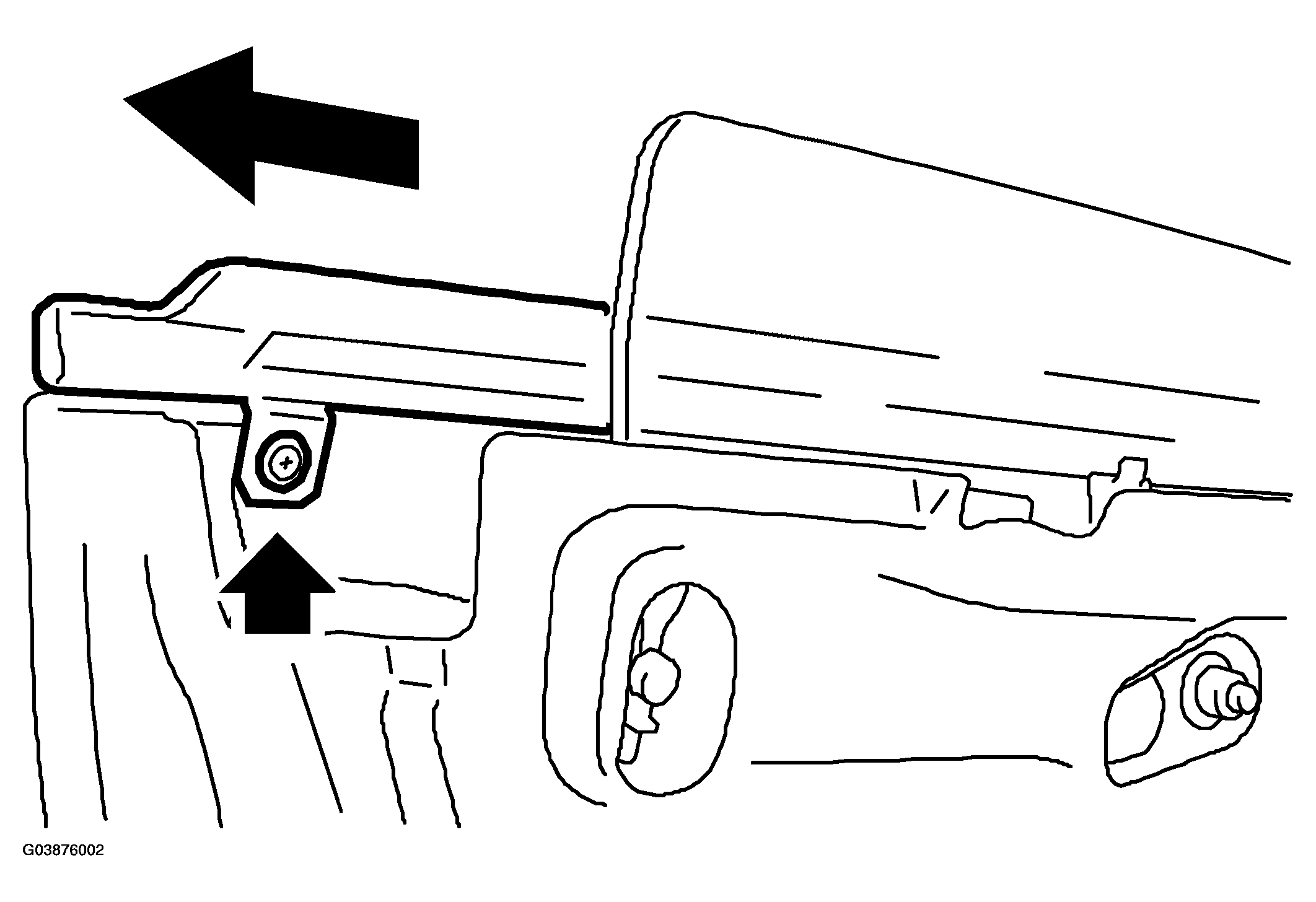

Fig 3: Removing Rear End Of Weather Strip Screw

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Operate the power window switch to move the glass to position shown in the figure, and then remove the two nuts from service holes.

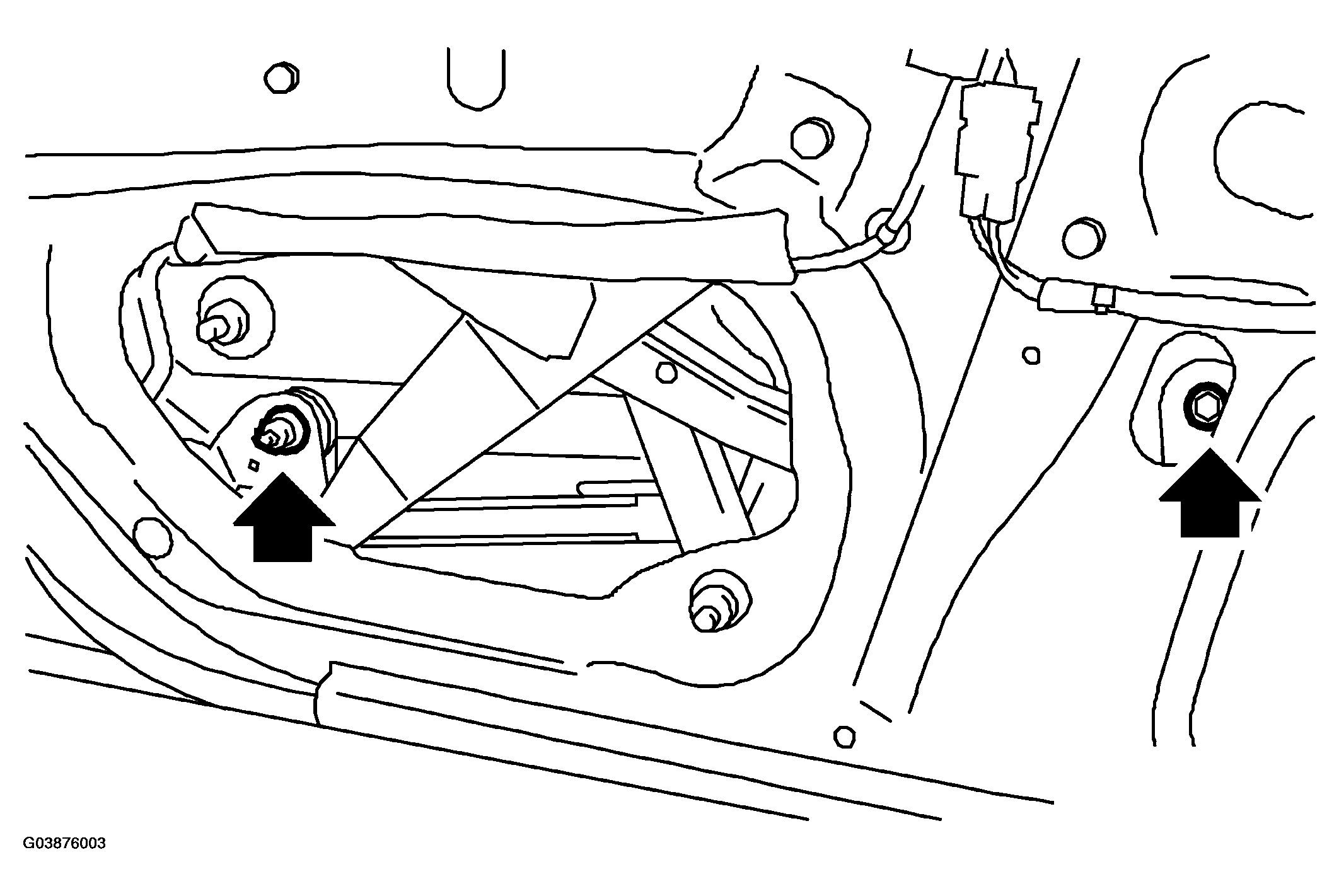

Fig 4: Removing Two Nuts From Service Holes

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Take out the door glass.

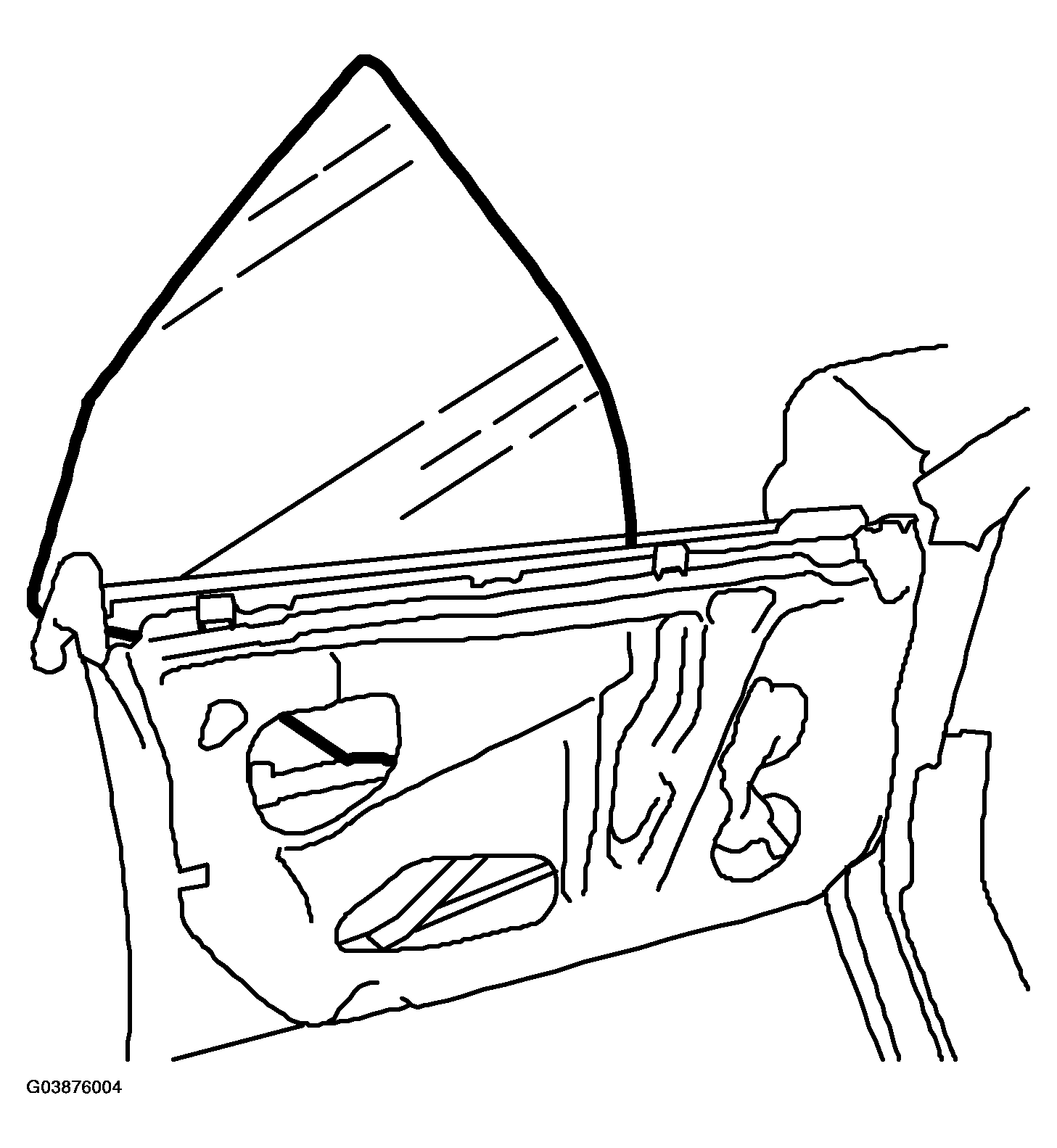

Fig 5: Removing Door Glass

Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT:

Do not turn the regulator in closing direction after removal of the glass. Otherwise gear may be disengaged.
Avoid impact and damage to the glass.
