Front Door Glass: Adjustment

NOTE: Before adjustment, ensure that all adjusting nuts of stabilizer (inner), upper stopper, and sash are loosened and door glass is raised so that it is in contact with weather strip.

Temporarily tighten one adjusting bolt on one side of rear sash at the midpoint of slotted hole in the inner panel.

Temporarily tighten the regulator B-channel in a position at the top of slotted hole.

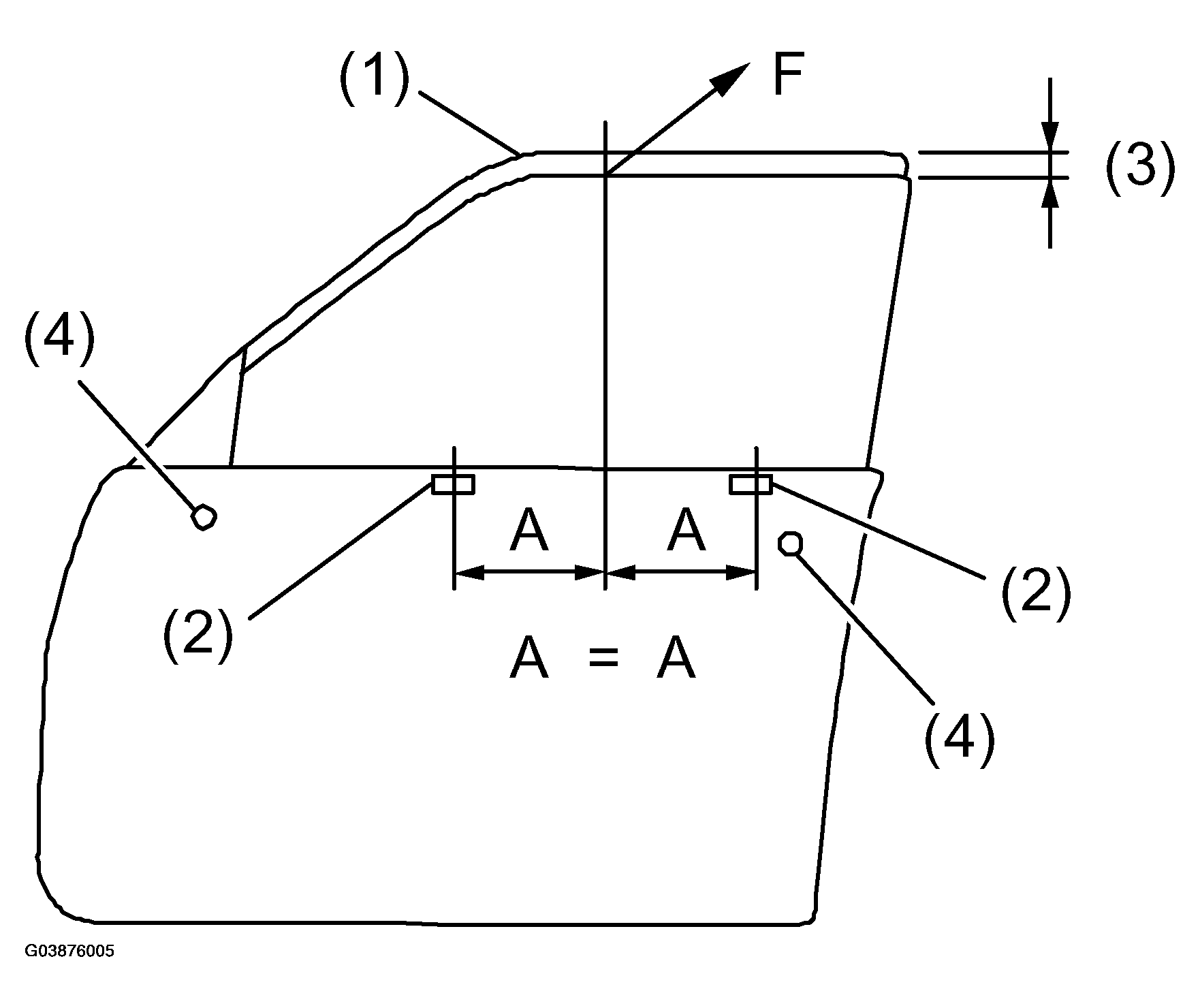

Lower the door glass 10 to 15 mm (0.39 to 0.59 in) from fully closed position. While applying outward pressure of 45.0+/-5.0 N (4.5+/-0.5 kgf, 9.9+/-1.1 lb) (F) to the upper edge of glass above midpoint of stabilizer (Outer), press the stabilizer (Inner) at pressure of 30+/-5 N (3.0+/-0.5 kgf, 6.6+/-1.1 lb) to the glass, then secure it.

Fig 1: Tightening Regulator B-Channel In Position At Top Of Slotted Hole

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Full close position
Stabilizer (Outer)
10 - 15 mm (0.39 - 0.59 in)
Upper stopper

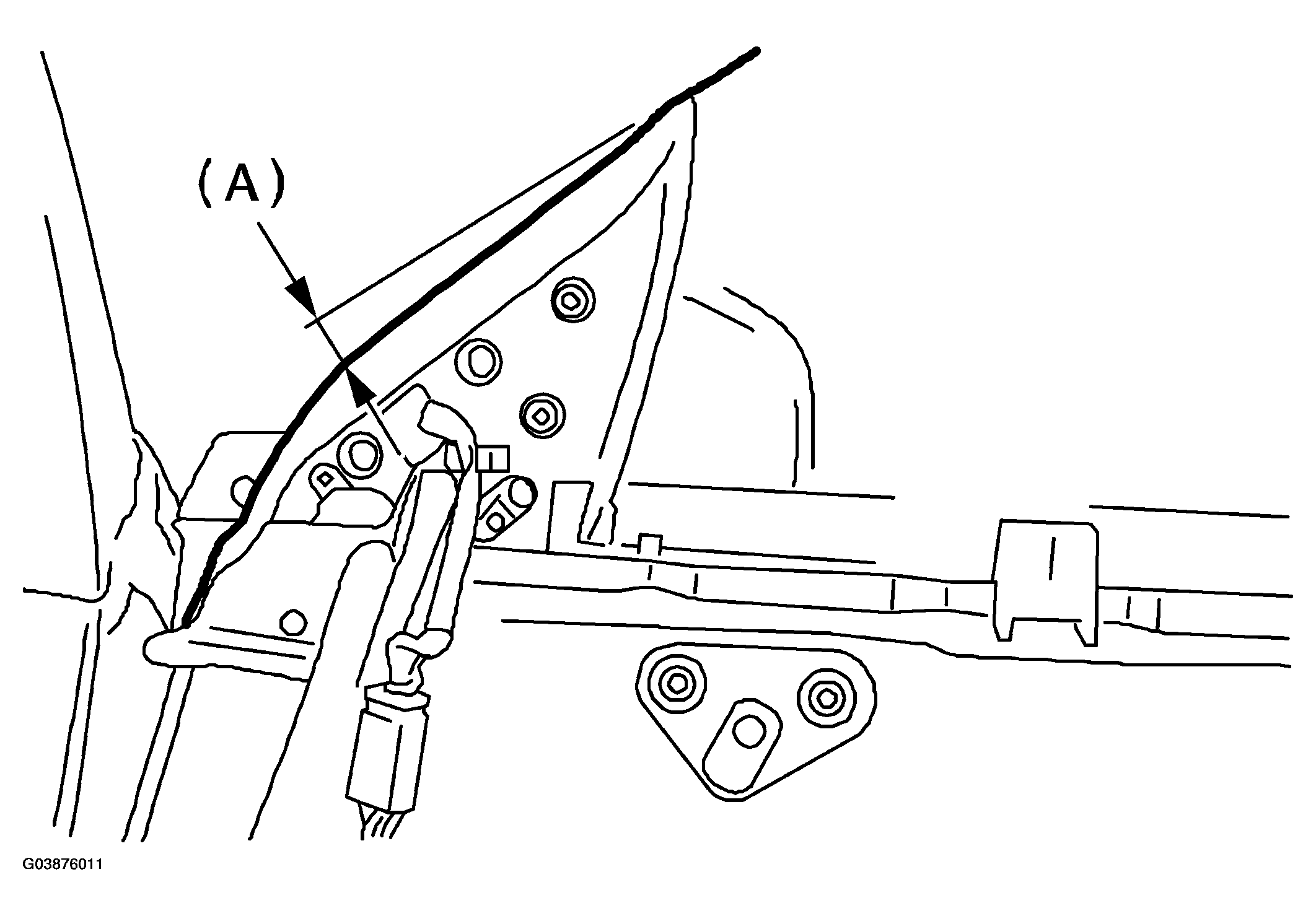

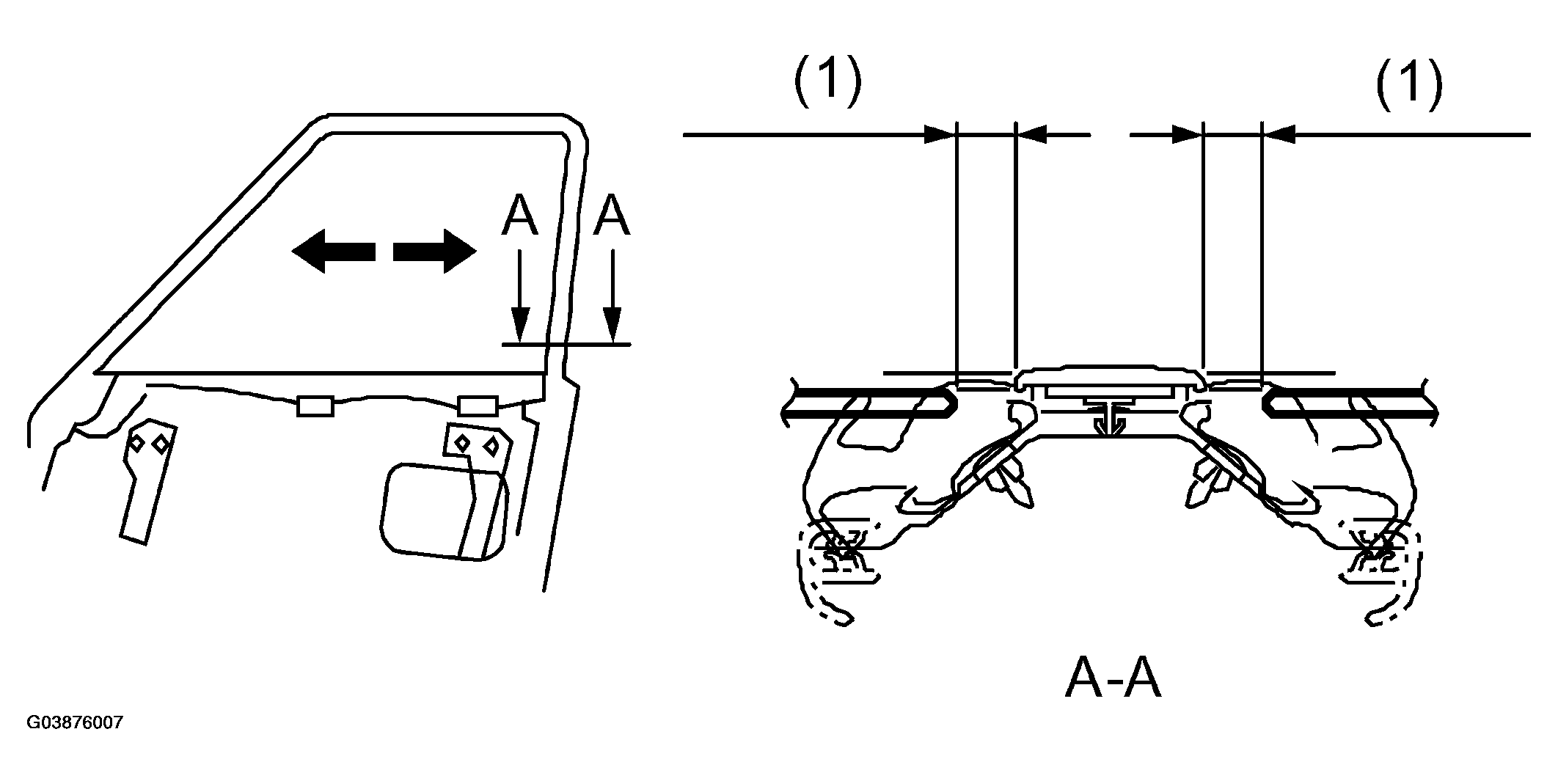

For adjustment of clearance between front glass and center pillar cover, loosen the nuts (A), and move the glass sash back and forward until clearance becomes the value shown.

Fig 2: Adjusting Clearance Between Front Glass And Center Pillar Cover (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 3: Adjusting Clearance Between Front Glass And Center Pillar Cover (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

12 mm (0.472 in)

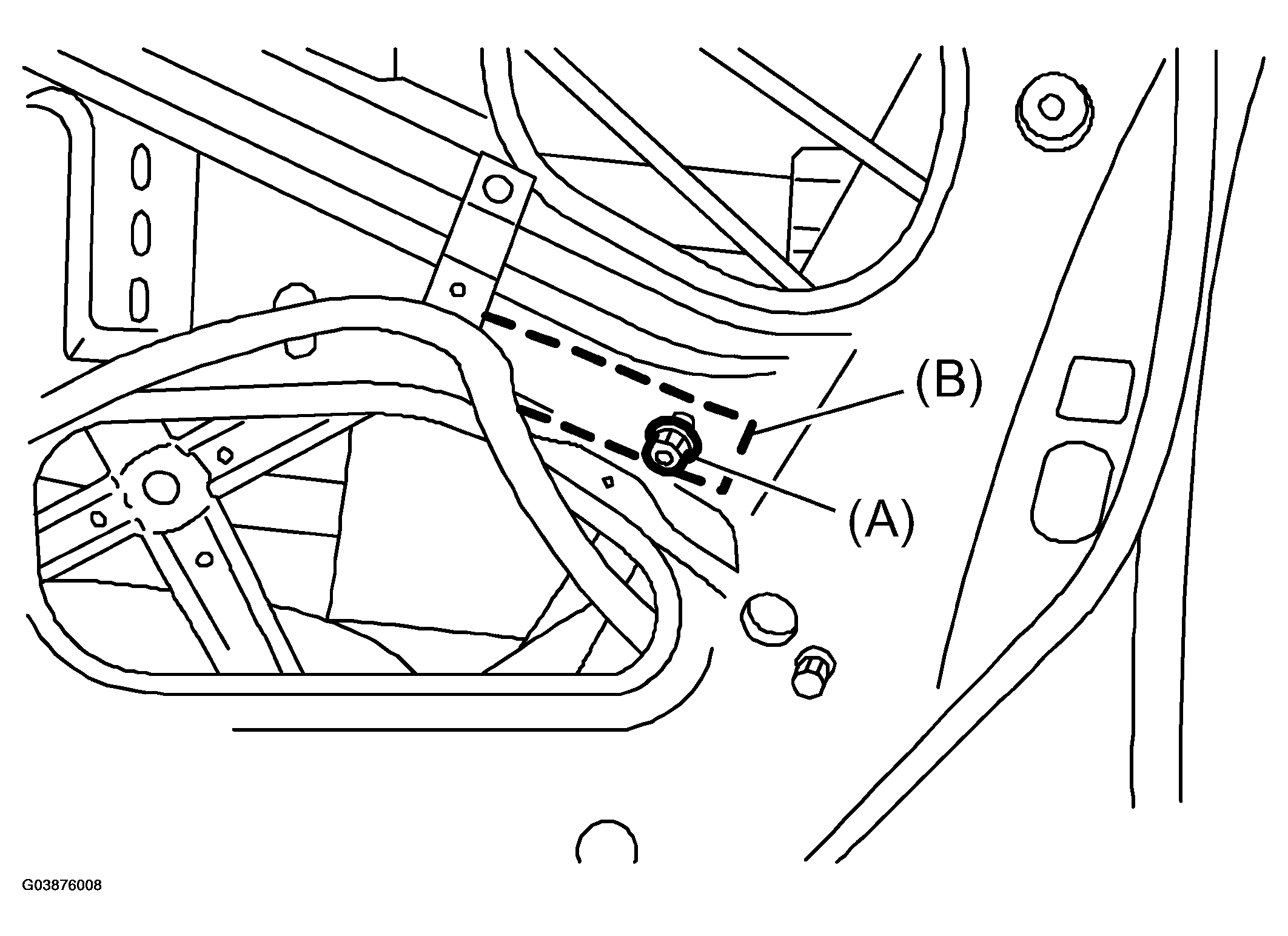

For adjustment of upper and lower ends of center pillar, loosen the adjusting nut (A) of B-channel (B).

Fig 4: Adjusting Upper And Lower Ends Of Center Pillar (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

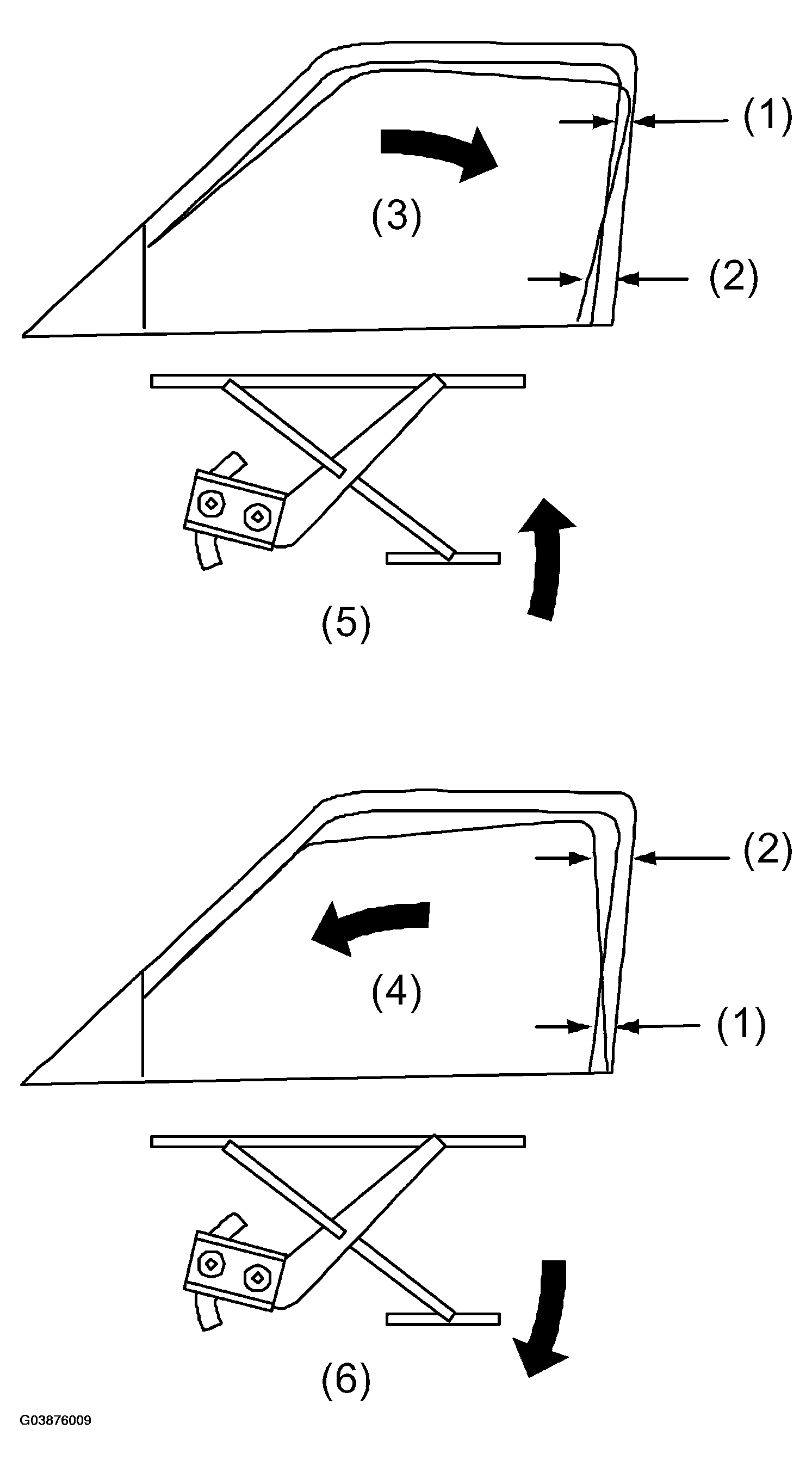

Adjust so that the upper and lower ends of center pillar are the same size.

Fig 5: Adjusting Upper And Lower Ends Of Center Pillar (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Narrow
Wide
Glass tilts too far rearward
Glass tilts too far forward
Raise B channel
Lower B channel

For glass stroke adjustment, set the ST on glass and close the door, raise glass until positional relationship between glass and weather strip becomes as shown. And secure the glass so that the upper stopper lightly touches the glass holder.

ST 32005171 SPACER (For front door glass of thickness 5 mm (0.197 in))

Fig 6: Adjusting Glass Stroke

Courtesy of SAAB-SCANIA OF AMERICA, INC.

2.7 - 4.3 mm (0.106 - 0.169 in)
4 - 6 mm (0.157 - 0.236 in)
ST

For preventing wind noise, adjust the glass at the position where tip of gusset is raised up a little.

Fig 7: Adjusting Glass Position

Courtesy of SAAB-SCANIA OF AMERICA, INC.

0 - 1.5 mm (0 - 0.059 in)

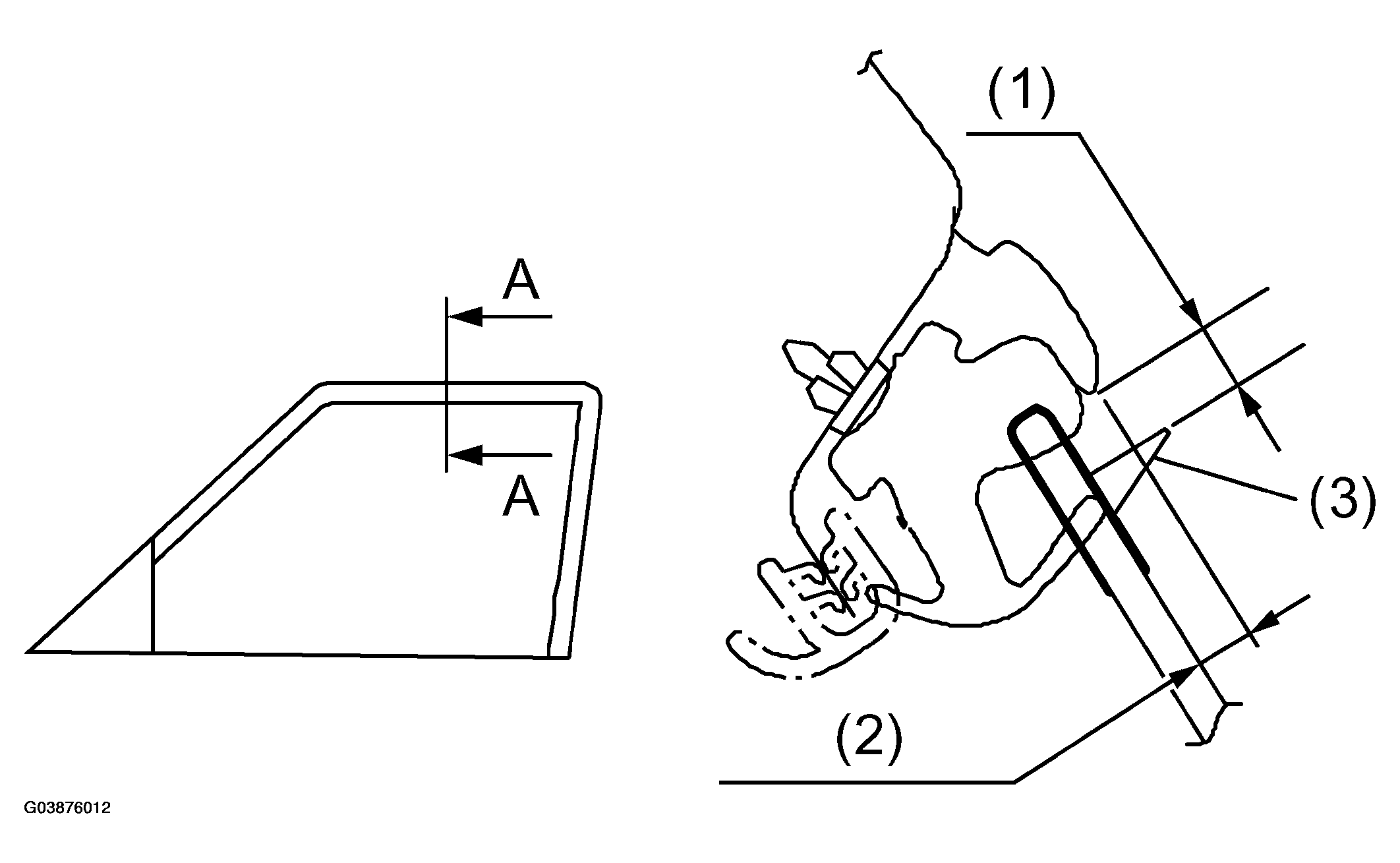

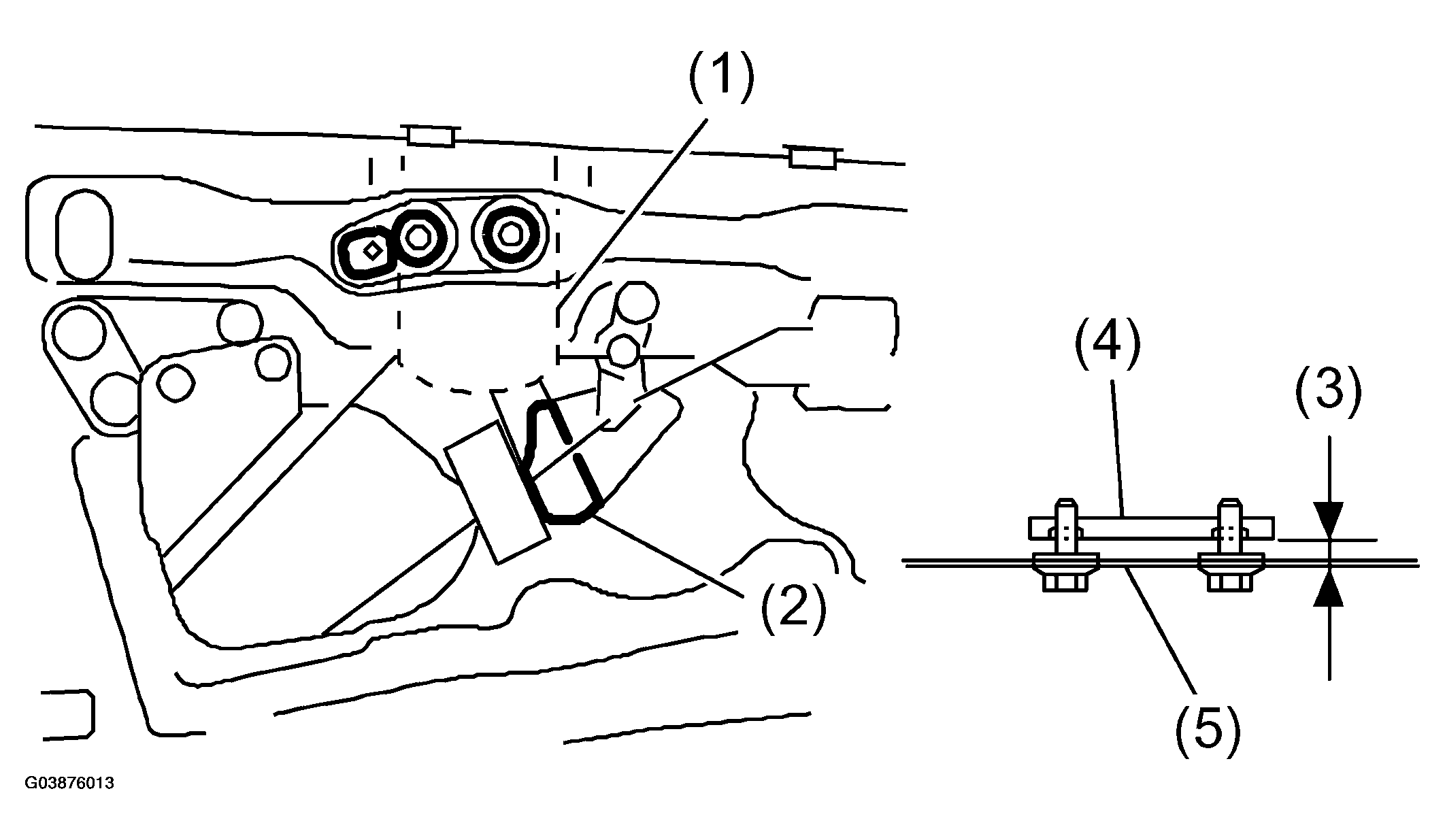

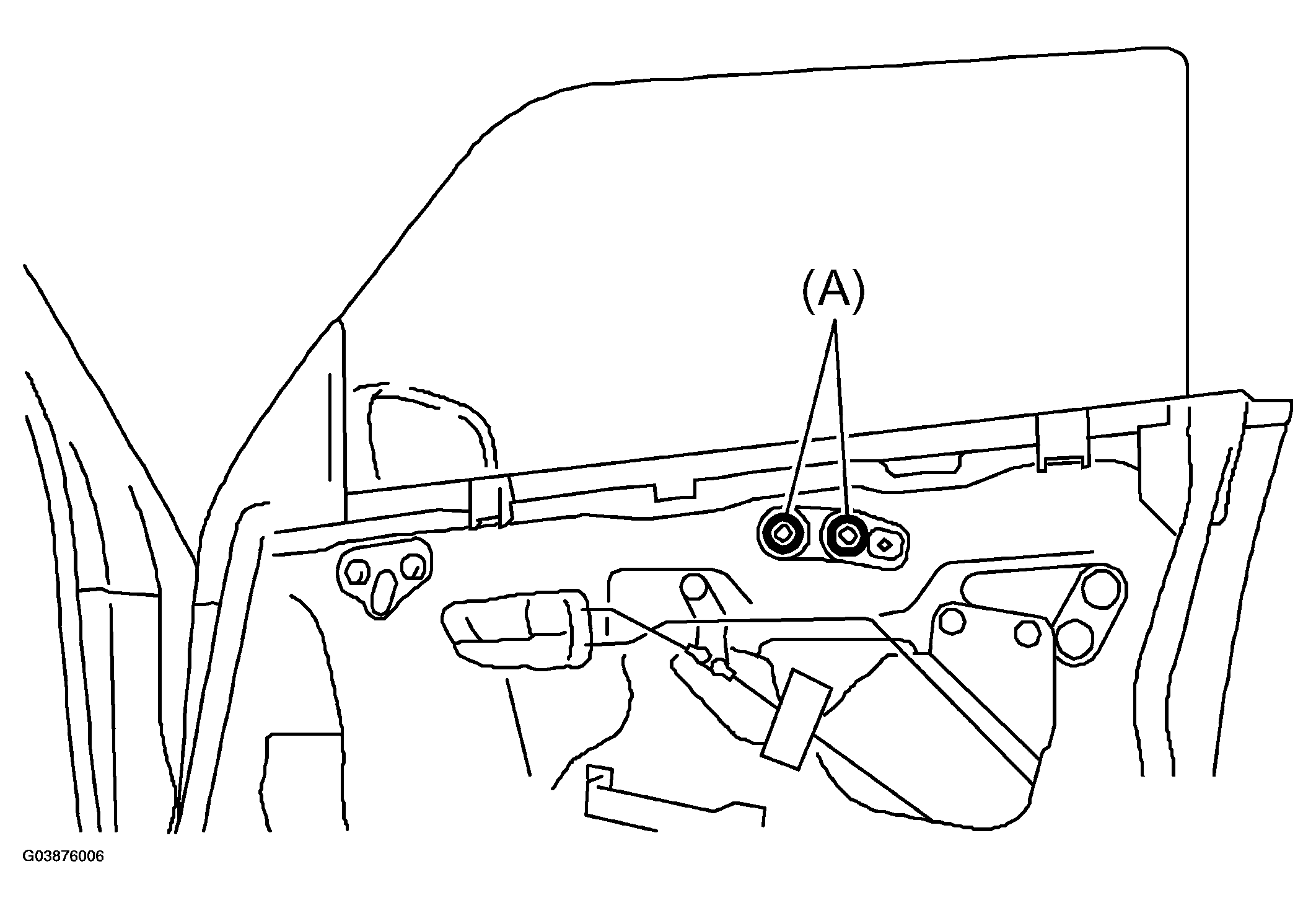

After stabilizer adjustment, carry out the glass crimp adjustment. First, visually ensure positional relationship between retainer & molding and glass of the roof side, and then begin with rear sash adjustment. Set the ST on glass, and then adjust two adjusting bolts alternately step by step to obtain dimensions shown below (cross-section A).

ST 32005171 SPACER (For front door glass of thickness 5 mm (0.197 in))

NOTE: If two nuts are loosened at the same time, sash moves back and forth. Therefore, when one nut is adjusted, leave the other secured.

Make the same adjustment of two adjusting bolts of rear sash.

Fig 8: Adjusting Glass Stroke

Courtesy of SAAB-SCANIA OF AMERICA, INC.

2.7 - 4.3 mm (0.106 - 0.169 in)
4 - 6 mm (0.157 - 0.236 in)
ST

NOTE: Do not tilt the sash bracket to inner panel during adjustment. Otherwise smooth regulator operation cannot be achieved.

Fig 9: Adjusting Sash Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Sash bracket
Rear sash
Adjust a line parallel
Sash
Inner panel

Make adjustment of front sash in the same manner as that of rear sash.

NOTE: Although front and rear sashes must, as a rule, be adjusted in the same manner, in some door installation, the adjustment in a different manner may be required. However, adjustment of one sash to the maximum amount and the other to the minimum amount is not permitted. Such adjustment may result in application of excessive load to regulator.

After adjustments, tighten the nuts.

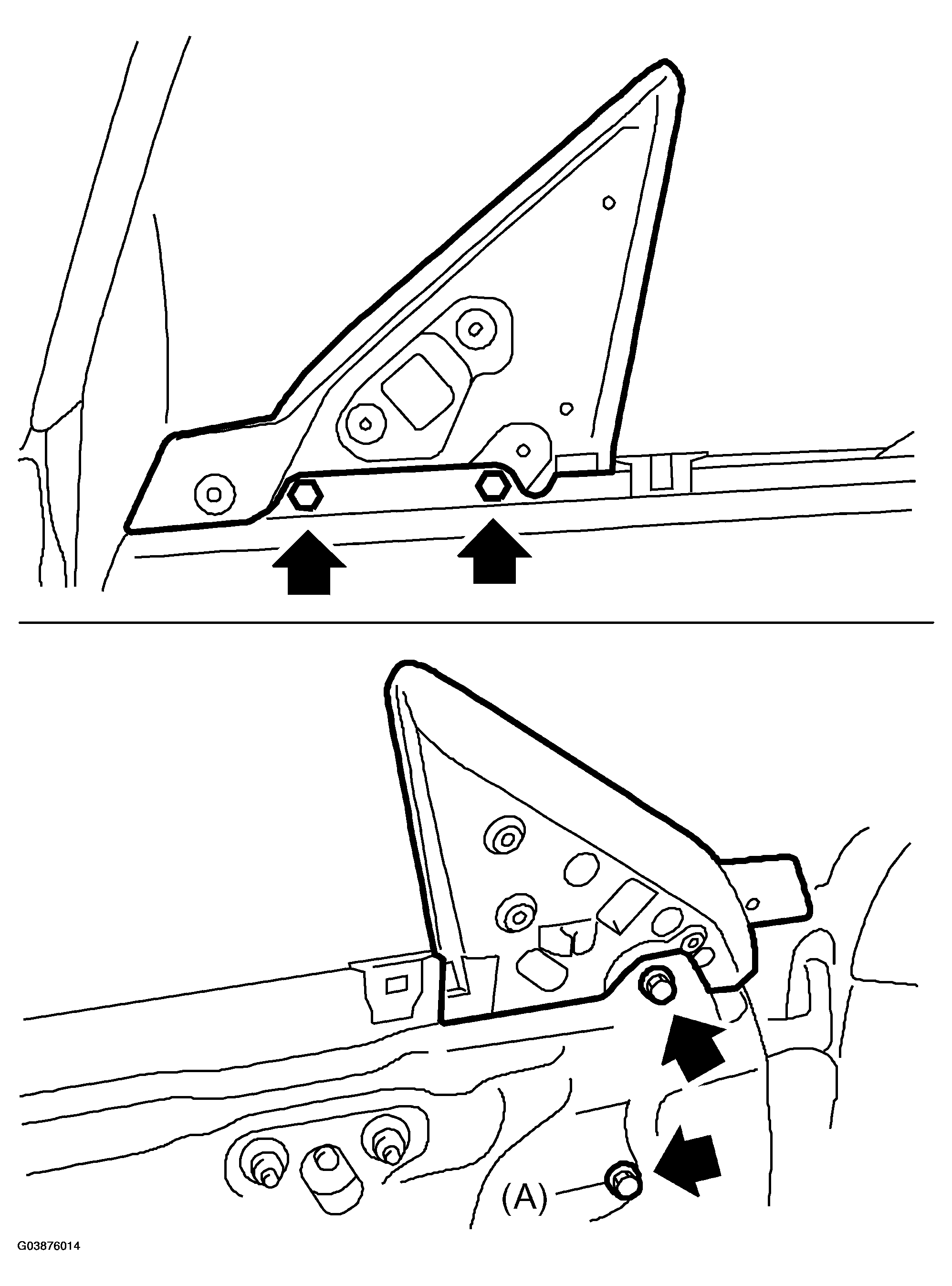

After adjustment to glass, close the door. If there is a gap between outer lip of gusset and glass surface, adjust the gap with adjusting bolt (A) in lower fitting part of the gusset to prevent generation of wind noise.

During adjustments, loosen the other three clamping bolts.

Fig 10: Adjusting Gap Between Outer Lip Of Gusset And Glass Surface

Courtesy of SAAB-SCANIA OF AMERICA, INC.

After adjustment, tighten the bolts and nuts.
