Front Seat

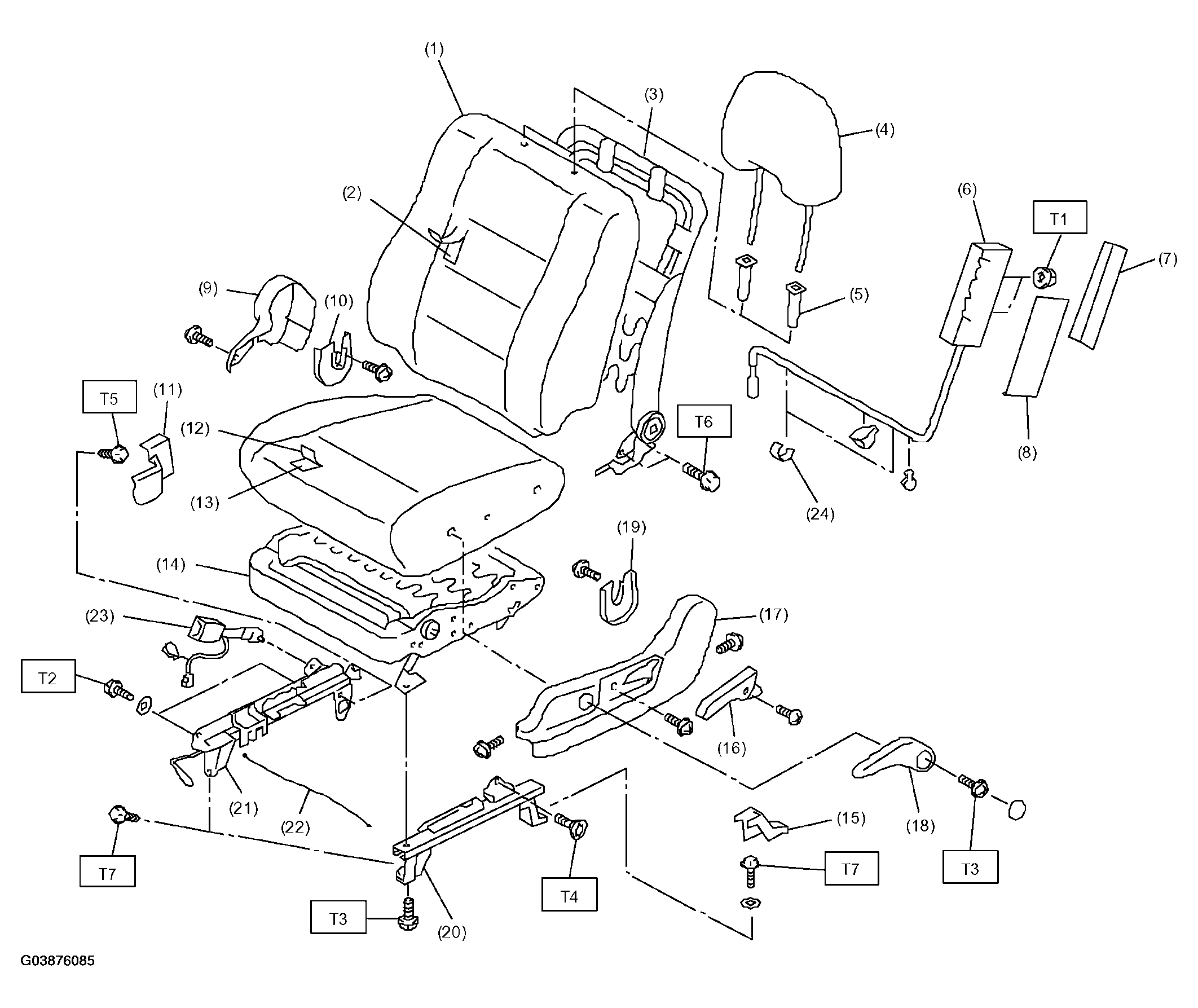

Fig 1: Illustration For Steps 1-24

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Backrest cover
2. Backrest pad
3. Backrest frame ASSY
4. Headrest ASSY
5. Headrest lock bush
6. Side airbag module
7. Support pad (B)
8. Support pad (A)
9. Seat hinge inner cover
10. Seat hinge inner cover RH
11. Bolt cover RH
12. Seat cushion cover
13. Seat cushion pad
14. Seat cushion frame ASSY
15. Bolt cover LH
16. Reclining lever
17. Seat hinge outer cover
18. Lifter lever
19. Seat hinge inner cover LH
20. Outer slide rail
21. Inner slide rail
22. Connecting wire
23. Inner belt
24. Tape

Tightening torque: Nm (kgf-m, ft-lb)

T1: 5.9 (0.60, 4.35)

T2: 10 (1.02, 7.38)

T3: 17.7 (1.81, 13.1)

T4: 20 (2.04, 14.8)

T5: 30 (3.06, 22.1)

T6: 52 (5.30, 38.4)

T7: 53 (5.04, 39.1)
