Instrument Panel Assembly: Installation
IMPORTANT:
- Be careful not to snag the harness.
- Carry out installation checking that the harness is connected correctly.
- When setting the instrument panel into vehicle, do not damage trim panels.
Install in the reverse order of removal.
NOTE:

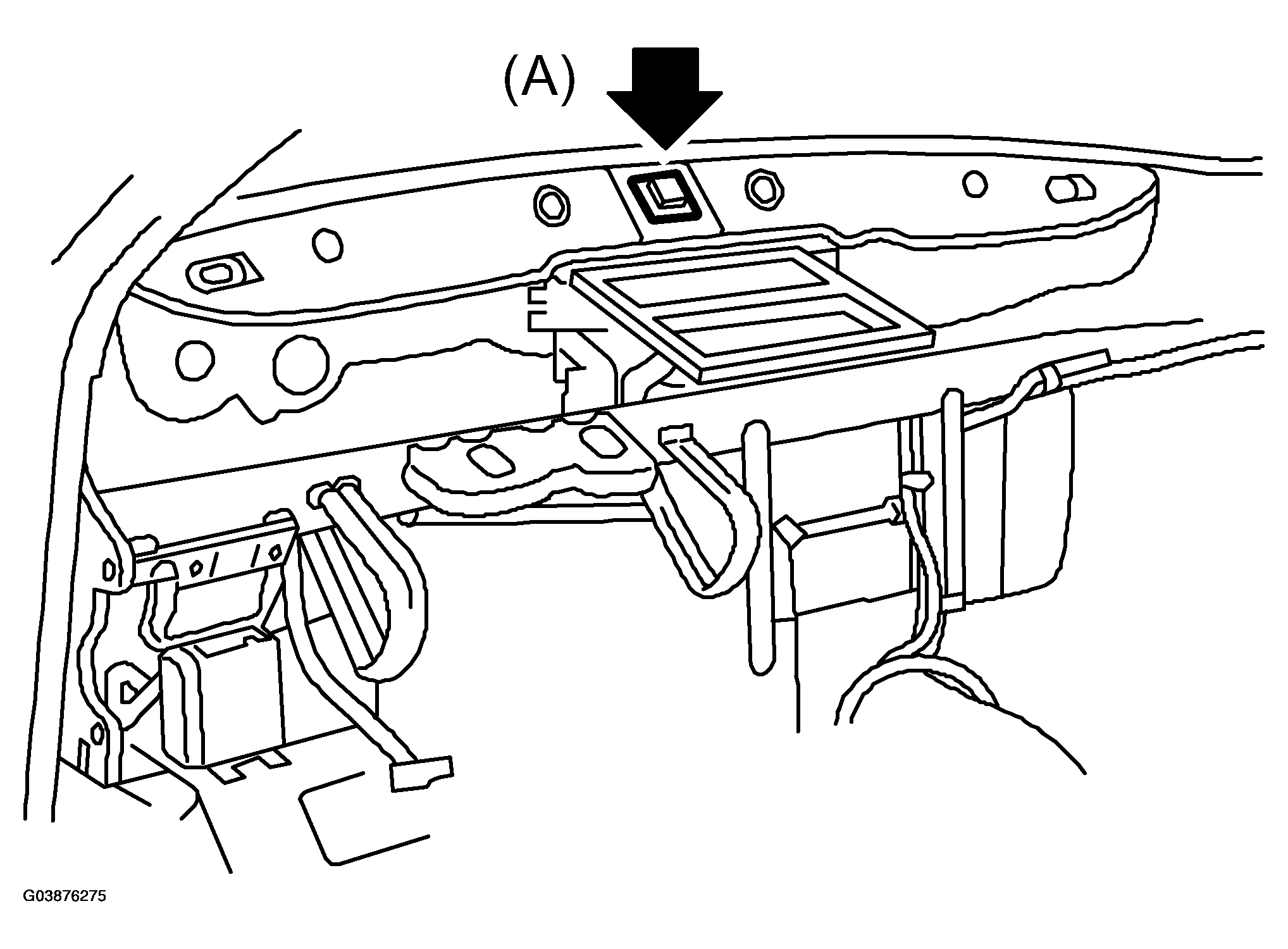

When installing the instrument panel into position, push the hook into grommet (A) on the body panel. After tightening the bolts, recheck the installation.
