Console Box: Removal

Disconnect the ground cable from battery.

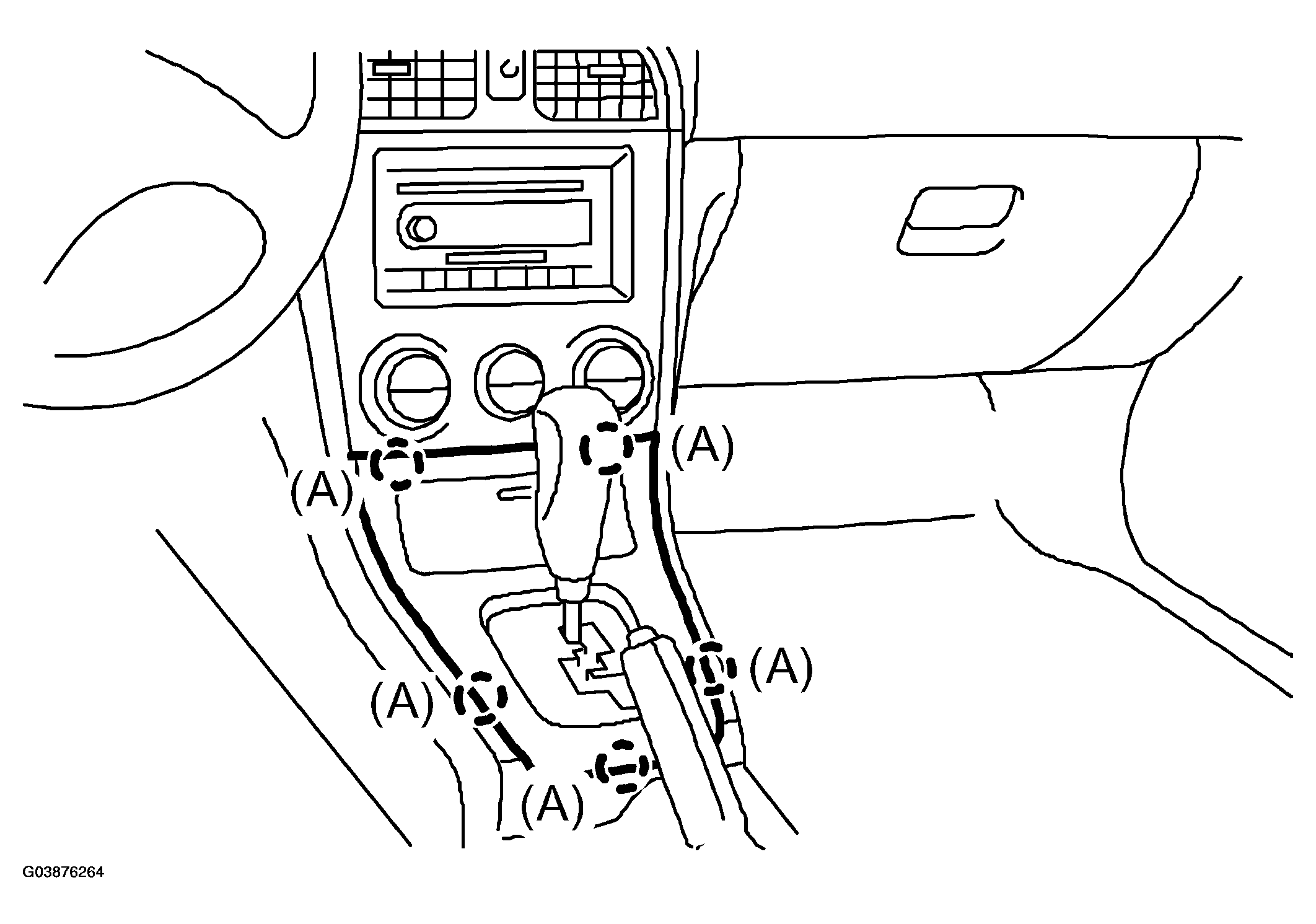

Remove the console front panel.

Fig 1: Removing Console Front Panel

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the shift knob (MT model).

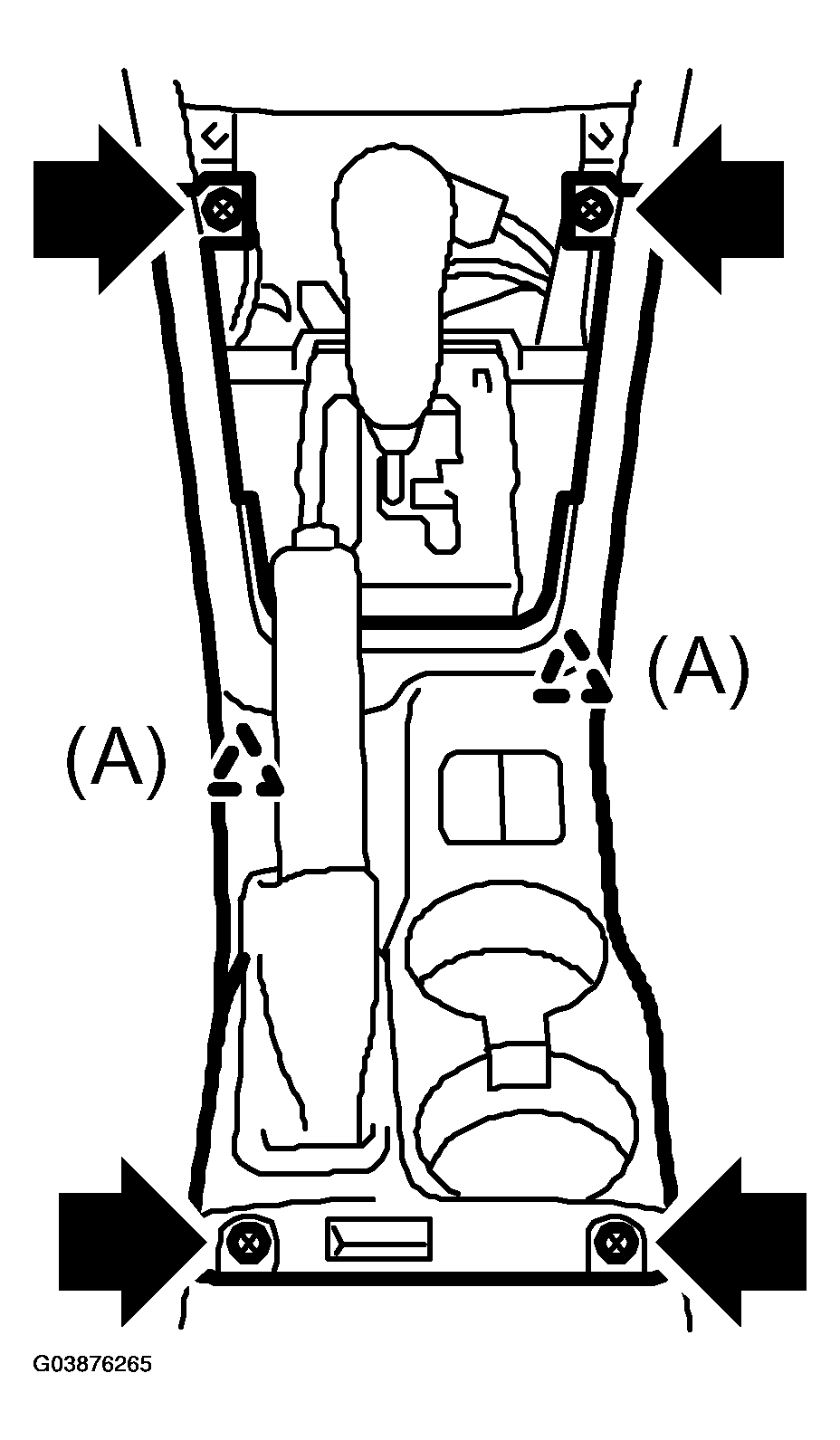

Remove the screws to remove console cover.

Fig 2: Removing Console Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

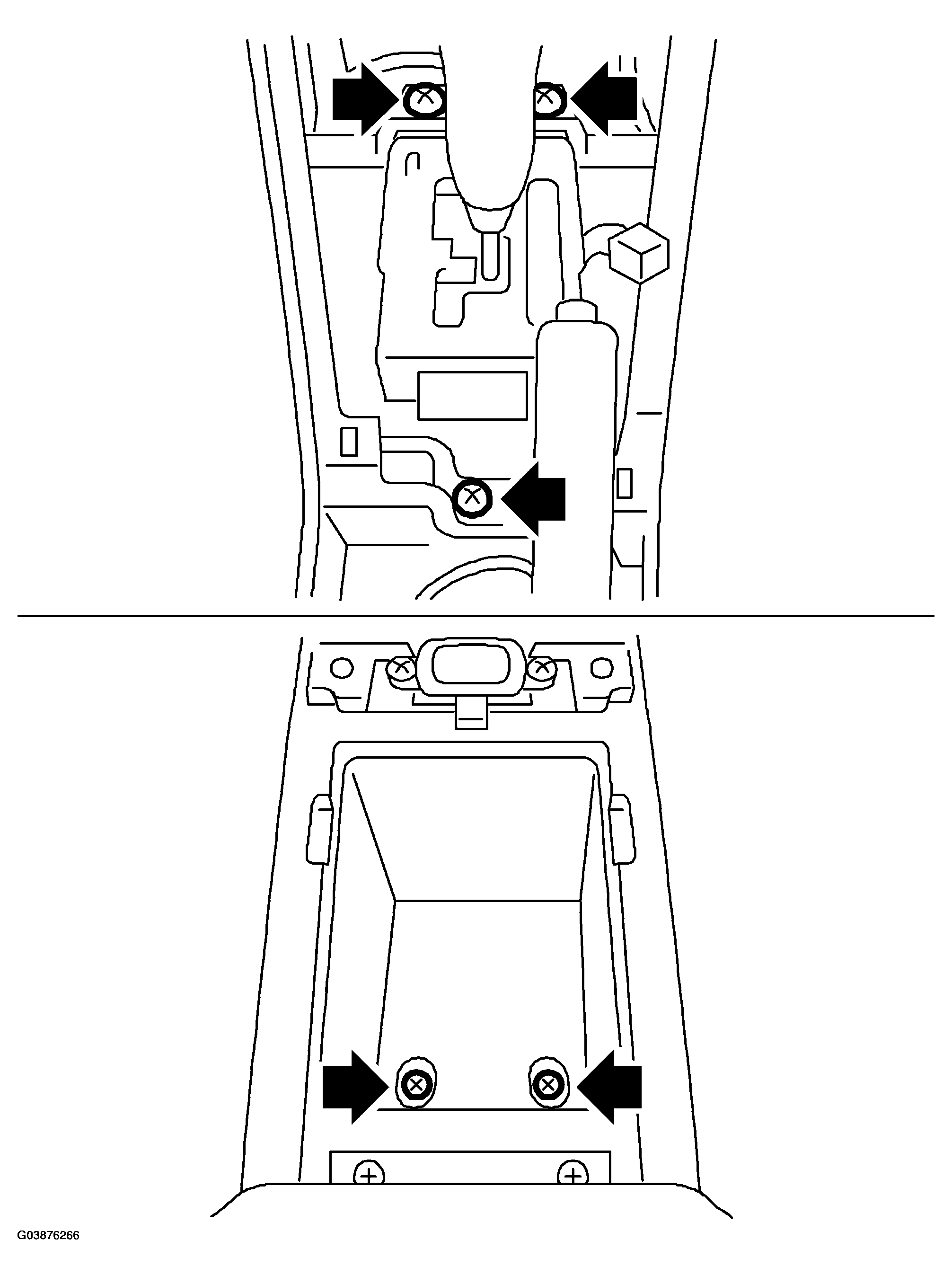

Remove the screws.

Fig 3: Removing Screws

Courtesy of SAAB-SCANIA OF AMERICA, INC.

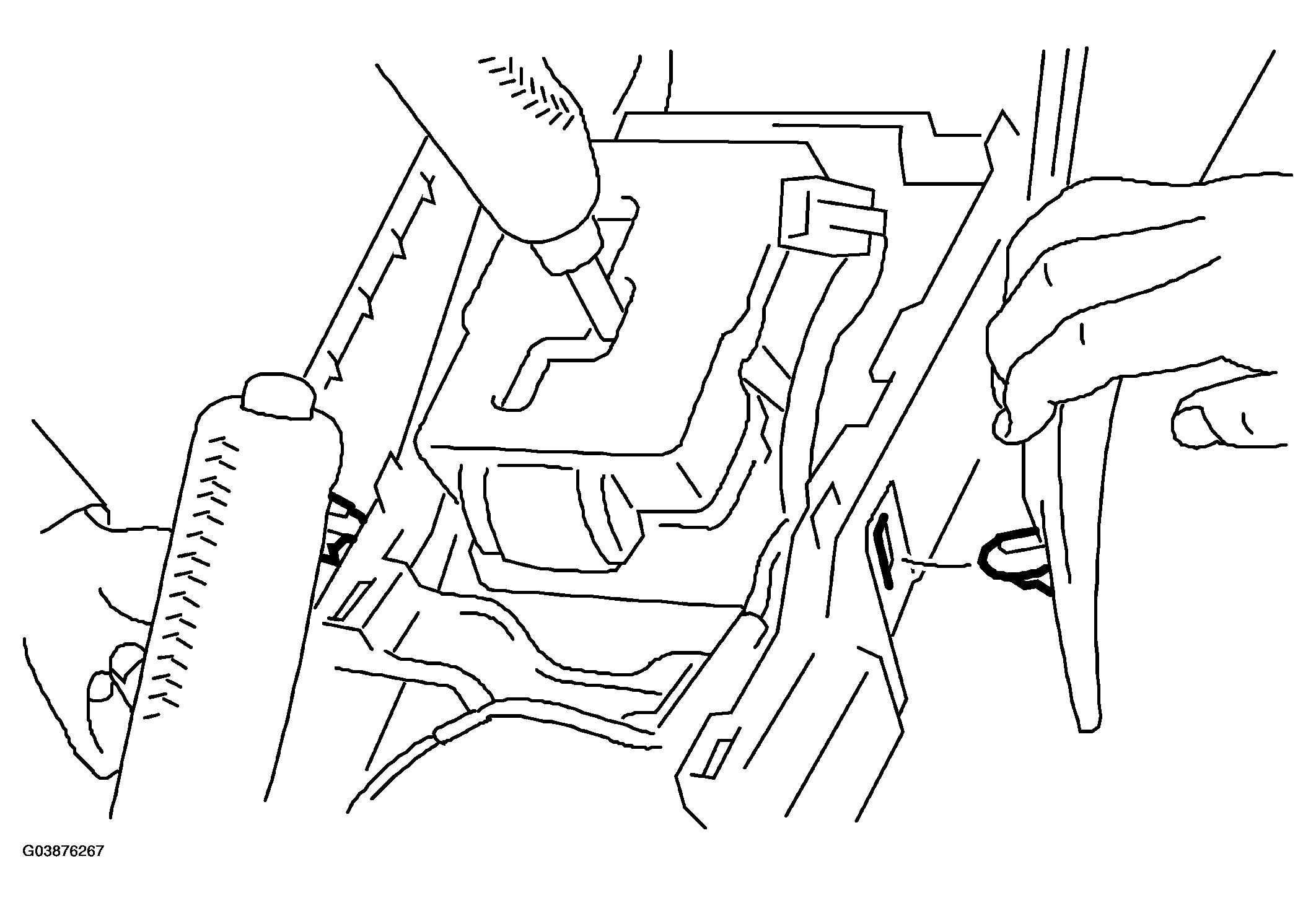

Remove the hook pawl of console side panel to remove console box.

Fig 4: Removing Hook Pawl Of Console Side Panel

Courtesy of SAAB-SCANIA OF AMERICA, INC.
