Console Box

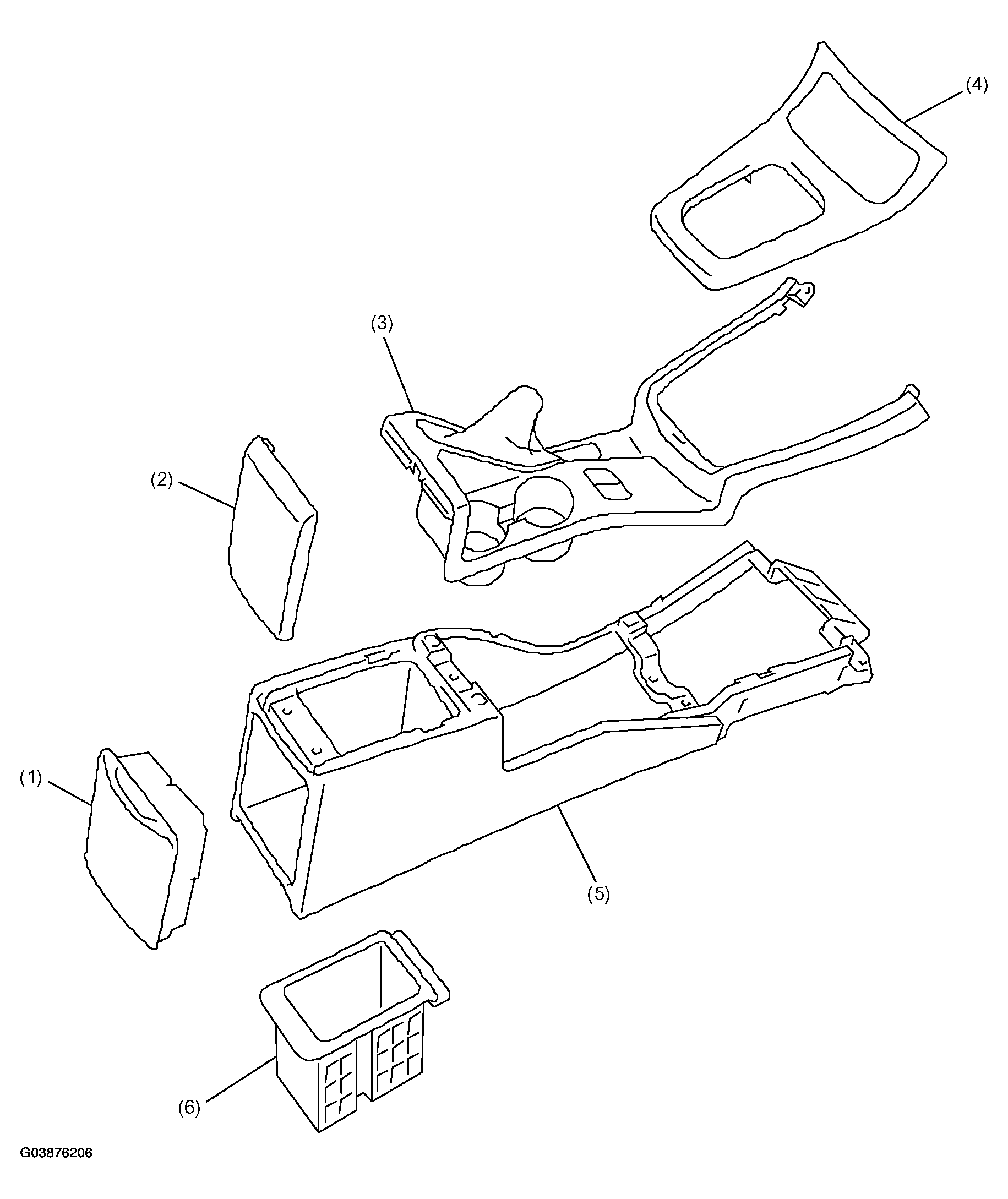

Fig 1: Illustration For Steps 1-6
G03876206Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Rear cup holders
  2. Console lid
  3. Console cover
  4. Console front panel
  5. Console box
  6. Console pocket
