Home >> Saab >> 2005 >> 9-2X Linear, 253, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security And Locks >> Removal/Installation/Inspection >> Security Control Unit >> Removal

Security Control Unit: Removal

Disconnect the ground cable from battery.

Remove the glove box.

Disconnect the connector from the security control unit.

Remove the security control unit.

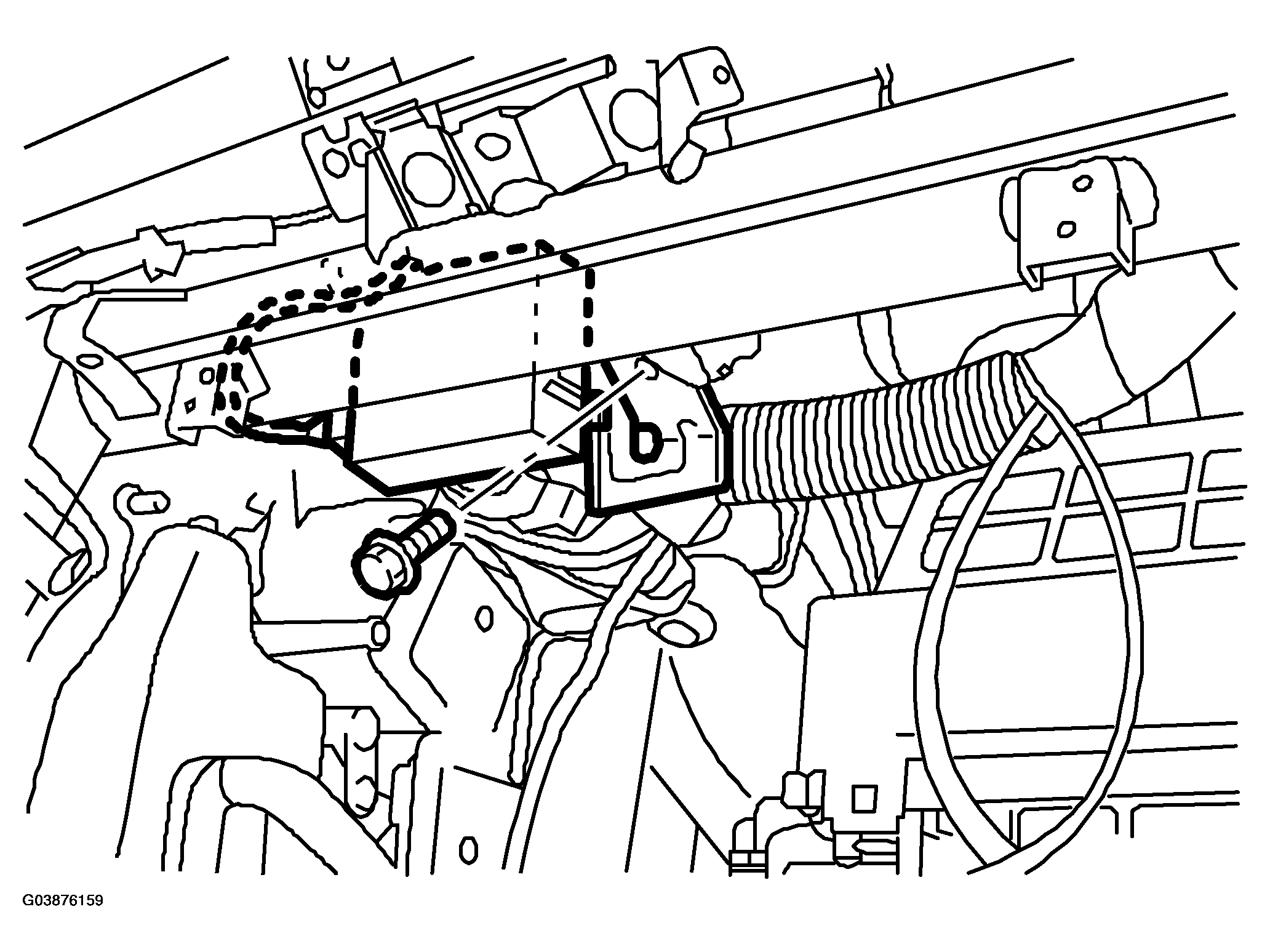

Fig 1: Removing Security Control Unit
G03876159Courtesy of SAAB-SCANIA OF AMERICA, INC.
