Keyless Transmitter Battery

Remove the screw from keyless transmitter, and then remove the battery.

NOTE: To prevent static electricity damage to keyless transmitter printed circuit board, touch the steel area of building with hand to discharge the static electricity carried on body or clothes before disassembling keyless transmitter.

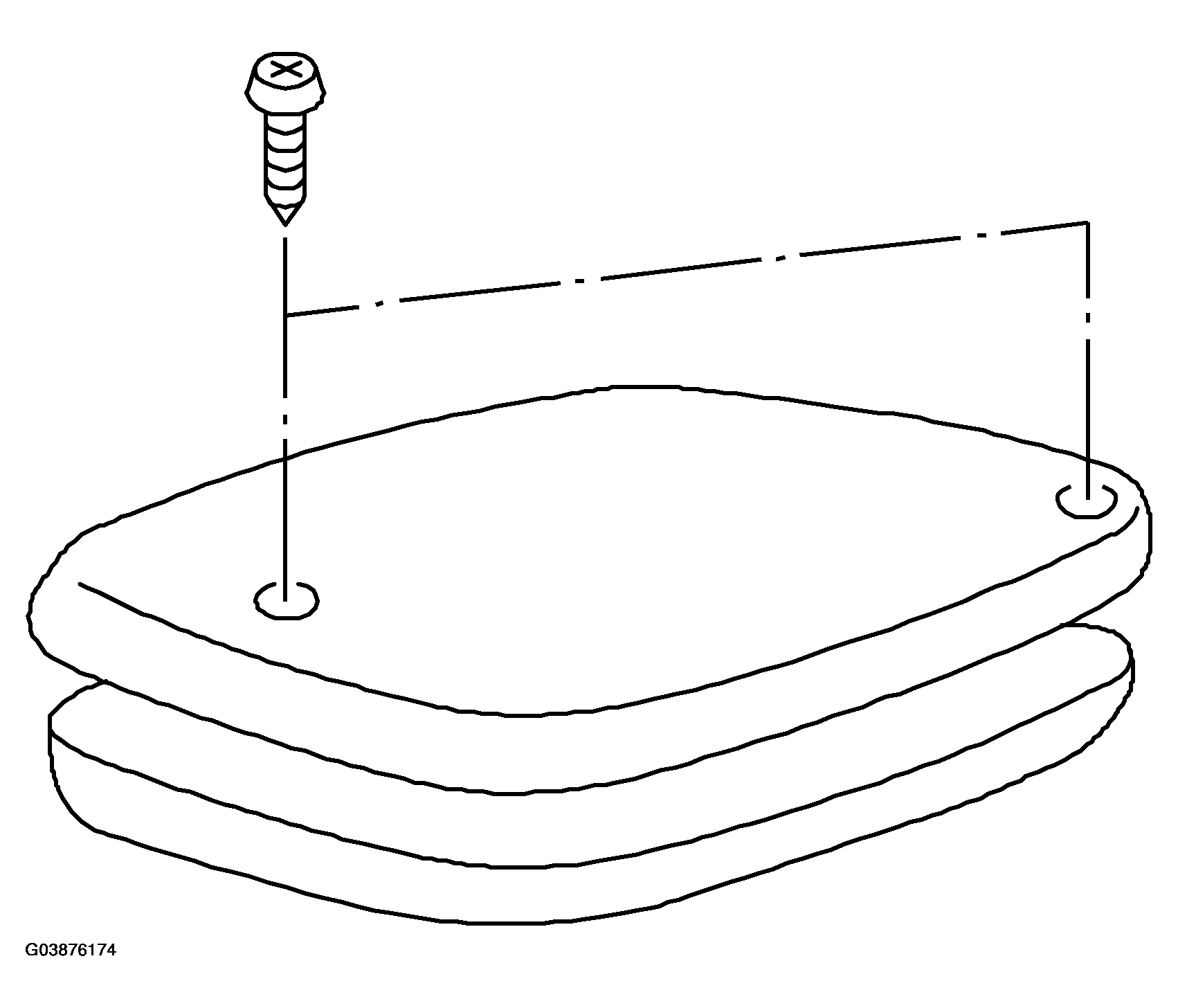

Fig 1: Removing Screw From Keyless Transmitter
G03876174Courtesy of SAAB-SCANIA OF AMERICA, INC.
