Ignition Key Lock: Replacement

Remove the ground cable from battery.

Remove the steering column.

Secure the steering column in a vise. Remove the bolt with a drill.

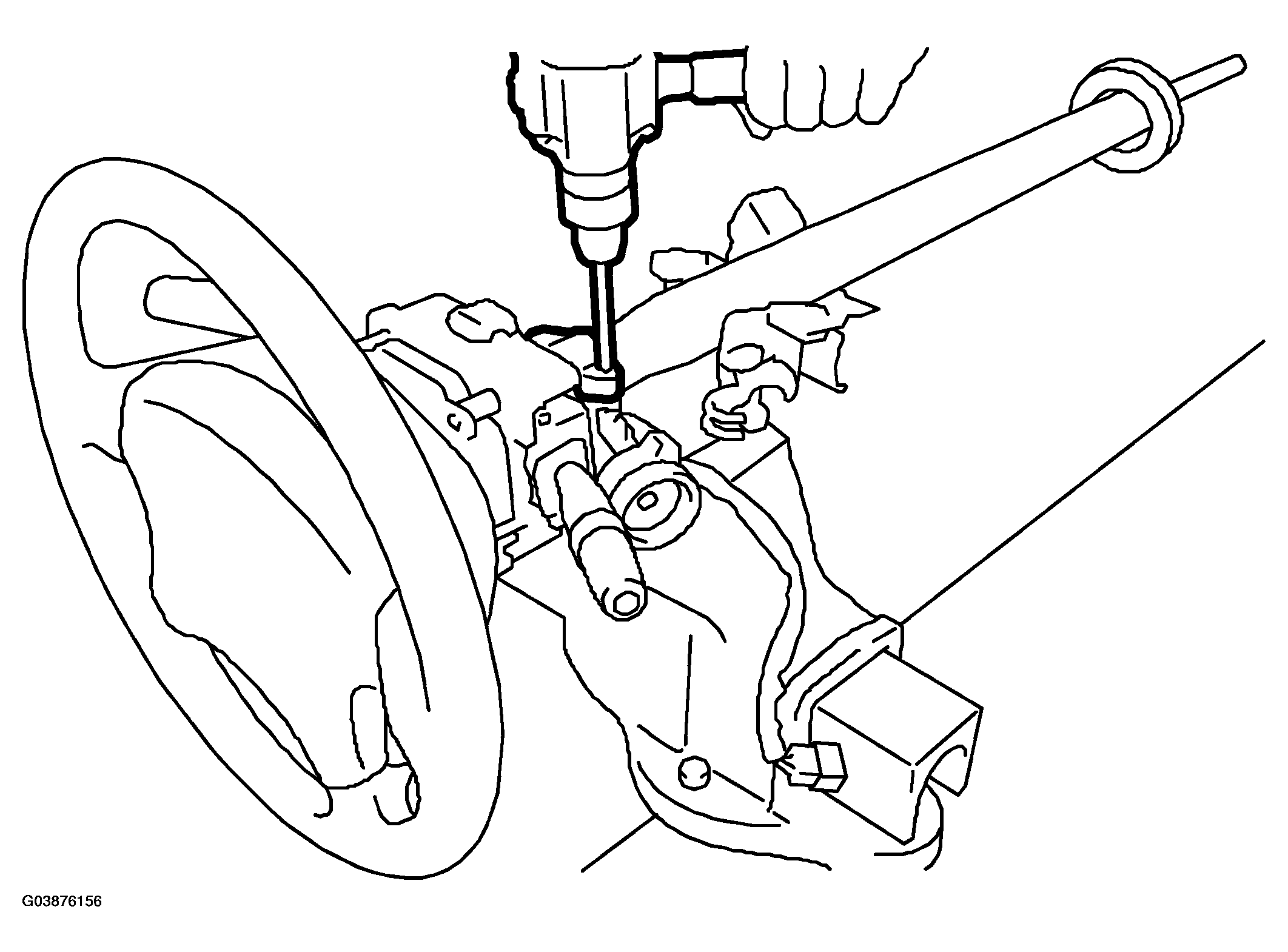

Fig 1: Removing Steering Column

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the ignition key lock.

Use a new torn bolt. Tighten the torn bolt to end of thread.

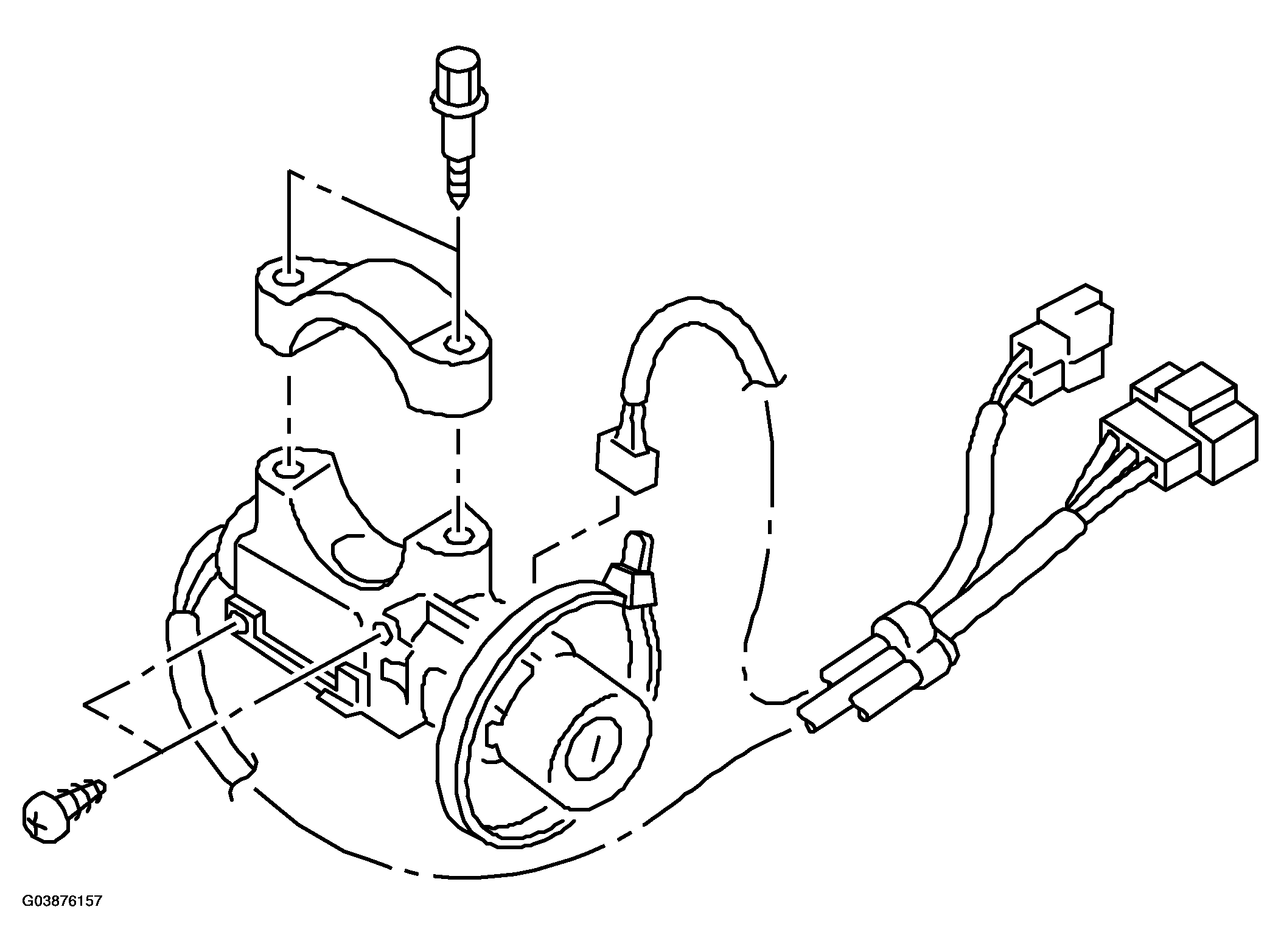

Fig 2: Removing Ignition Key Lock

Courtesy of SAAB-SCANIA OF AMERICA, INC.
