Home >> Saab >> 2005 >> 9-2X Linear, 253, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security And Locks >> Removal/Installation/Inspection >> Front Inner Remote >> Removal

Front Inner Remote: Removal

Remove the door trim.

Remove the sealing cover.

Remove a screw and two rod joints.

Remove the front inner remote.

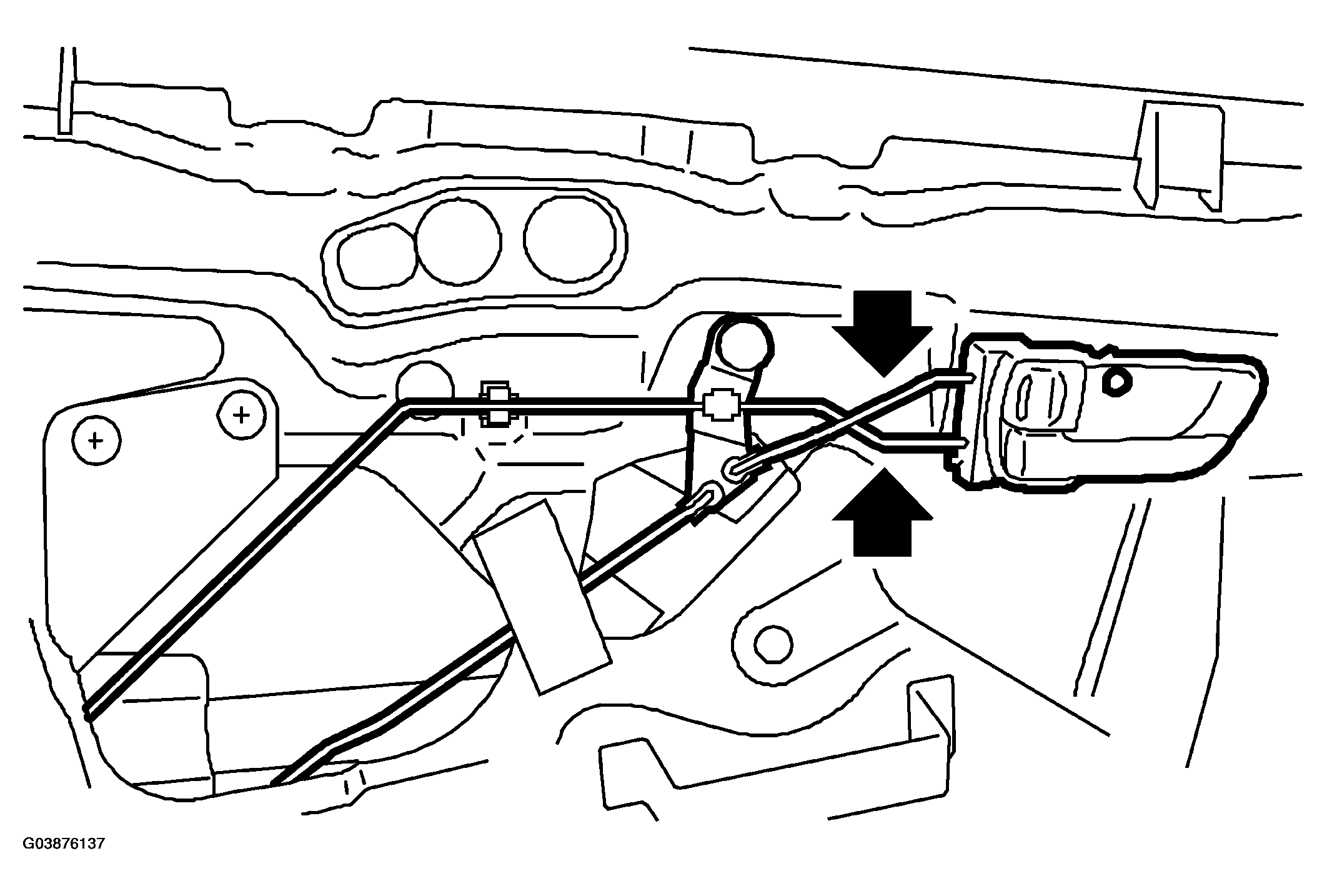

Fig 1: Removing Front Inner Remote
G03876137Courtesy of SAAB-SCANIA OF AMERICA, INC.
