Security System

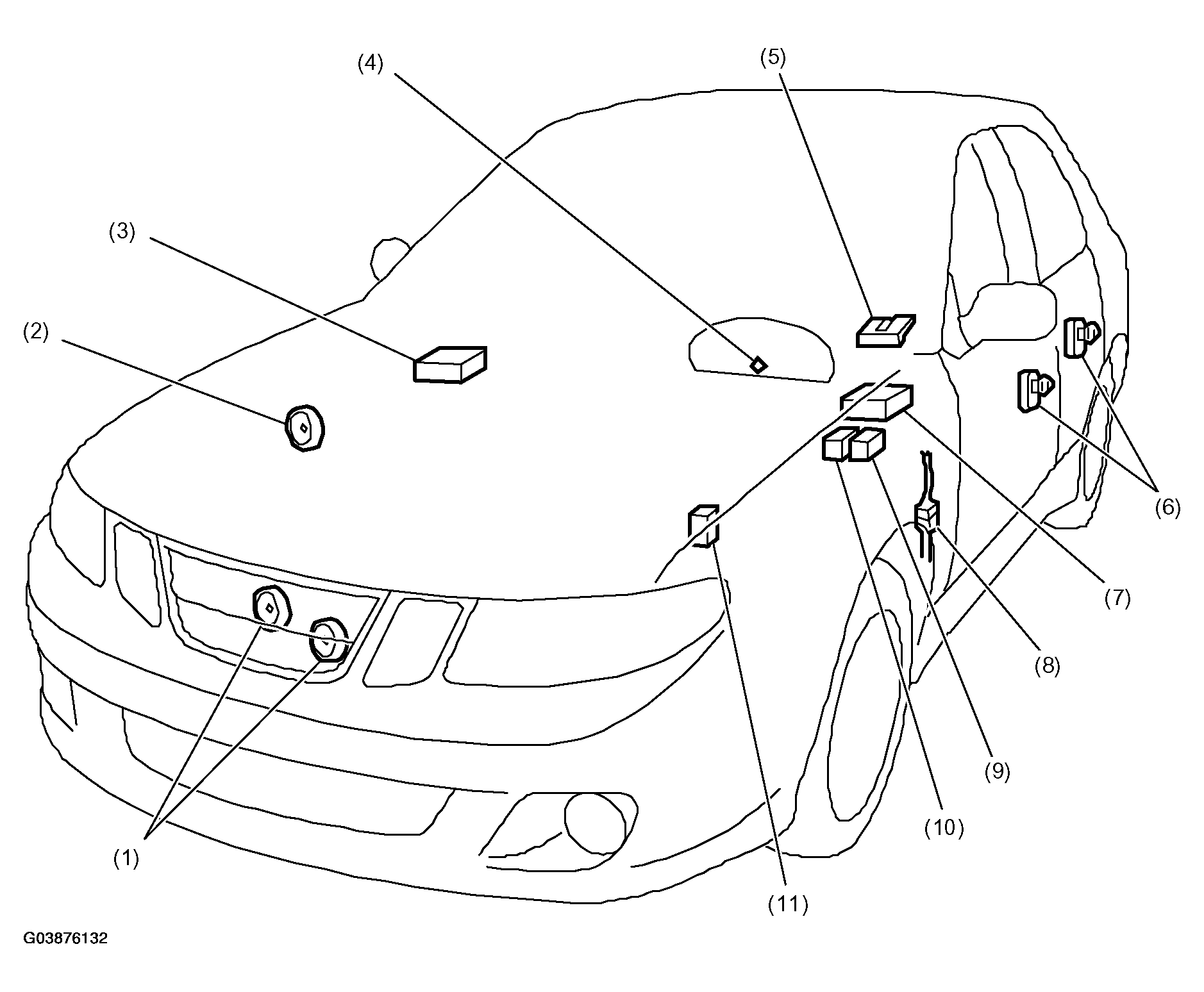

Fig 1: Illustration For Steps 1-11
G03876132Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Horn
  2. Security horn
  3. Security control unit
  4. Security indicator light (in combination meter)
  5. Rear gate latch switch
  6. Door switch
  7. Keyless entry control unit
  8. Passive arm connector
  9. Security horn relay
  10. Interrupt relay
  11. Horn relay (in main fuse box)
