Rear Gate Lock

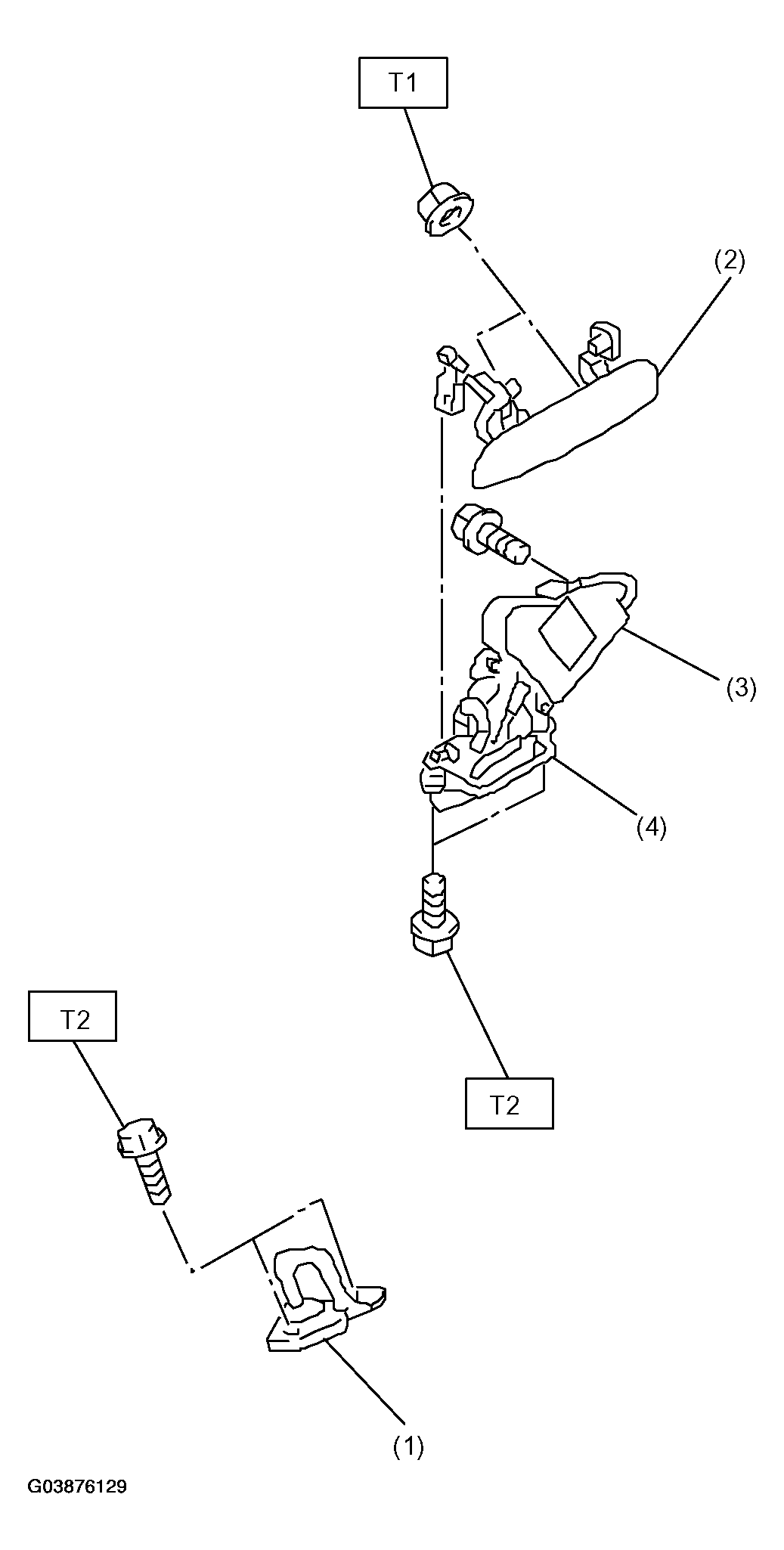

Fig 1: Illustration For Steps 1-4

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Striker
2. Rear gate outer handle
3. Rear gate actuator
4. Rear gate latch

Tightening torque: Nm (kgf-m, ft-lb)

T1: 4.5 (0.45, 3.3)

T2: 25(2.5, 18.4)
