Door Lock Assembly

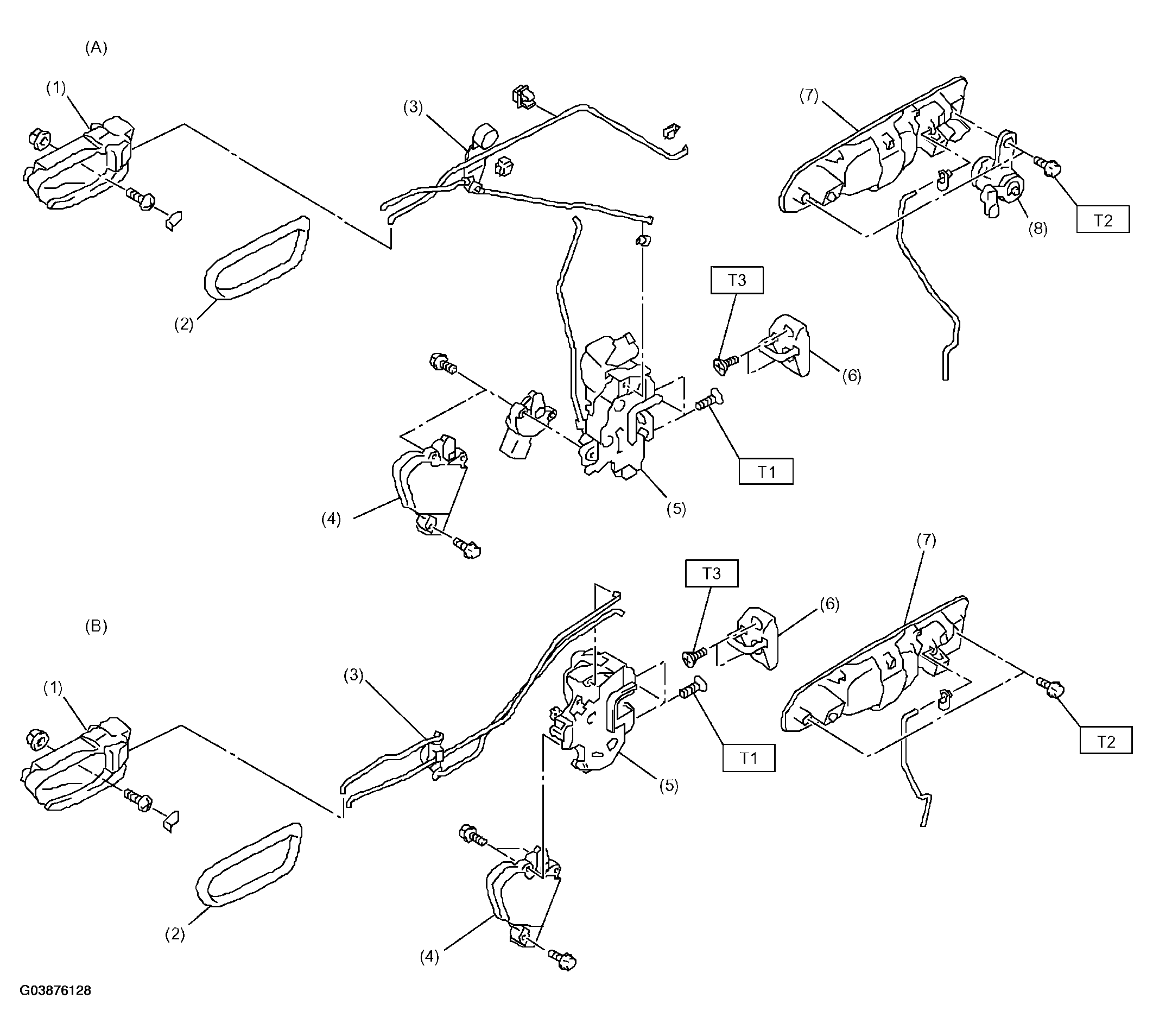

Fig 1: Illustration For Steps 1-8

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Front
2. Rear

1. Inner remote ASSY
2. Inner remote cover
3. Bell crank
4. Auto-door lock actuator
5. Door latch
6. Striker
7. Door outer handle
8. Key cylinder

Tightening torque: Nm (kgf-m, ft-lb)

T1: 6.4 (0.65, 4.7)

T2: 7.4 (0.75, 5.5)

T3: 17.6 (1.8, 13.0)
