Accelerator Pedal: Adjustment/Replacement: Removal

Disconnect the ground cable from battery.

Disconnect the connector.

Remove the nut securing accelerator pedal assembly.

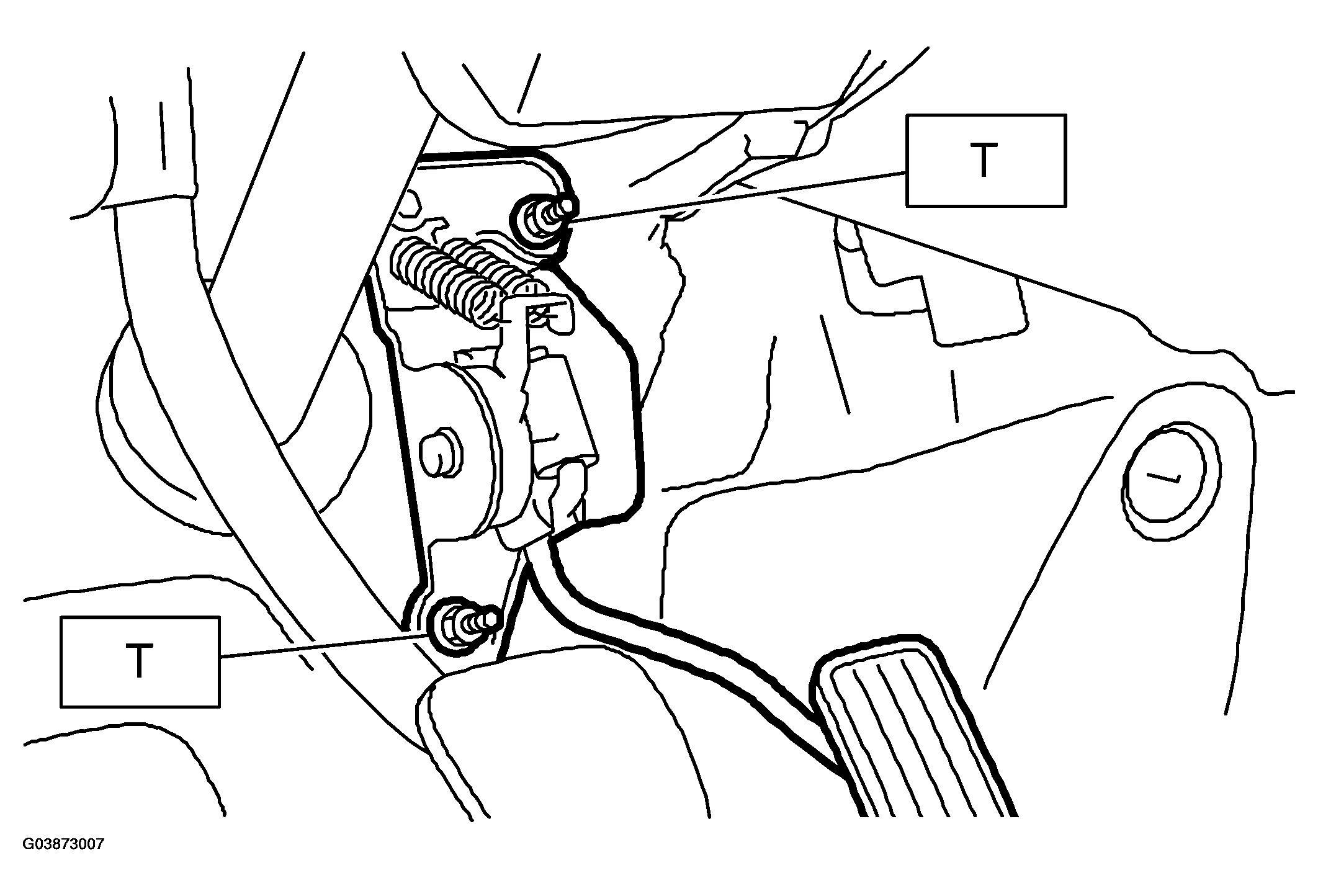

Fig 1: Removing Accelerator Pedal Assembly
G03873007Courtesy of SAAB-SCANIA OF AMERICA, INC.
