Neutral Position Switch: Inspection

Measure the neutral position switch resistance.

• Saab 9-2X 2.5i Linear

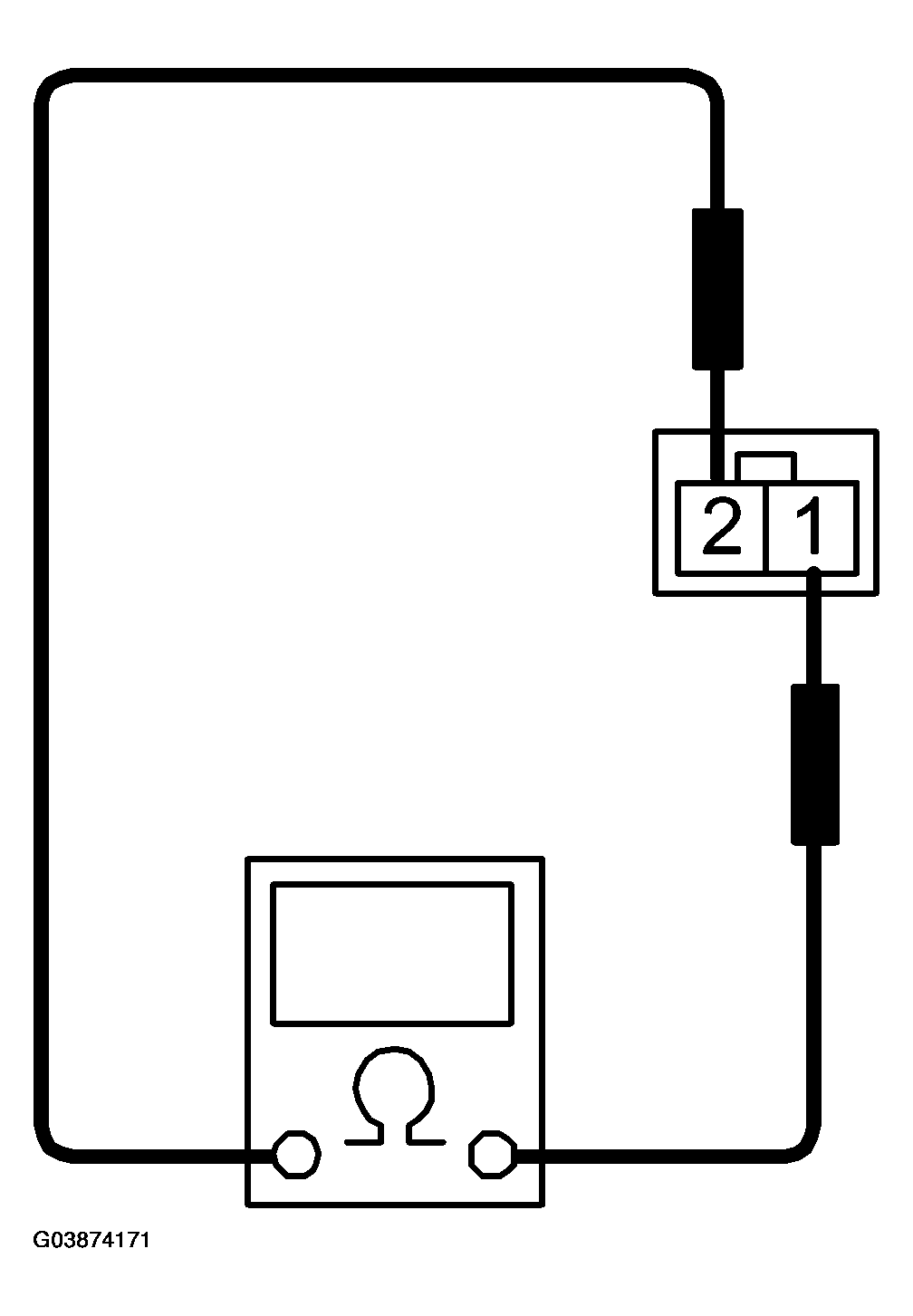

  Fig 1: Measuring Neutral Position Switch Resistance - Saab 9-2X 2.5i Linear

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  RESISTANCE SPECIFICATIONS - SAAB 9-2X 2.5i LINEAR



  Gear shift position	Terminal No.	Specified resistance
  Neutral position	1 and 2	Less than 1 O
  Other positions		More than 1 M O

• Saab 9-2X 2.0T Aero

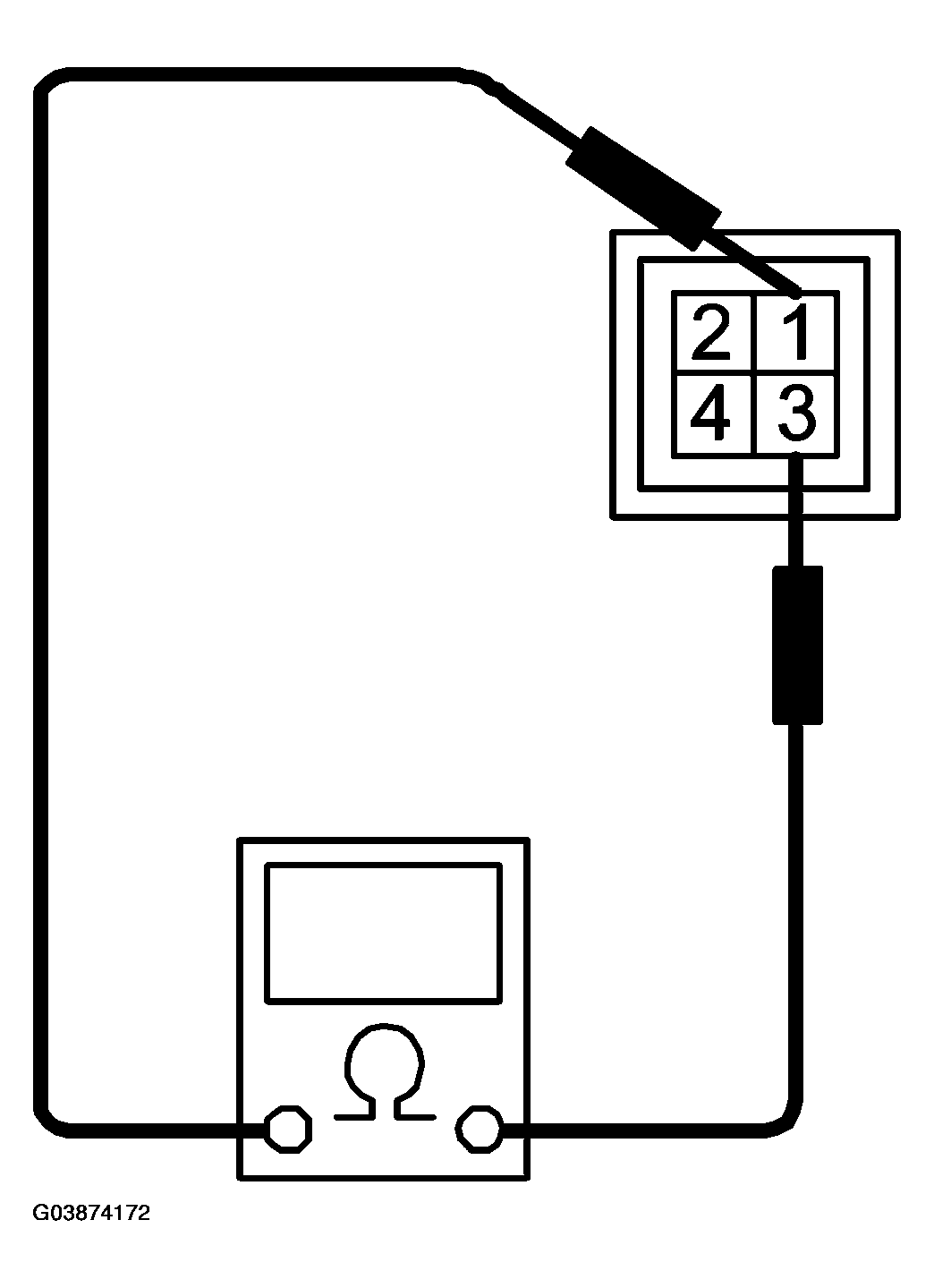

  Fig 2: Measuring Neutral Position Switch Resistance - Saab 9-2X 2.0T Aero

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  RESISTANCE SPECIFICATIONS - SAAB 9-2X 2.0T AERO



  Gear shift position	Terminal No.	Specified resistance
  Neutral position	1 and 3	Less than 1 O
  Other positions		More than 1 M O

If NG, replace the neutral position switch.
