Inhibitor Switch: Inspection

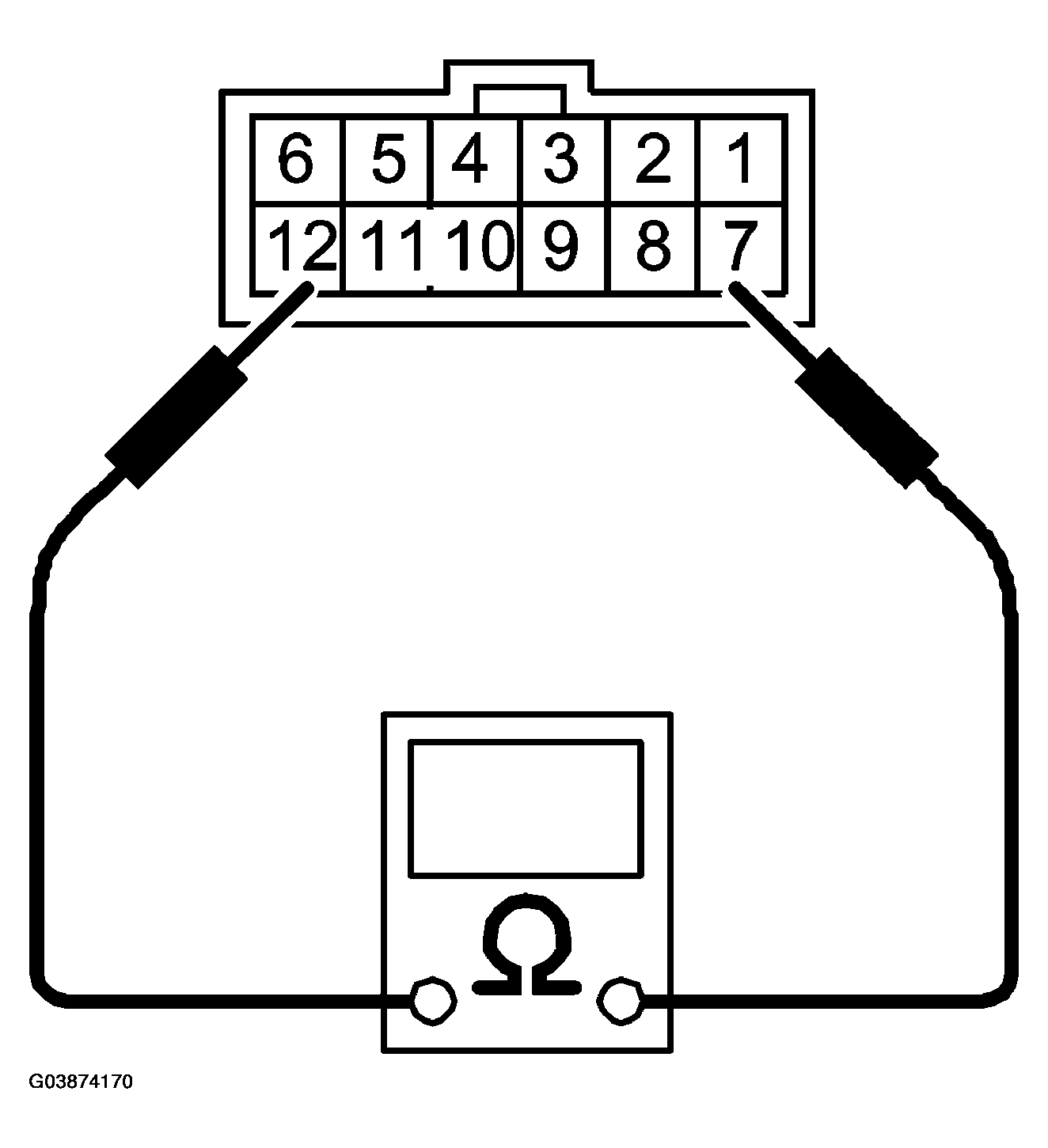

Measure the inhibitor switch resistance.
Courtesy of SAAB-SCANIA OF AMERICA, INC. RESISTANCE SPECIFICATIONS
| Selector lever position |
Terminal No. |
Standard |
| P |
7 and 12 |
Less than 1 O |
| N |
Less than 1 O |
| Except P and N |
More than 1 MO |
If NG, replace the inhibitor switch.
