Clutch Pedal

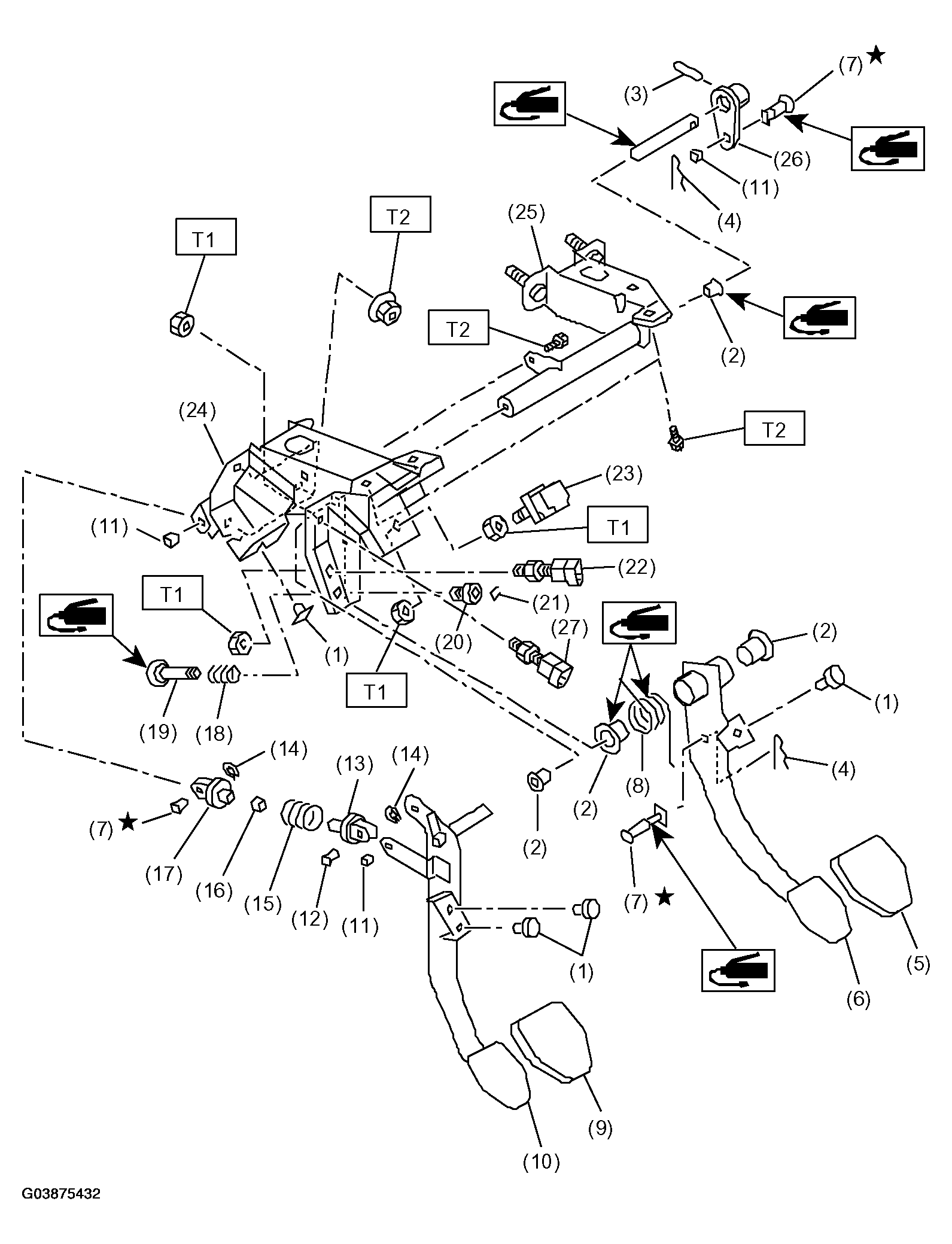

Fig 1: Identifying Clutch Pedal Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Stopper
2. Bushing
3. Spring pin
4. Snap pin
5. Brake pedal pad
6. Brake pedal
7. Clevis pin
8. Brake pedal spring
9. Clutch pedal pad
10. Clutch pedal
11. Bushing C
12. Clutch clevis pin
13. Assist rod A
14. Clip
15. Assist spring
16. Assist bushing
17. Assist rod B
18. Spring S
19. Rod S
20. Bushing S
21. Clip
22. Clutch switch (Cruise control)
23. Stop light switch
24. Pedal bracket
25. Clutch master cylinder bracket
26. Lever
27. Clutch switch (Starter interlock)

Tightening torque: Nm (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 18 (1.8, 13.3)
