Opening Cylinder: Removal

Remove the air intake chamber (Saab 9-2X 2.5i Linear).

Remove the intercooler (Saab 9-2X 2.0T Aero).

Remove the clutch hose from operating cylinder.

• Saab 9-2X 2.5i Linear

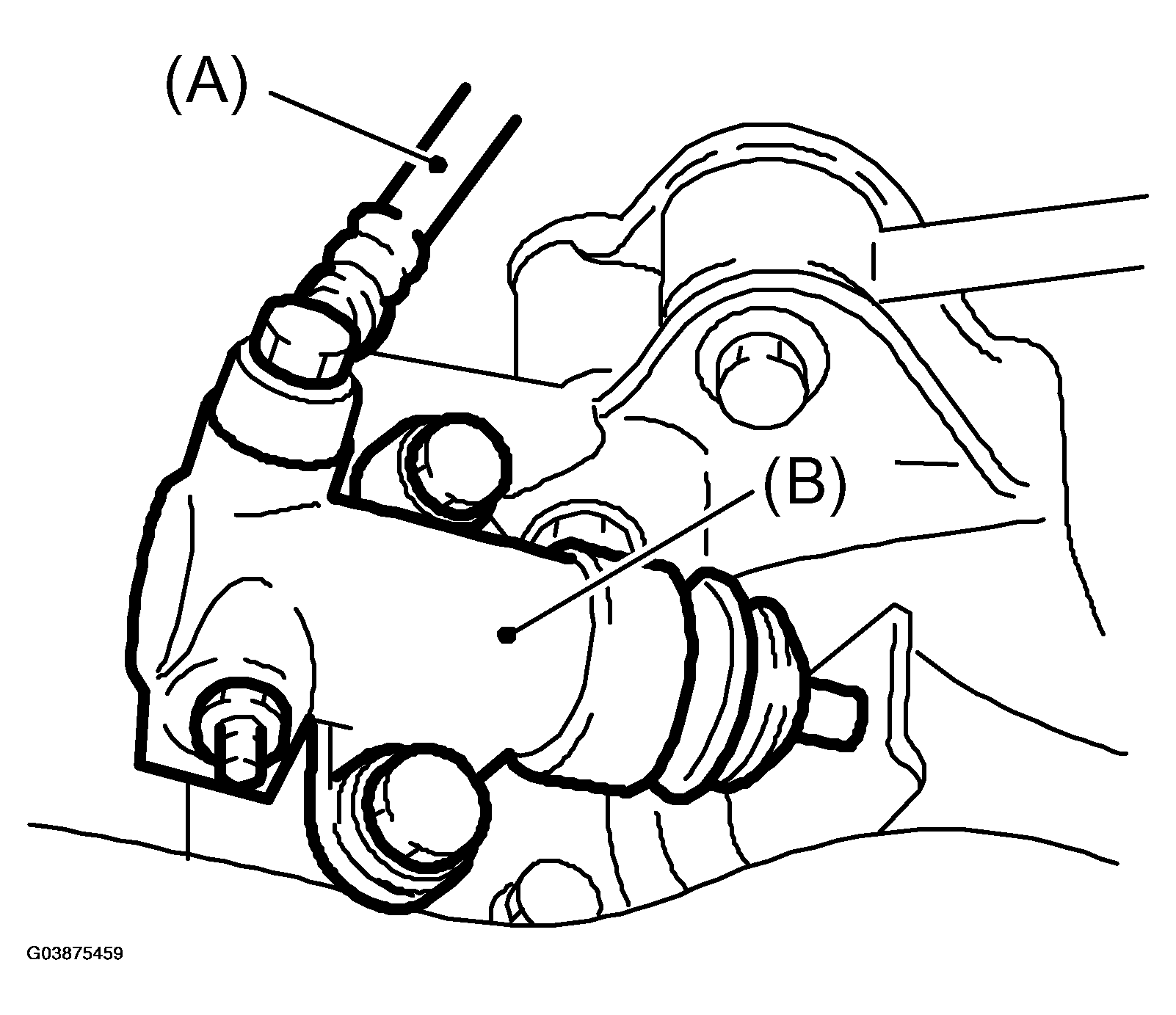

  Fig 1: Removing Clutch Hose From Operating Cylinder (Saab 9-2X 2.5i Linear)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Clutch hose
  2. Operating cylinder
• Saab 9-2X 2.0T Aero

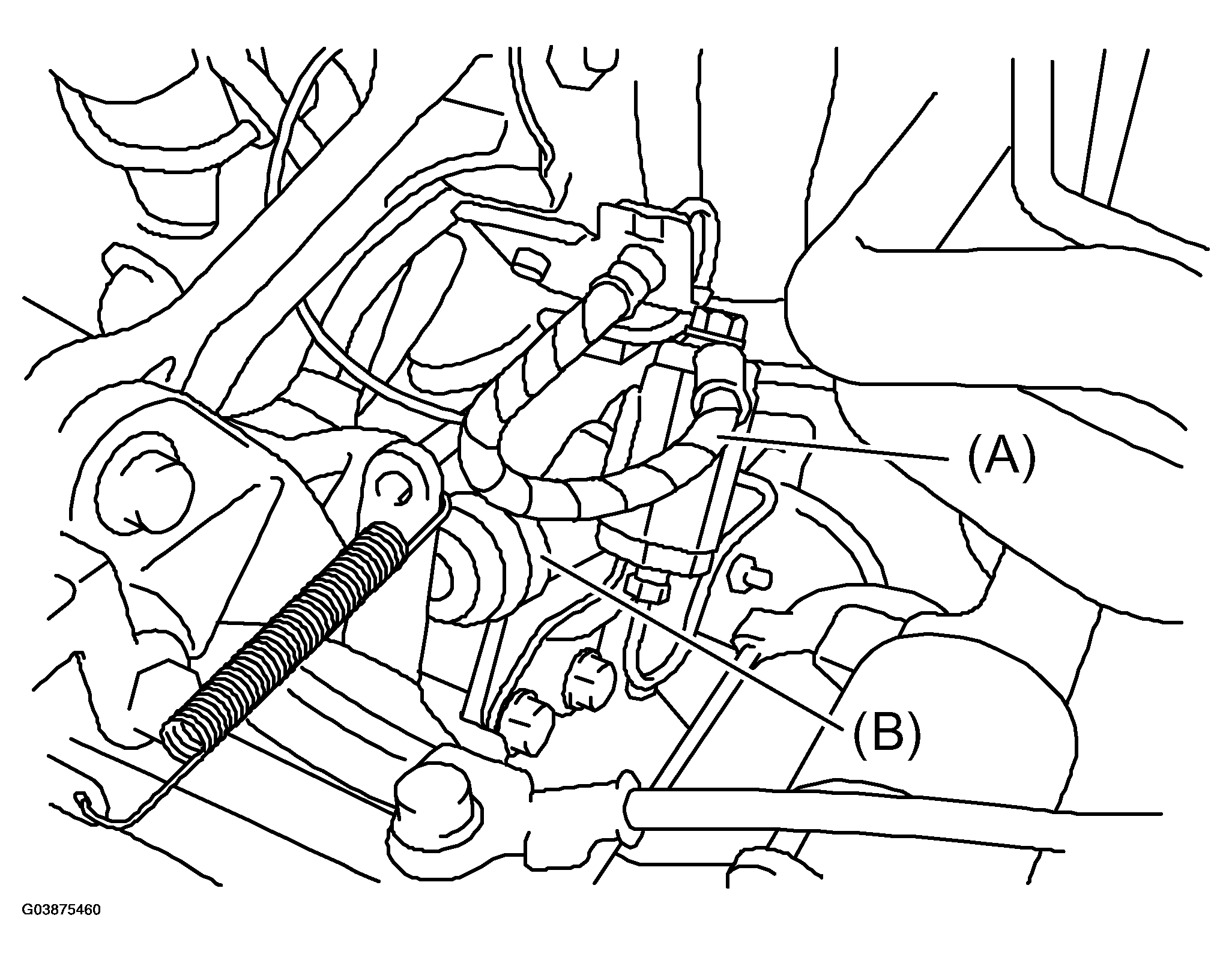

  Fig 2: Removing Clutch Hose From Operating Cylinder (Saab 9-2X 2.0T Aero)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Clutch hose
  2. Operating cylinder

Remove the operating cylinder from transmission.

• Saab 9-2X 2.5i Linear

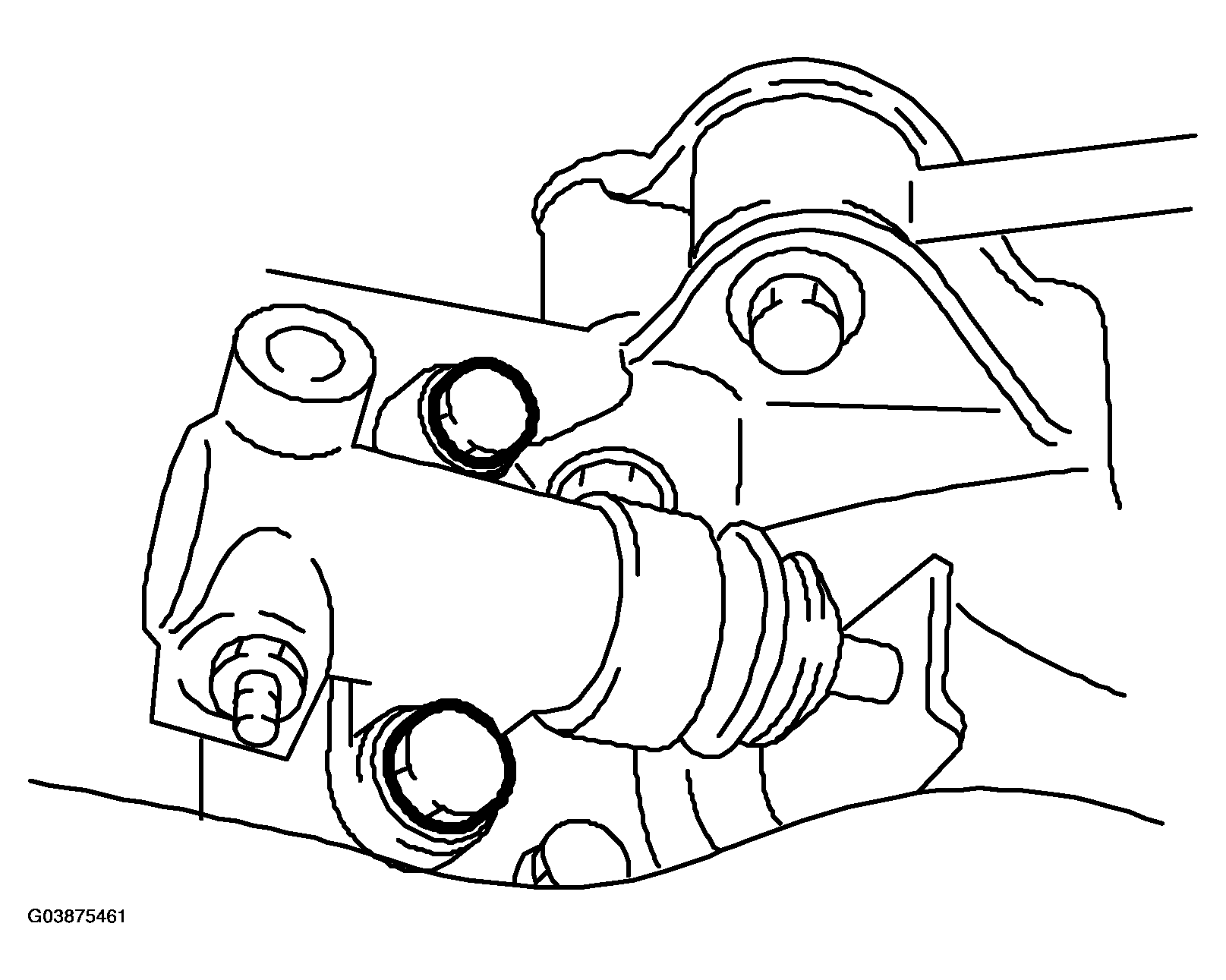

  Fig 3: Removing Operating Cylinder From Transmission (Saab 9-2X 2.5i Linear)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
• Saab 9-2X 2.0T Aero

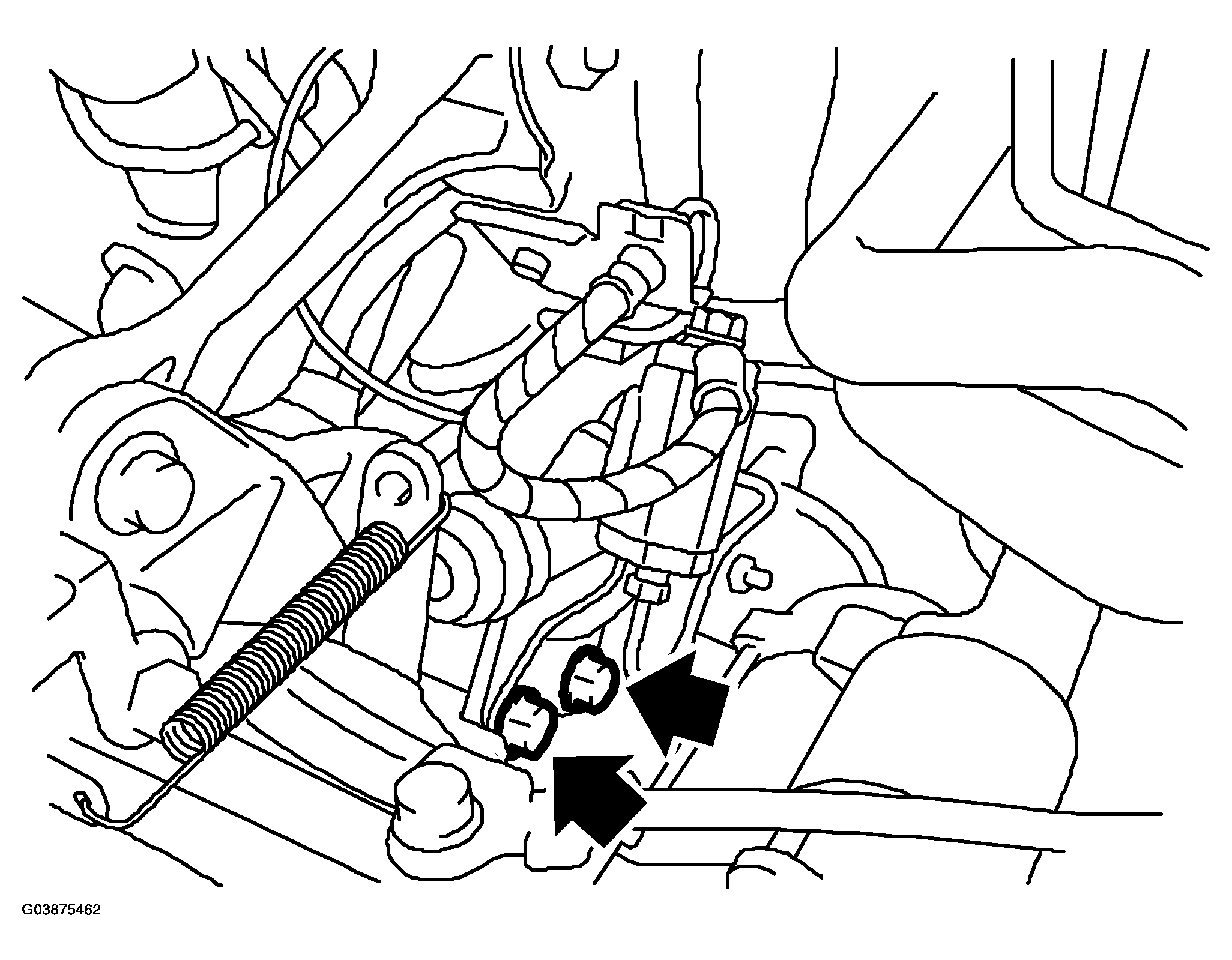

  Fig 4: Removing Operating Cylinder From Transmission (Saab 9-2X 2.0T Aero)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Operating cylinder
