Clutch System (Flywheel): Installation

Install the flywheel and ST.

ST 32005107 CRANKSHAFT STOPPER

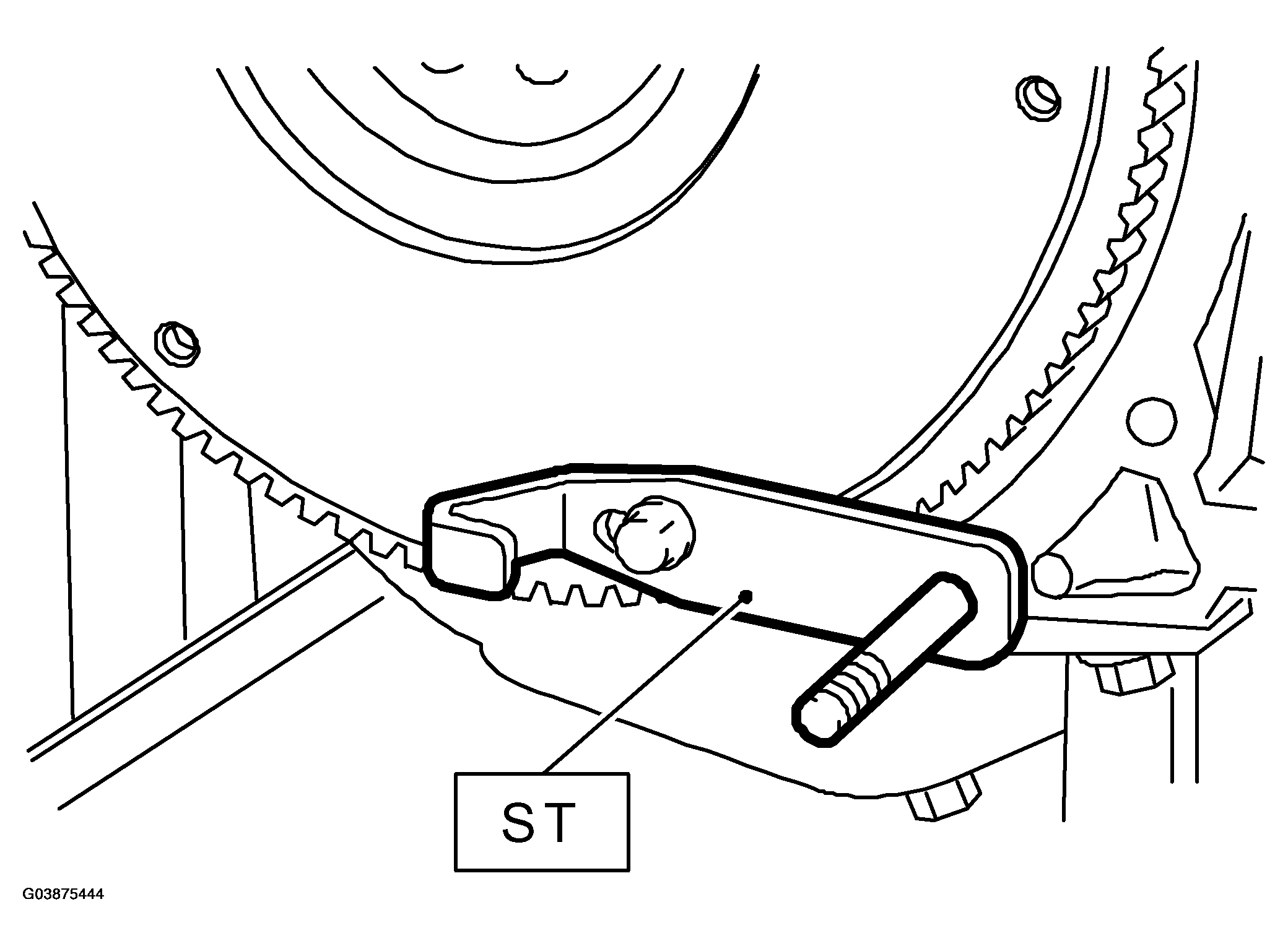

Fig 1: Installing Flywheel

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tighten the flywheel attaching bolts to the specified torque.

NOTE: Tighten the flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.

Tightening torque:

72 Nm (7.3 kgf-m, 52.8 ft-lb)

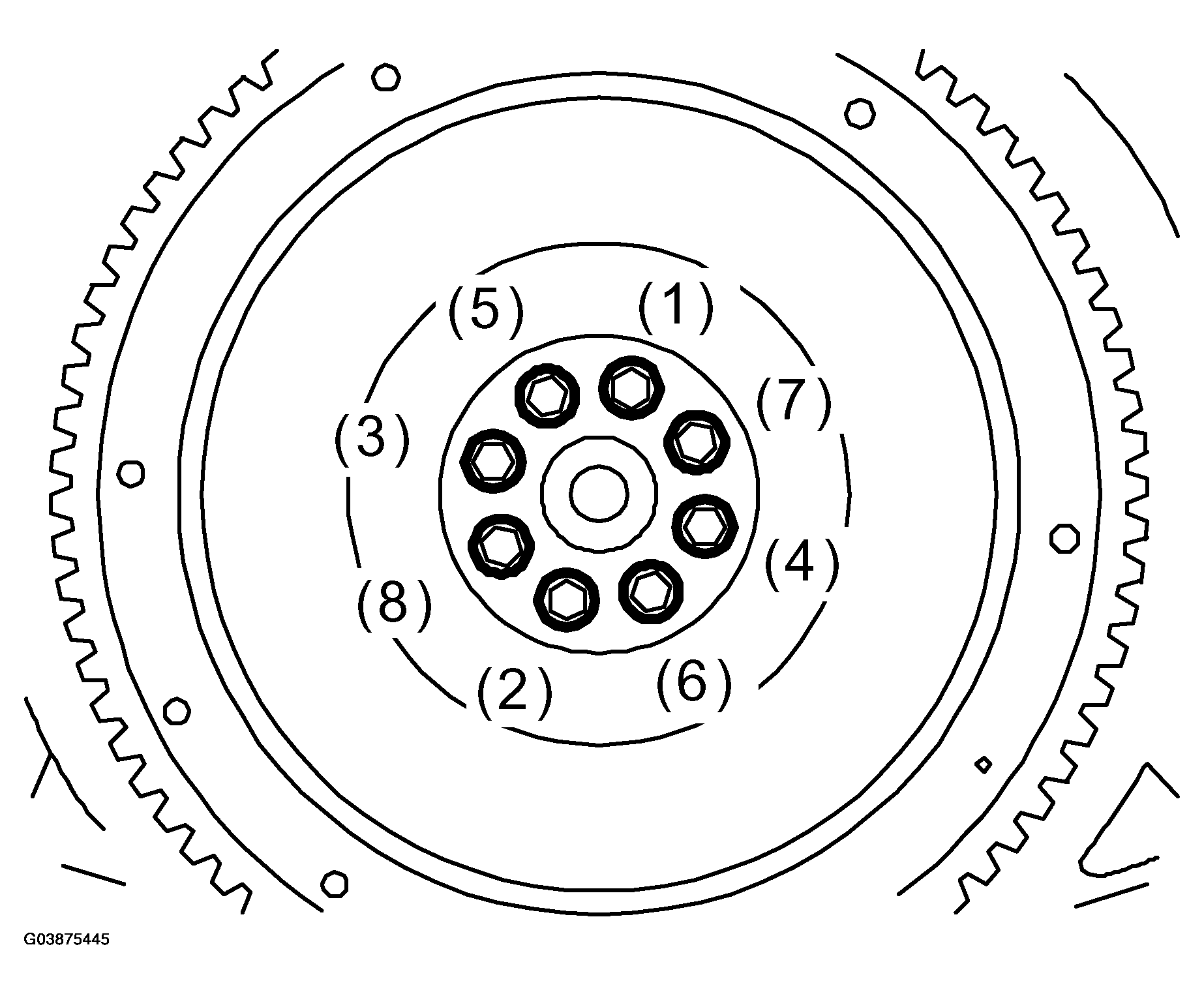

Fig 2: Tightening Flywheel Attaching Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the clutch disc and cover.

Install the transmission assembly.
