Clutch System (Flywheel): Inspection

IMPORTANT: Since this bearing is grease sealed and is of a non-lubrication type, do not wash with gasoline or any solvent.

Damage on sliding surface of facing and ring gear

If defective, replace the flywheel.

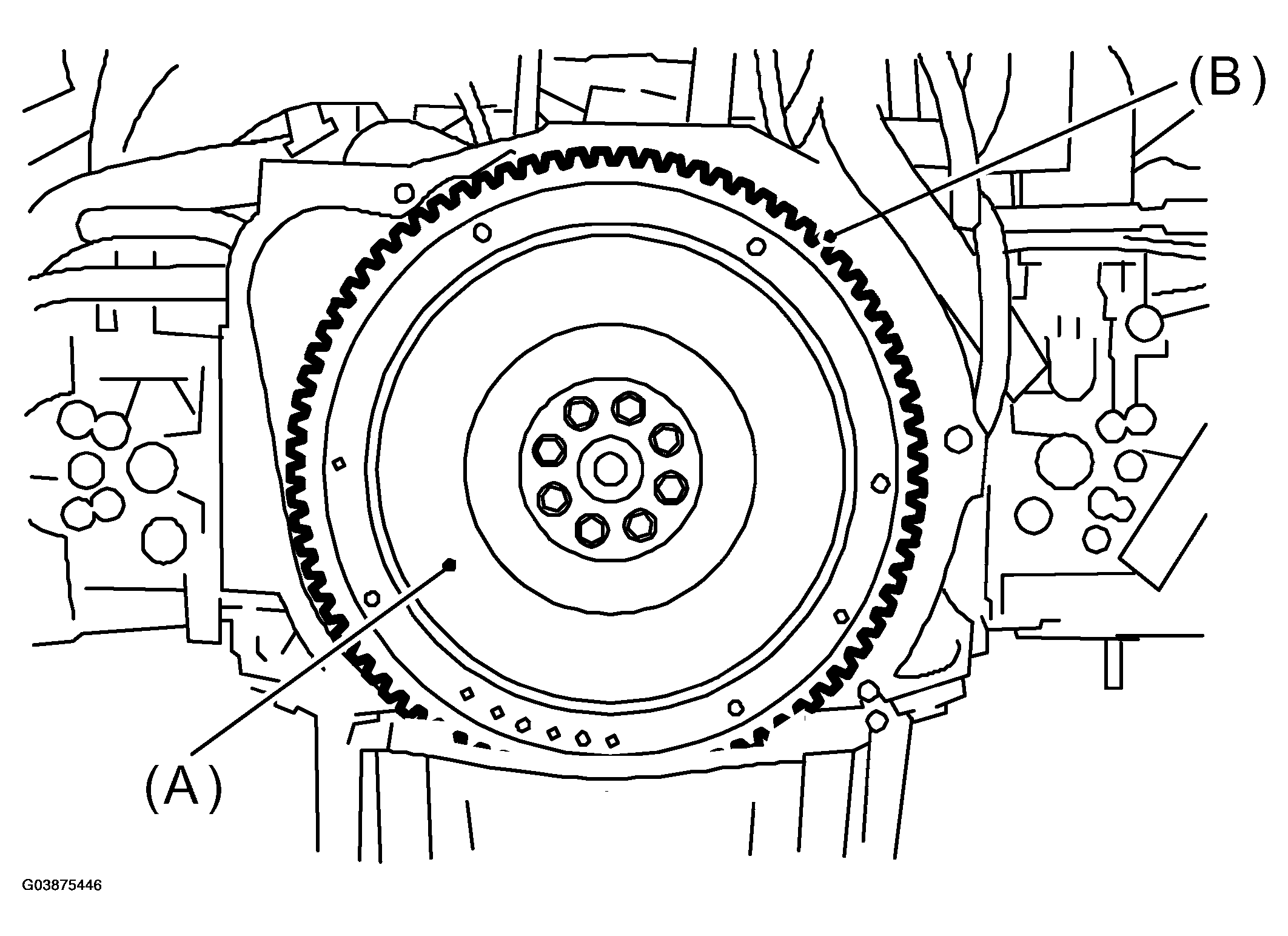

Fig 1: Inspecting Flywheel Ring Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Smoothness of rotation

Rotate the ball bearing applying pressure in thrust direction.

If noise or excessive play is noted, replace the flywheel.
