Clutch Switch (Cruise Control)

Move the clevis pin of the push rod right and left and hold where it moves smoothly, then measure stroke of clutch pedal.

Specified clutch pedal full stroke A:

130 - 135 mm (5.12 - 5.31 in)

Tightening torque:

T: 8 Nm (0.8 kgf-m, 5.9 ft-lb)

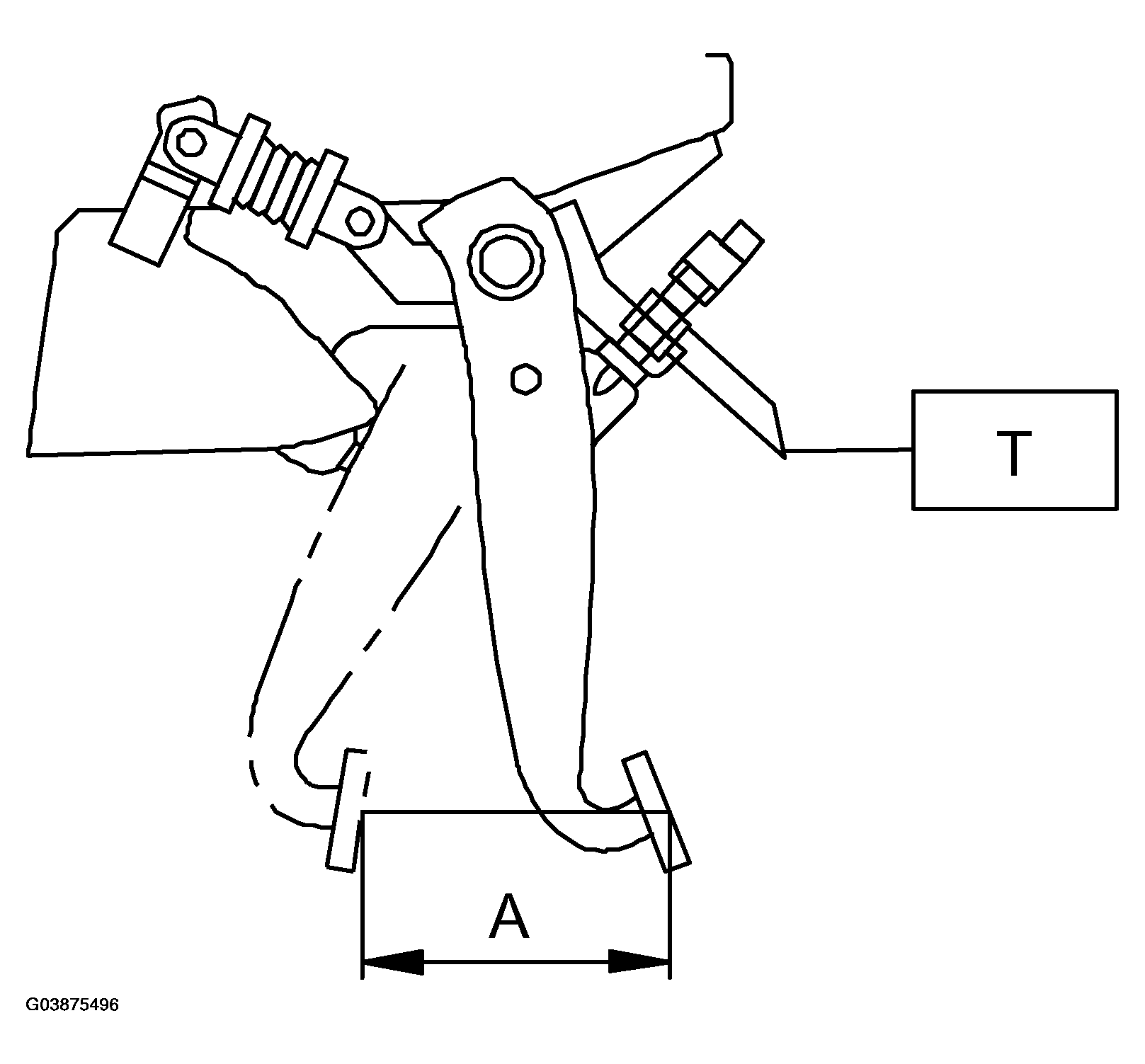

Fig 1: Moving Clevis Pin Of Push Rod Right

Courtesy of SAAB-SCANIA OF AMERICA, INC.

If the clutch pedal stroke is out of specification, adjust the stroke.

Connect clutch switch connector.
