Clutch Switch: Adjustment

Loosen the clutch switch mounting lock nut (Starter interlock).

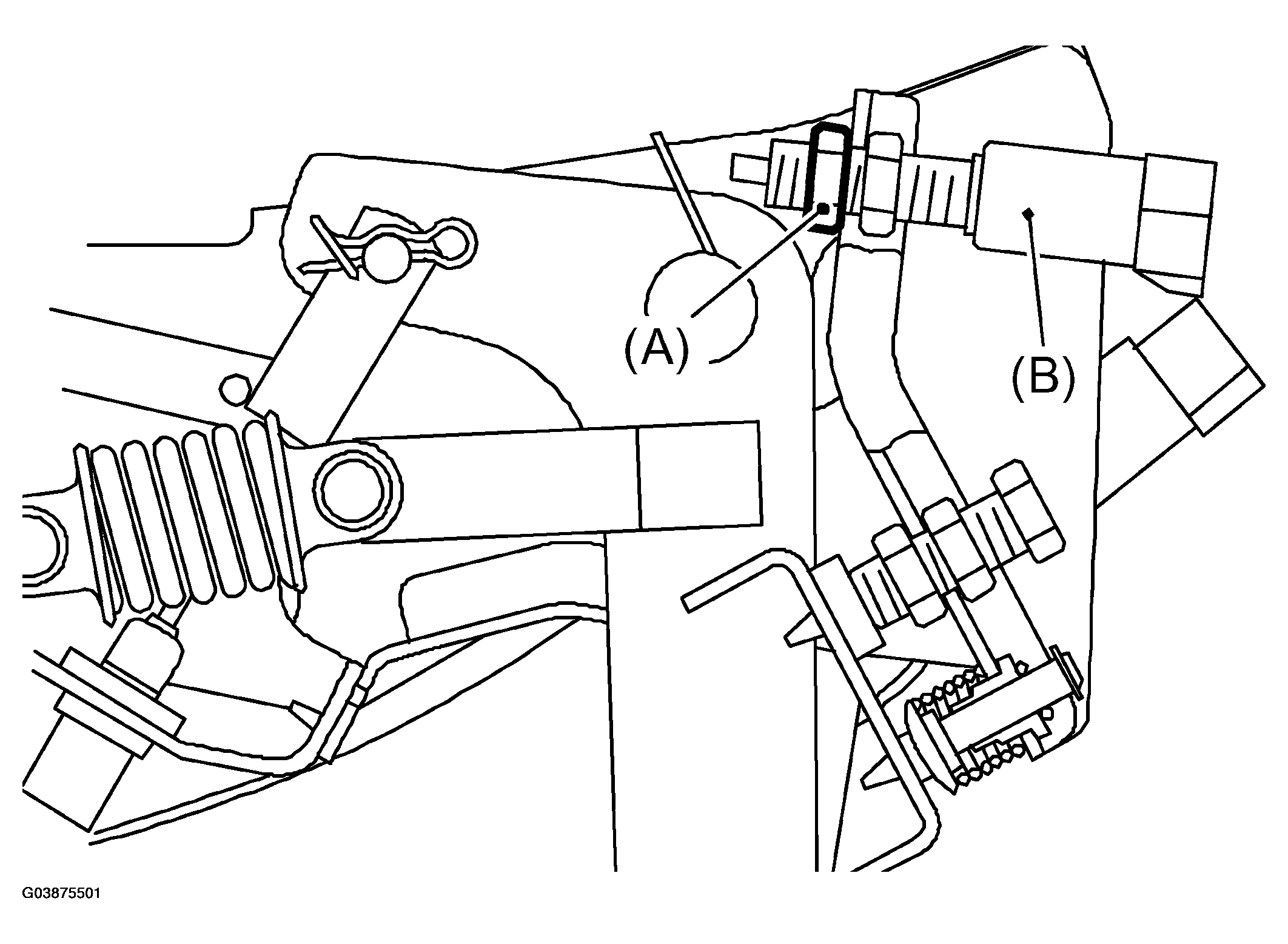

Fig 1: Loosening Clutch Switch Mounting Lock Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Lock nut
2. Clutch switch (Starter interlock)

Fully depress the clutch pedal.

Adjust the clutch pedal plate and clutch switch so that the gap between them is 3 - 3.5 mm (0.12 - 0.14 in).

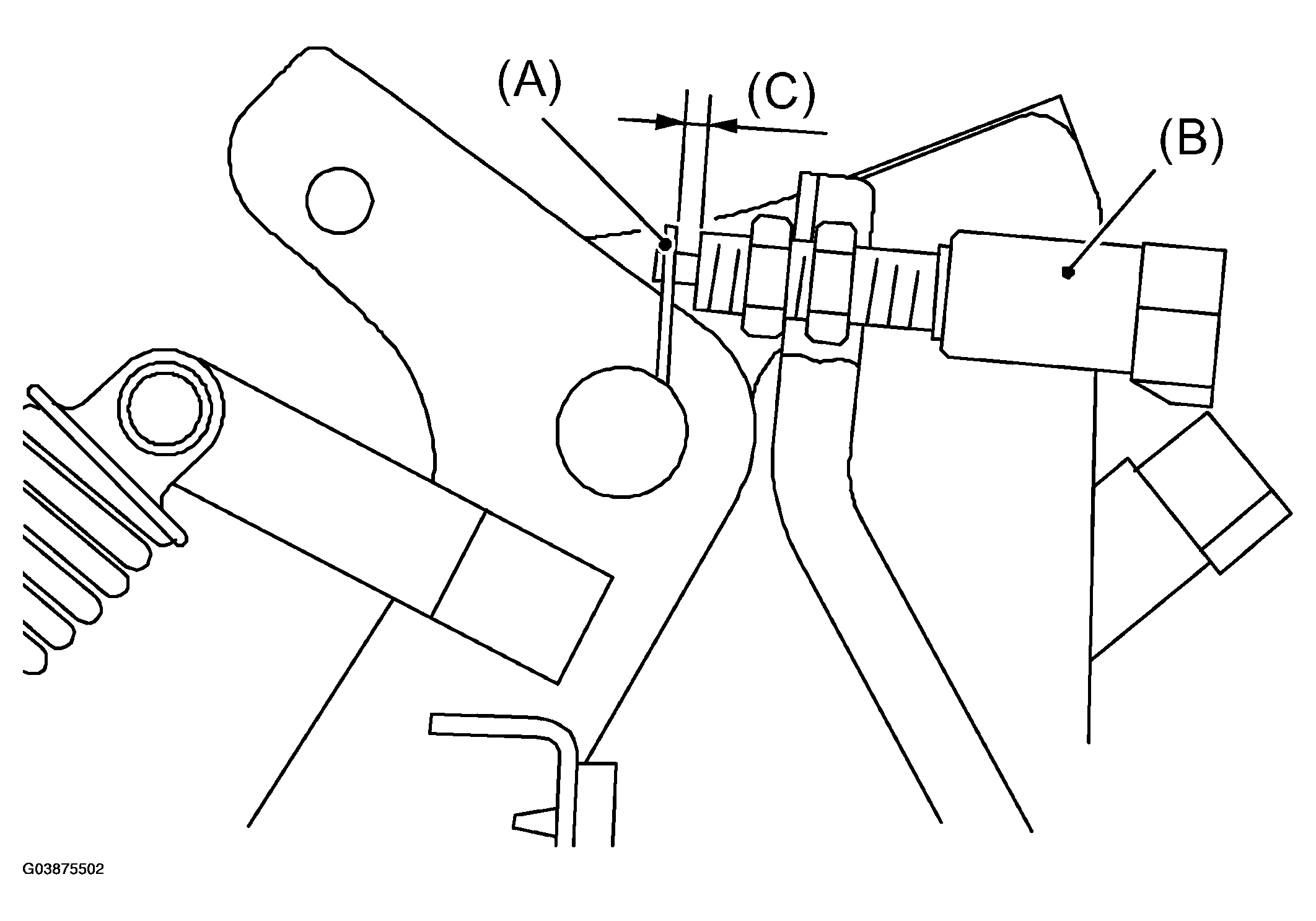

Fig 2: Adjusting Clutch Pedal Plate

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Plate
2. Clutch switch (Starter interlock)
3. 3 - 3.5 mm (0.12 - 0.14 in)

Tighten the lock nut.

Tightening torque:

8 Nm (0.8 kgf-m, 5.9 ft-lb)
