Clutch Pedal: Disassembly

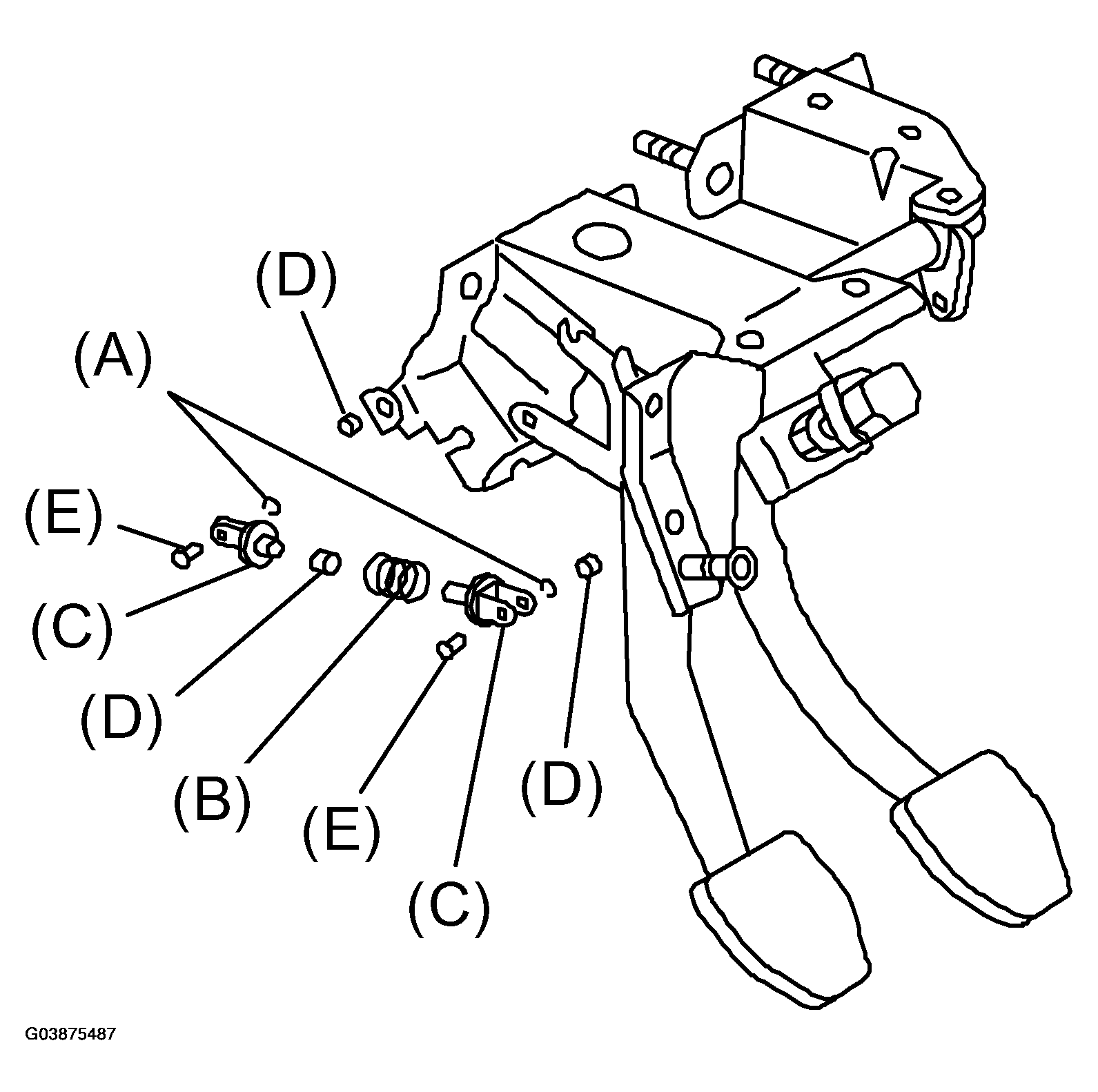

Remove the clips, assist spring, rod and bushing.

Fig 1: Removing Clips, Assist Spring, Rod And Bushing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

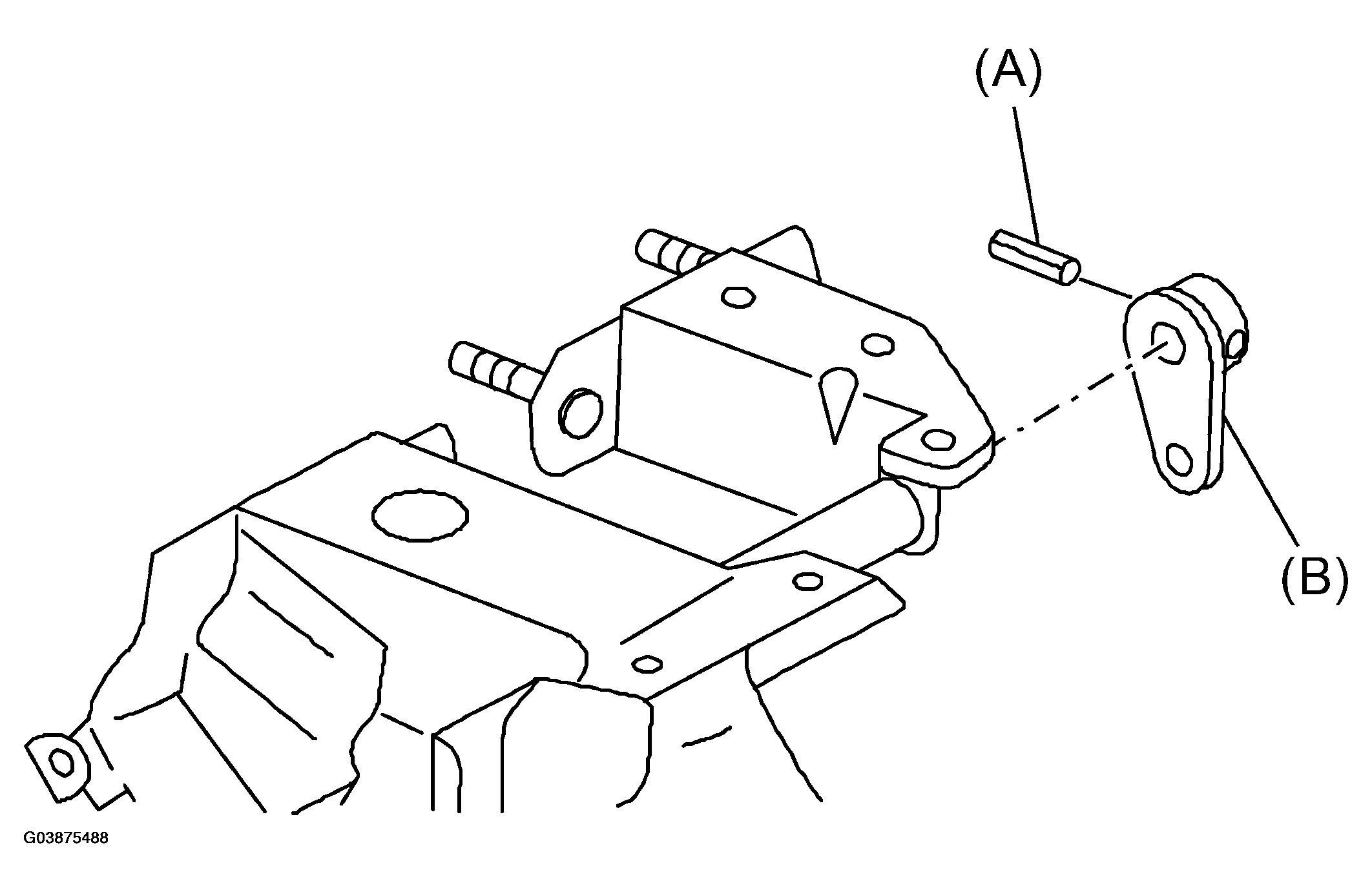

Remove the spring pin and lever.

Fig 2: Removing Spring Pin And Lever

Courtesy of SAAB-SCANIA OF AMERICA, INC.

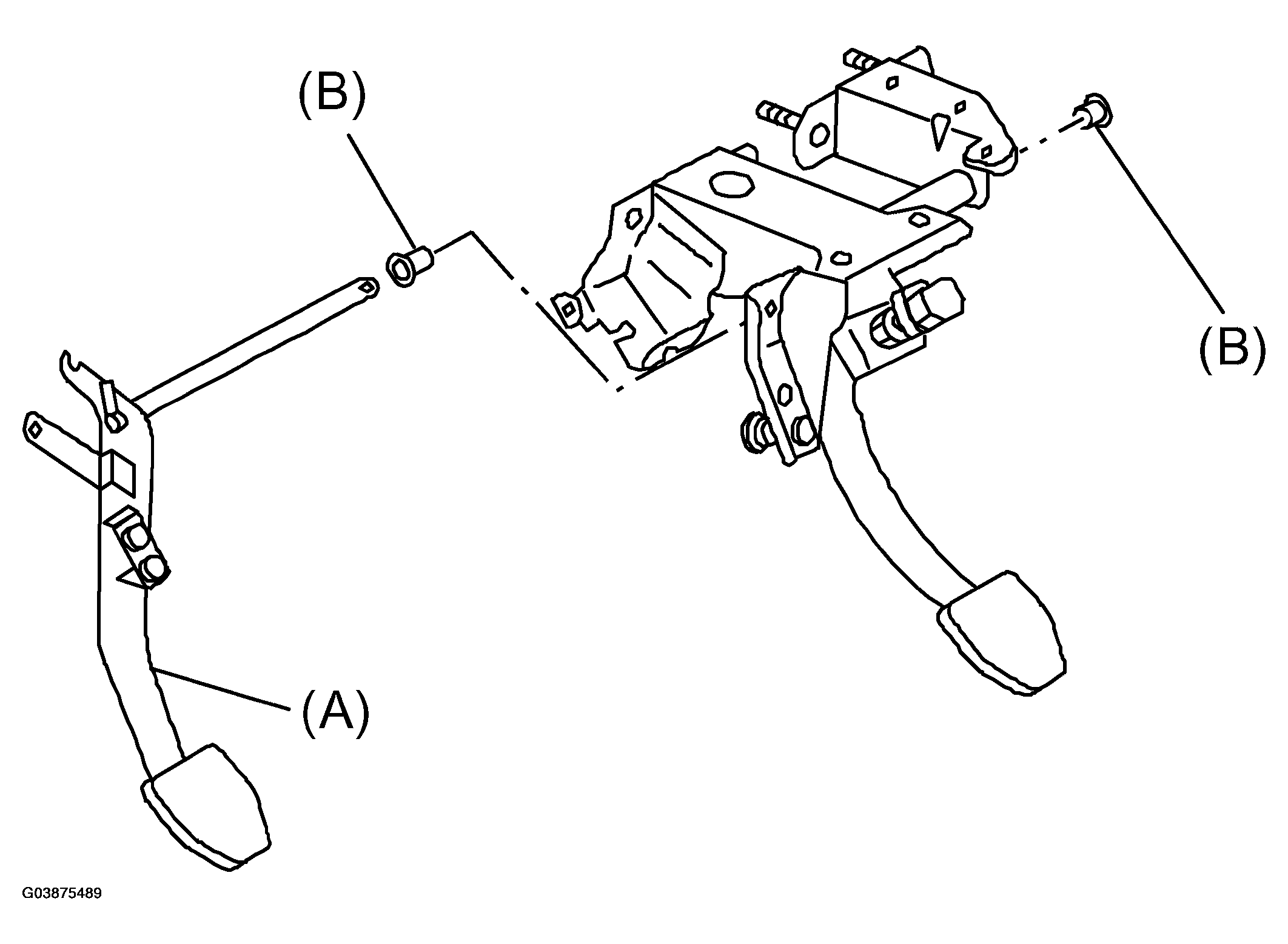

Remove the clutch pedal and bushings.

Fig 3: Removing Clutch Pedal And Bushings

Courtesy of SAAB-SCANIA OF AMERICA, INC.

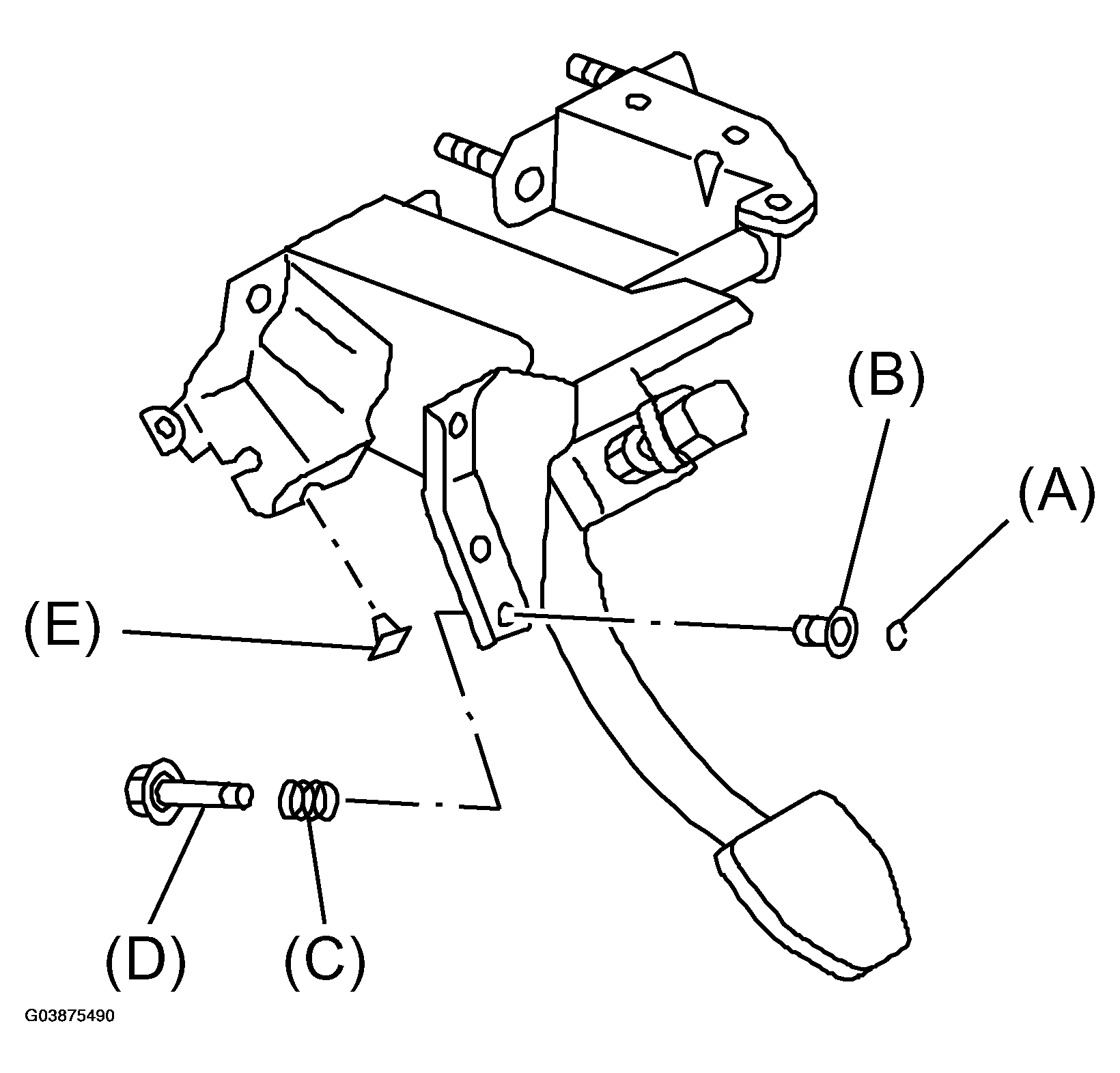

Remove the stopper, clip, O-ring, rod S, and then remove the spring and bushing S.

Fig 4: Removing Spring And Bushing S

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the stoppers from clutch pedal.

Remove the clutch pedal pad. (Saab 9-2X 2.5i Linear)
