Clutch Disc & Cover: Removal

Remove the transmission assembly from vehicle body.

Install the ST on flywheel.

ST 32005146 CLUTCH DISC GUIDE

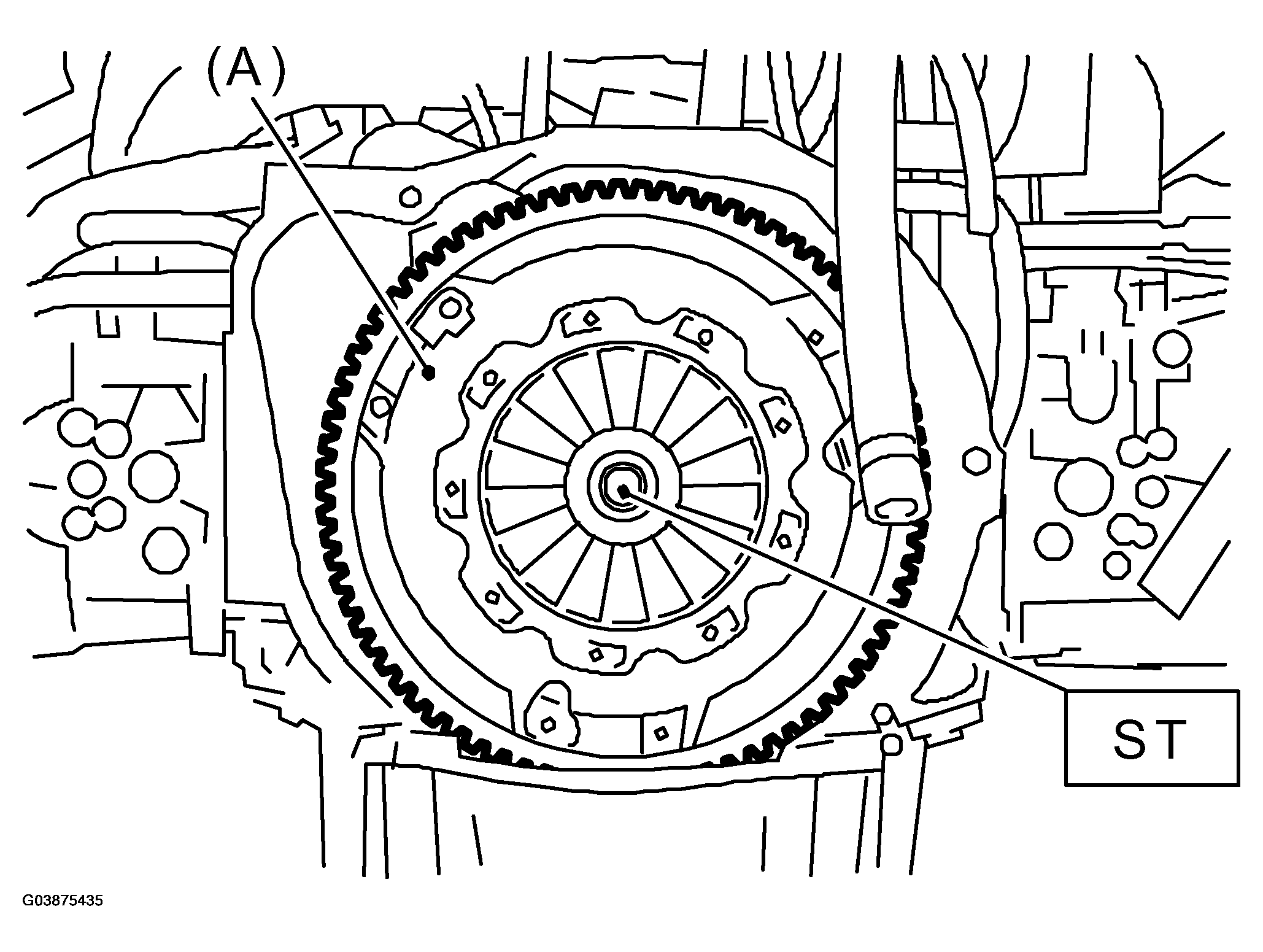

Fig 1: Installing ST On Flywheel

Courtesy of SAAB-SCANIA OF AMERICA, INC.

(A) Clutch cover

Remove the clutch cover and clutch disc.

NOTE:

Take care not to allow oil on the clutch disc facing.
Do not disassemble either the clutch cover or clutch disc.
Be sure to put alignment marks on the flywheel and clutch cover before removing clutch cover.
