Clutch Disc & Cover: Installation

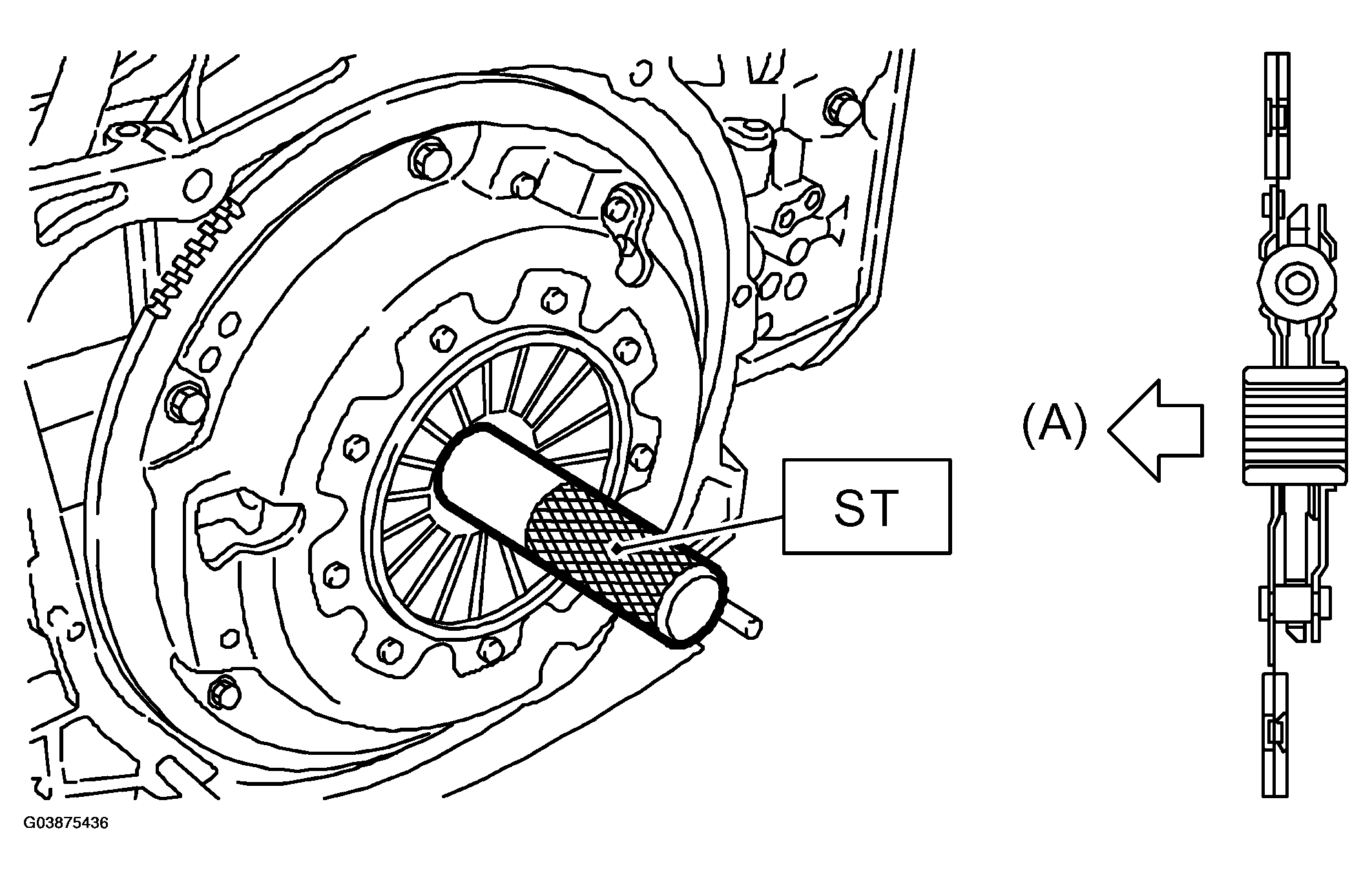

Insert the ST into clutch disc and install them on the flywheel by inserting the ST end into pilot bearing.
NOTE:
When installing the clutch disc, be careful to its direction.
ST 32005146 CLUTCH DISC GUIDE
(A) Flywheel side

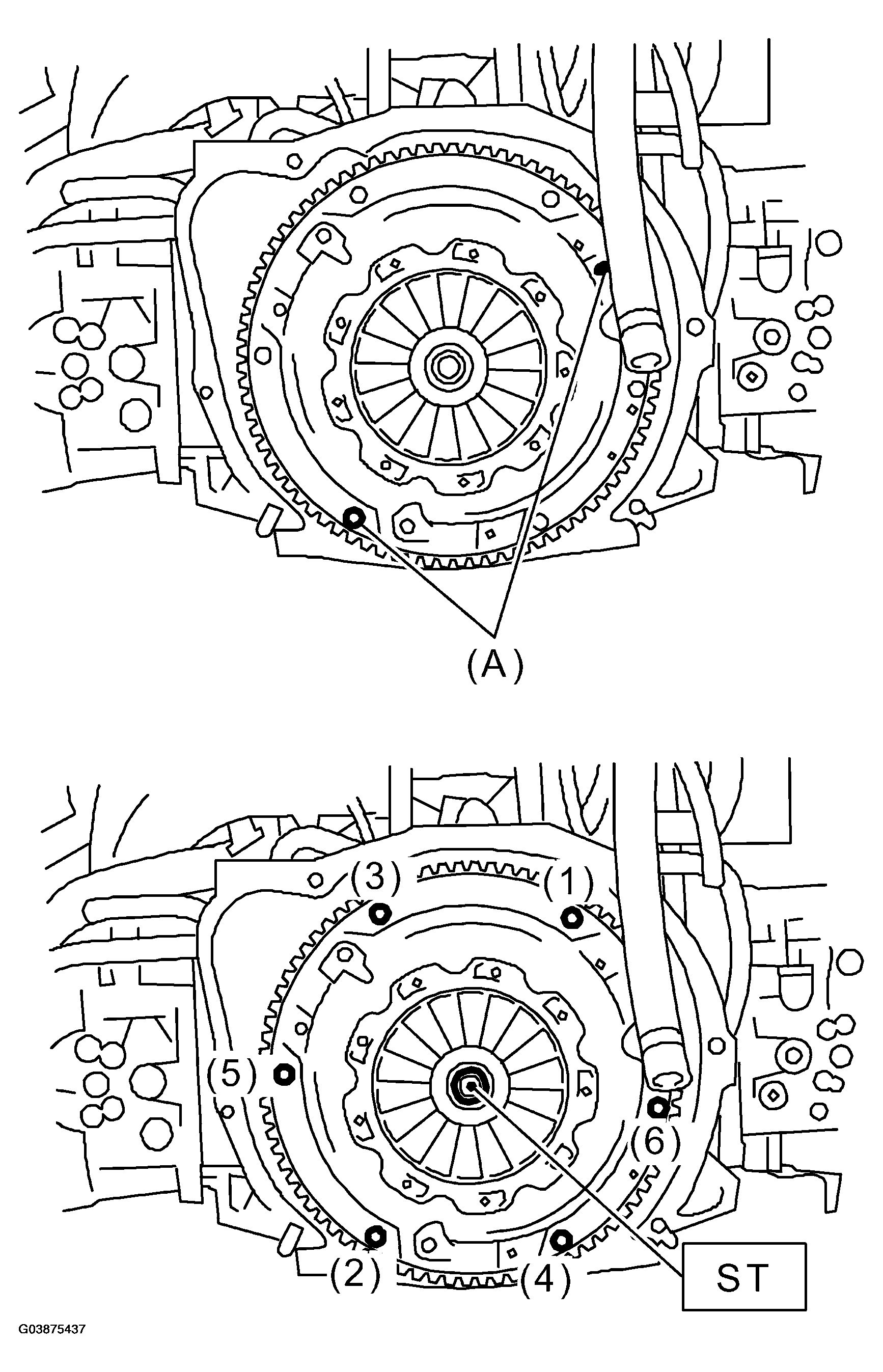

Install the clutch cover on flywheel and tighten the bolts to specified torque.
NOTE:
- When reinstalling, align the alignment marks.
- When installing a new clutch cover, position the clutch cover so that there is a gap of 120° or more between "0" marks on the flywheel and clutch cover. ("0" marks indicate the directions of residual unbalance.)
- Note the front and rear of the clutch disc when installing.
- Tighten the clutch cover installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross order.
Tightening torque:
16 Nm (1.6 kgf-m, 11.8 ft-lb)
Remove the ST.
ST 32005146 CLUTCH DISC GUIDE
Install the transmission assembly.
