Reservoir Tank: Removal

Remove the air intake duct.

Drain fluid from the reservoir tank.

Disconnect the pipe D from return hose and suction hose from oil pump.

IMPORTANT:

Do not allow fluid from the hose end to come into contact with pulley belt.
To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.

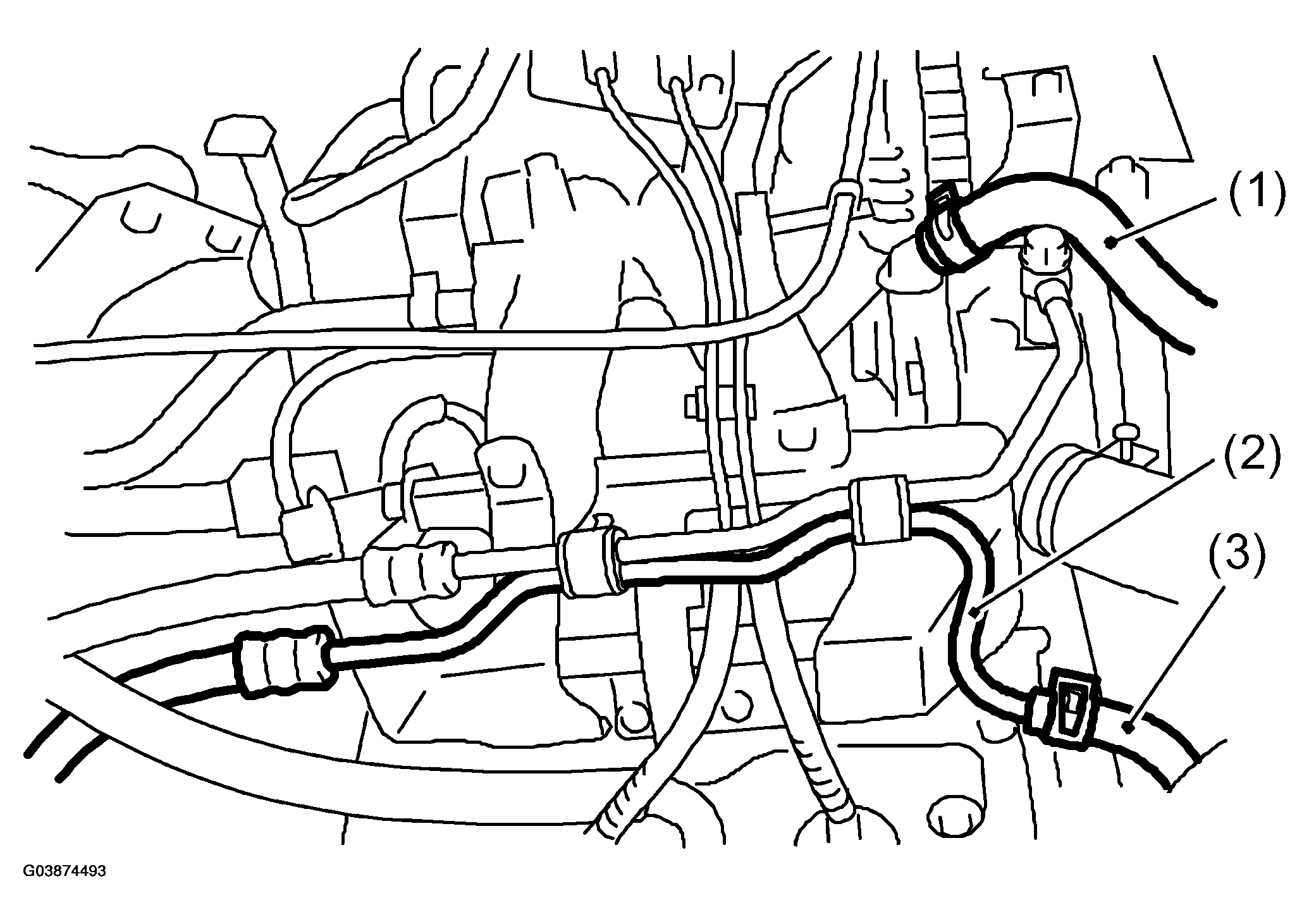

Fig 1: Disconnecting Pipe D From Return Hose And Suction Hose From Oil Pump

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the reservoir tank from bracket by pulling it upwards.
