Rear Seat Belt

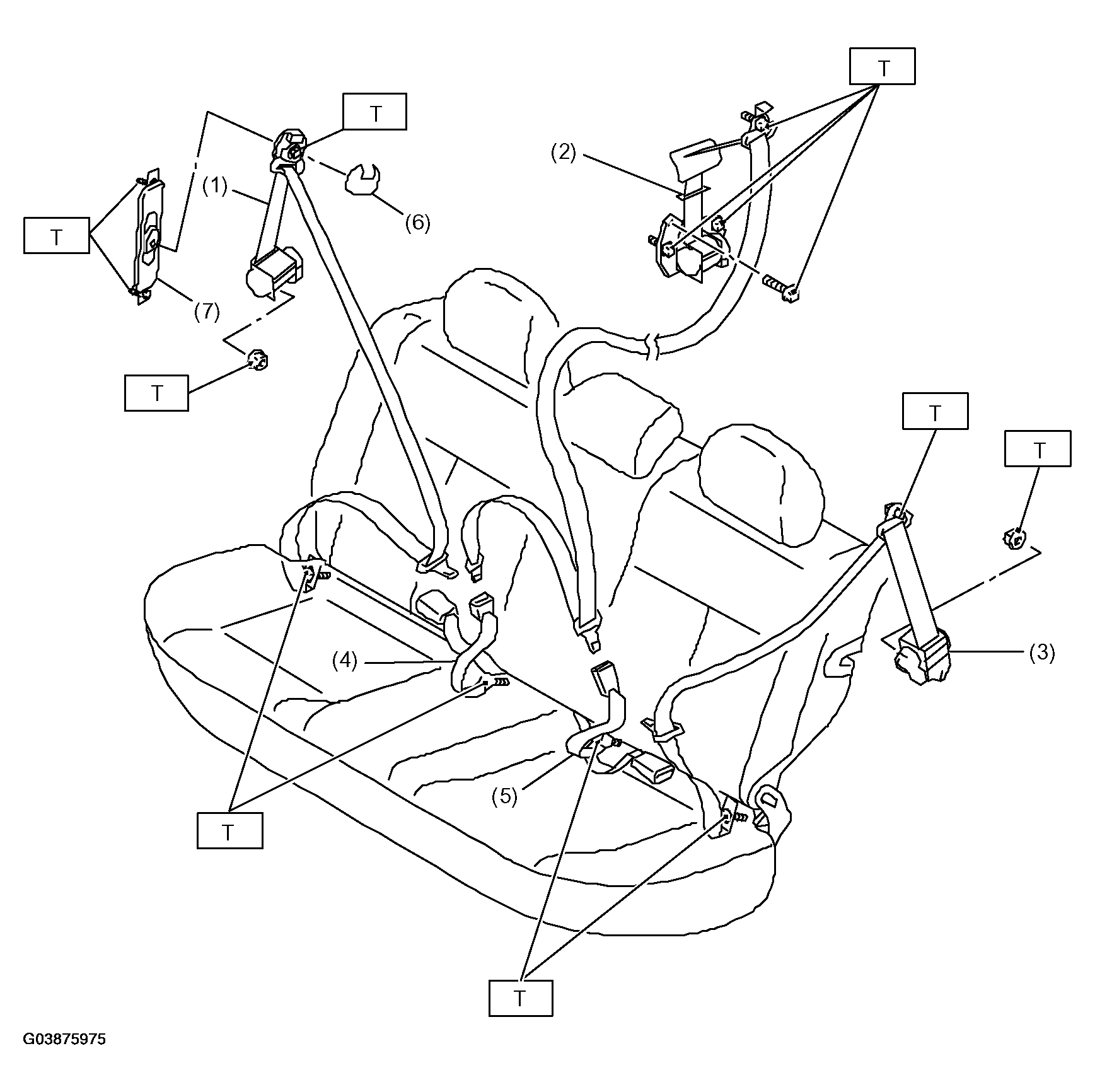

Fig 1: Exploded View Of Rear Seat Belt Components
G03875975Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Outer seat belt RH ASSY
  2. Shoulder seat belt CTR ASSY
  3. Outer seat belt LH ASSY
  4. Center seat belt RH ASSY
  5. Center seat belt LH ASSY
  6. Anchor cover
  7. Adjustable anchor ASSY

    Tightening torque: Nm (kgf-m, ft-lb)

    T: 30 (3.1, 22)
