Side Airbag Module: Installation

IMPORTANT: Refer to PRECAUTIONS before handing the airbag module.

Ensure there are no foreign particles on side airbag module.

Install the side airbag module (A) to backrest frame assembly.

Tightening torque:

5.9 Nm (0.59 kgf-m, 4.4 ft-lb)

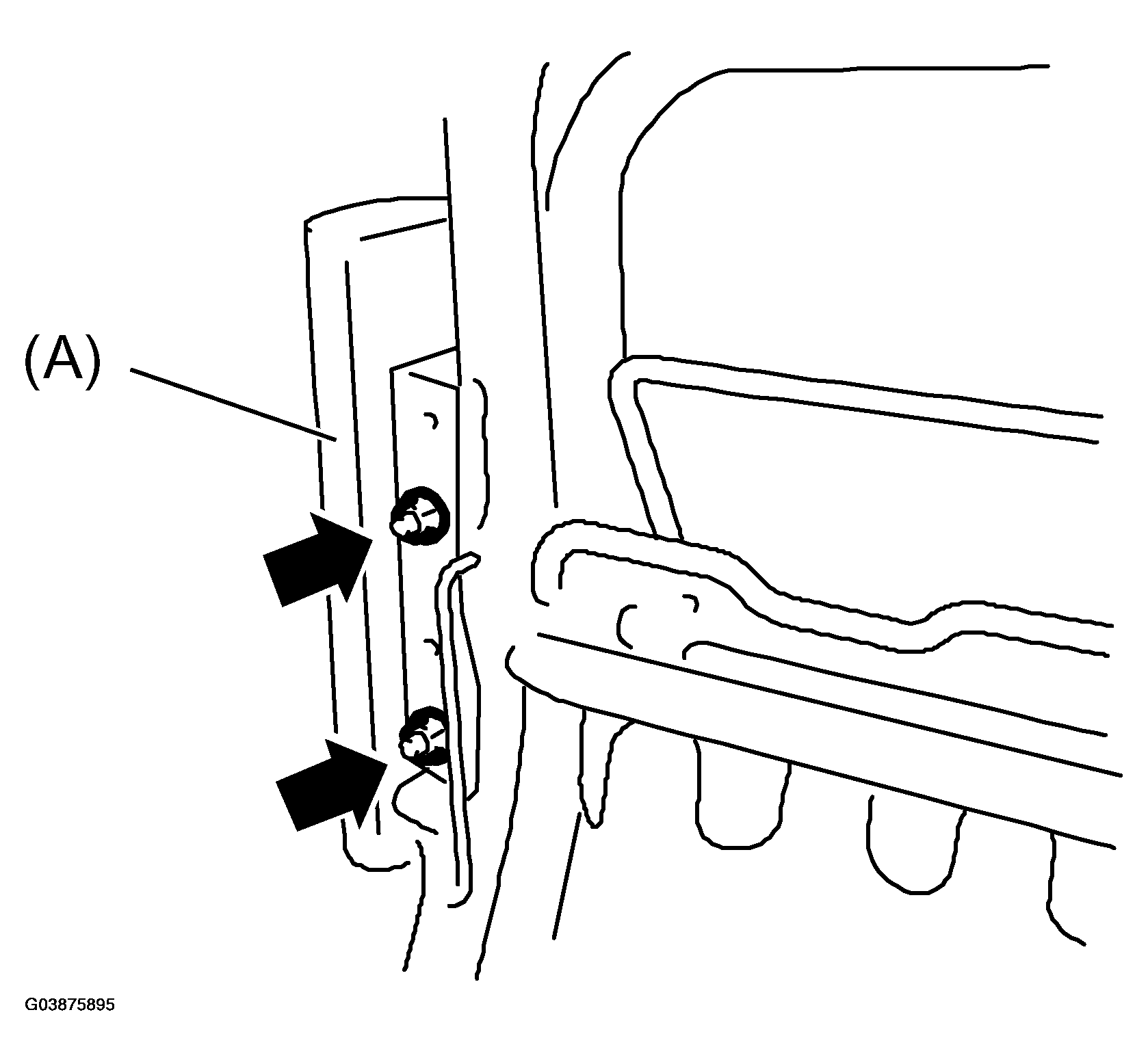

Fig 1: Installing Side Airbag Module To Backrest Frame Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the side airbag harness to backrest frame assembly.

NOTE: Secure the harness to its original position of seat.

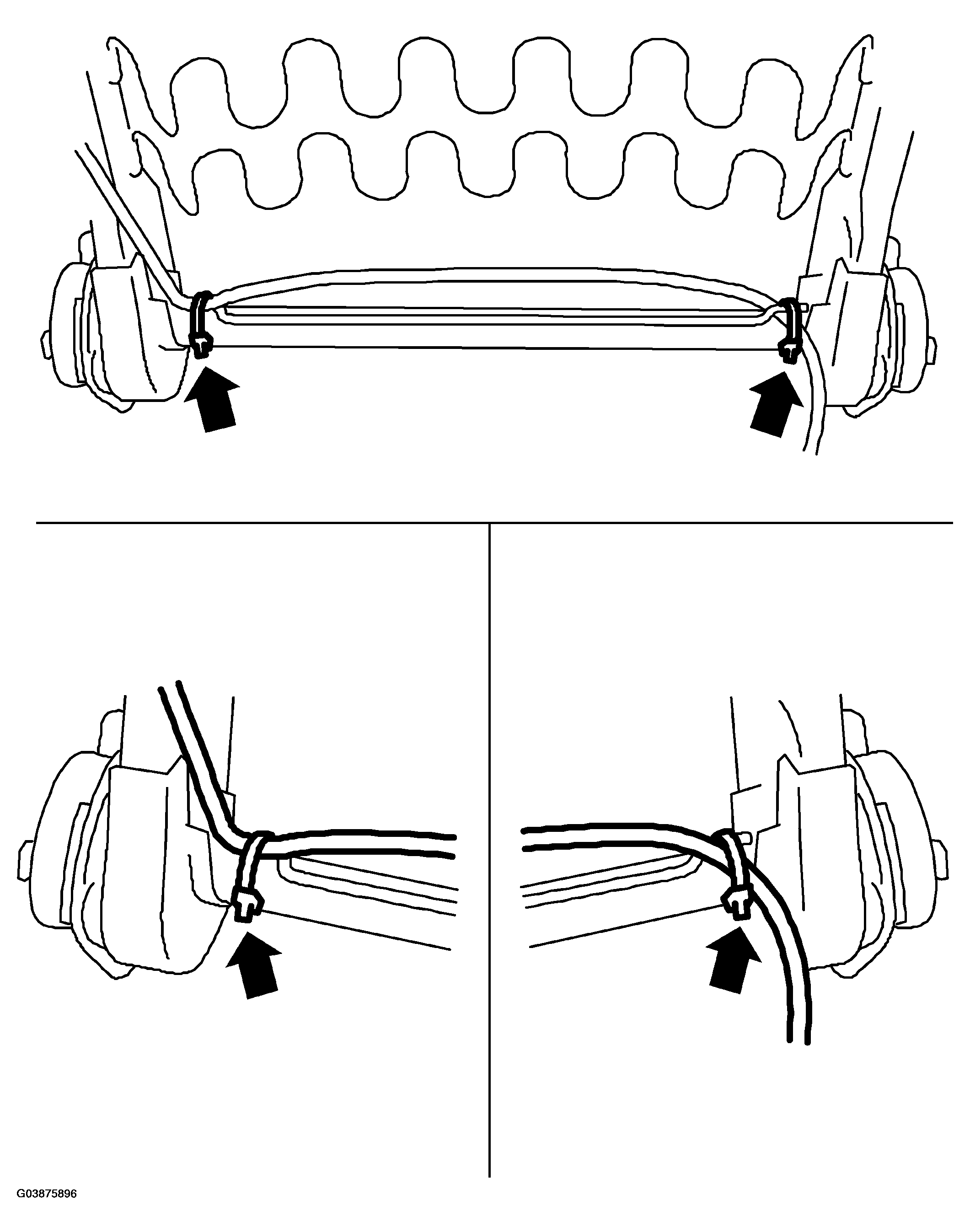

Fig 2: Installing Side Airbag Harness To Backrest Frame Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the backrest cover.

Install the side airbag harness to slide rail IN (A), and then secure the connector to the bracket on the back side of seat cushion assembly.

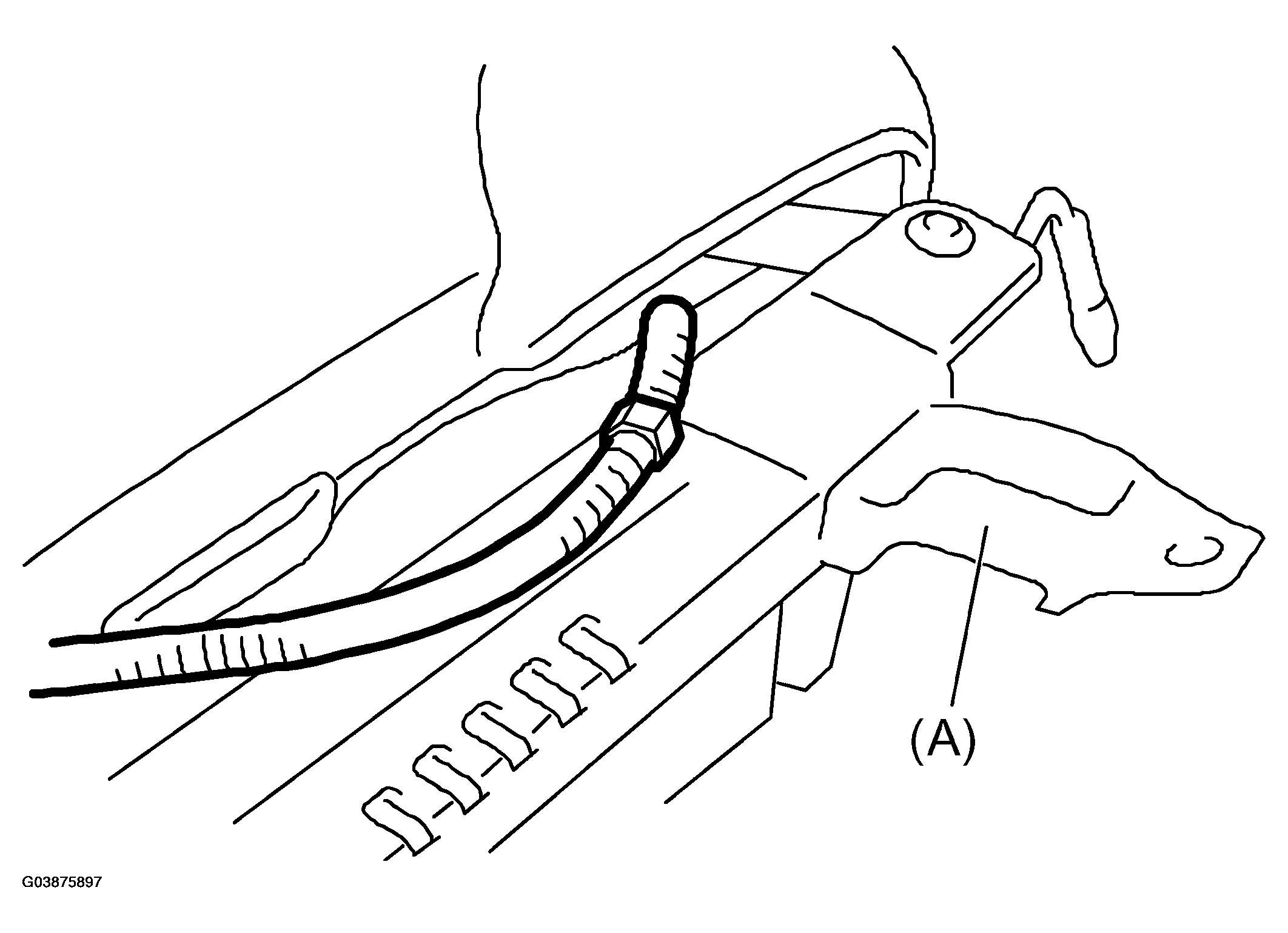

Fig 3: Installing Side Airbag Harness To Slide Rail In (A)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Recline the seat or slide it backward and forward. Check there is no contact between seat backrest assembly, cushion cover assembly and side airbag harness.
