Front Sub Sensor: Removal

Turn the ignition switch to OFF.

Disconnect the ground cable from battery, and wait for at least 20 seconds before starting work.

Remove the front bumper.

Loosen the two bolts to remove the sensor cover.

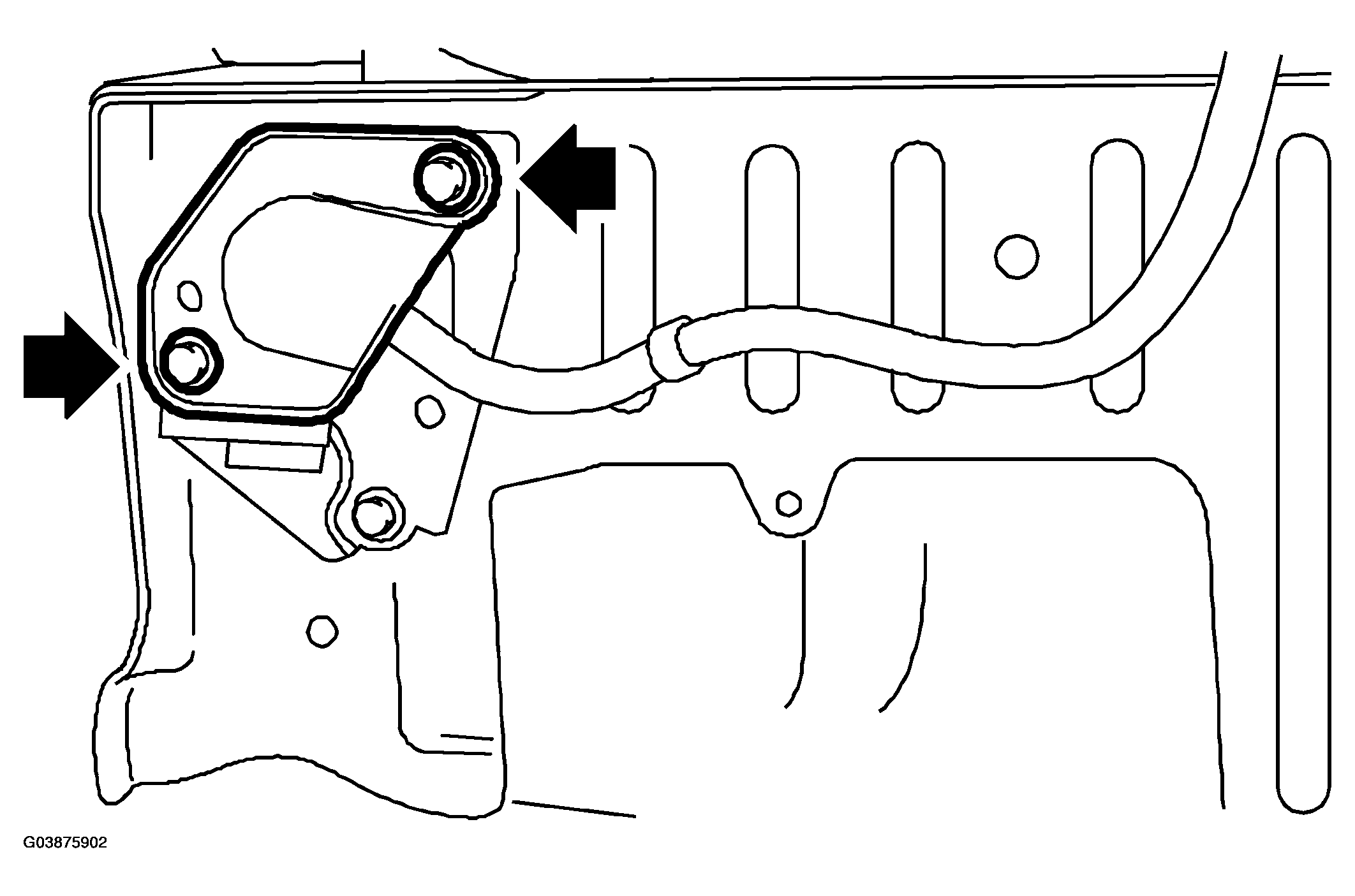

Fig 1: Identifying Sensor Cover Removing Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the bolt, and then detach the front sub sensor.

Disconnect the connector from front sub sensor.

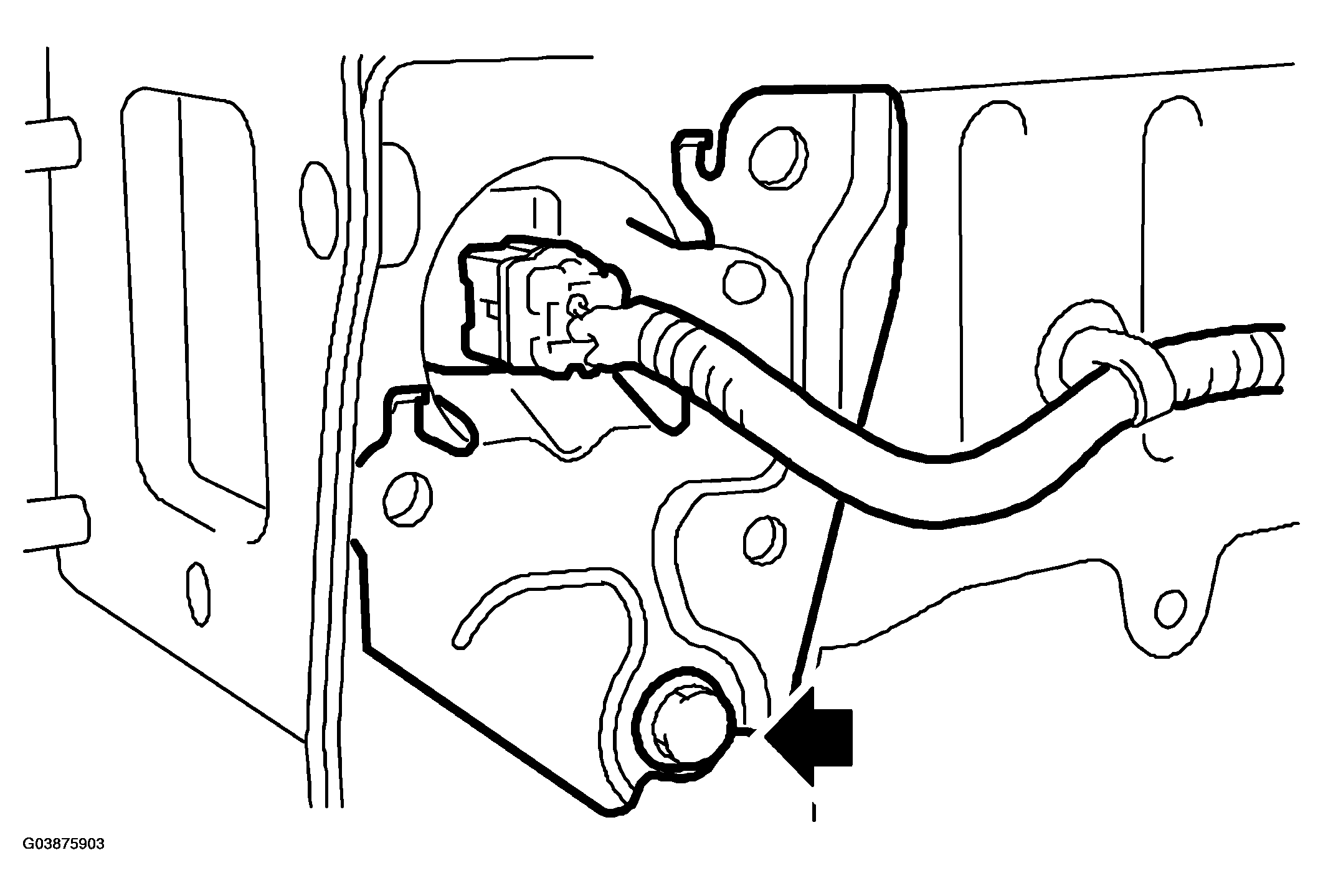

Fig 2: Identifying Front Sub Sensor Removing Bolt

Courtesy of SAAB-SCANIA OF AMERICA, INC.
