Repair and Diagnosis: Electrical: Horns: Adjustment/Replacement/Inspection: Horn: Removal

Disconnect the ground cable from battery.

Remove the front bumper

Remove the horn bracket mounting bolt (A).

Disconnect the harness connector and remove the horn assembly (B).

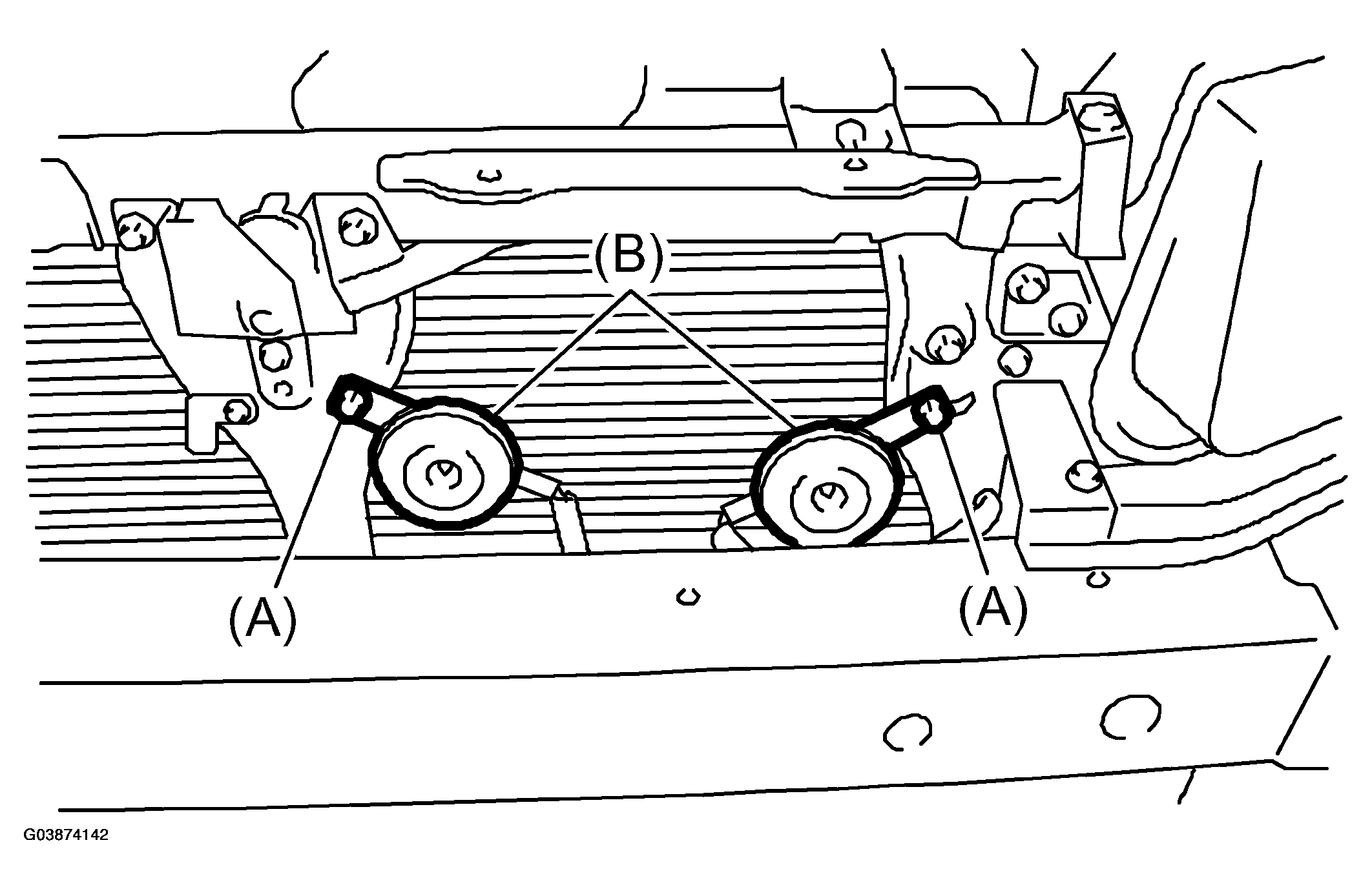

Fig 1: Removing Horn Bracket Mounting Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.
