Passenger Compartment

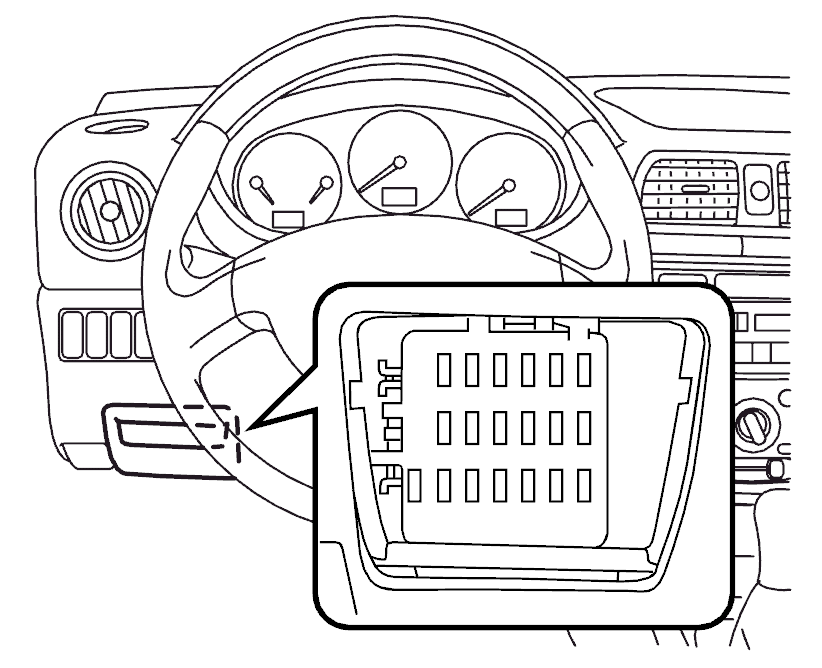

Passenger compartment fuse box is located behind driver's side coin tray.

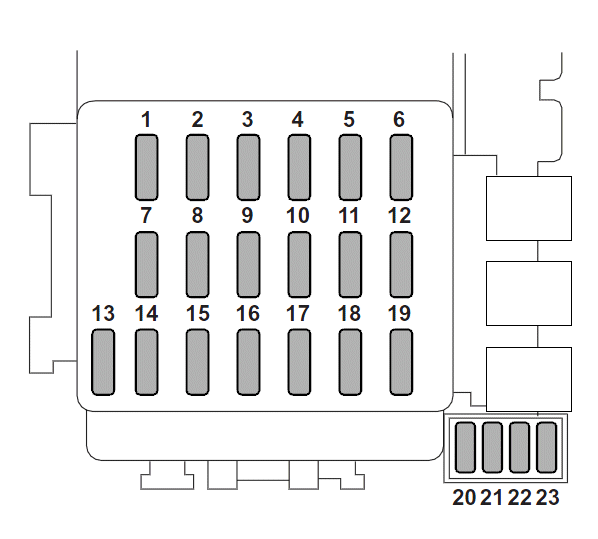

Passenger Compartment Fuse Box
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| 1 | 15A | Heater Fan |
| 2 | 15A | Heater Fan |
| 3 | 15A | Power Door Lock, Remote Keyless Entry |
| 4 | 20A | Clgarette Lighter, Remote Controlled Rear View Mirrors |
| 5 | 10A | Taillight, Parking Light |
| 6 | 15A | SRS Airbag |
| 7 | 15A | Fog Light |
| 8 | 20A | ABS Solenoid |
| 9 | 15A | Radio |
| 10 | - | Empty |
| 11 | 15A | Engine Ignition System, SRS Airbag, AT Control System |
| 12 | 10A | Illumination Brightness Control |
| 13 | 10A | Combination Meter, SRS Lamp |
| 14 | 10A | Rear Window Wiper and Washer |
| 15 | 30A | Windshield Wiper and Washer |
| 16 | 20A | Brake Light |
| 17 | 15A | Air Conditioner |
| 18 | 15A | Backup Light, Cruise Control |
| 19 | 20A | Mirror Heater |
| 20 | - | Empty |
| 21 | 15A | Ignition Coil |
| 22 | 10A | ABS Ignition |
| 23 | 20A | Seat Heater |
