Engine Compartment

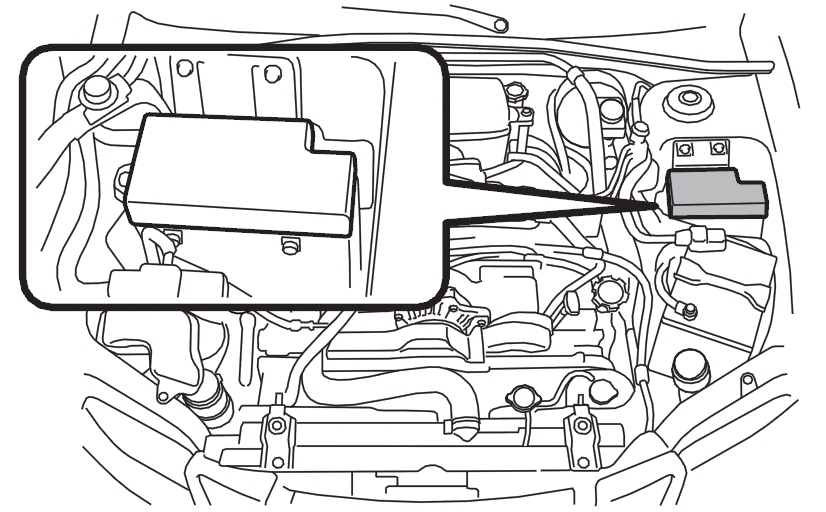

Underhood Fuse/Relay Box is located left side of engine compartment.

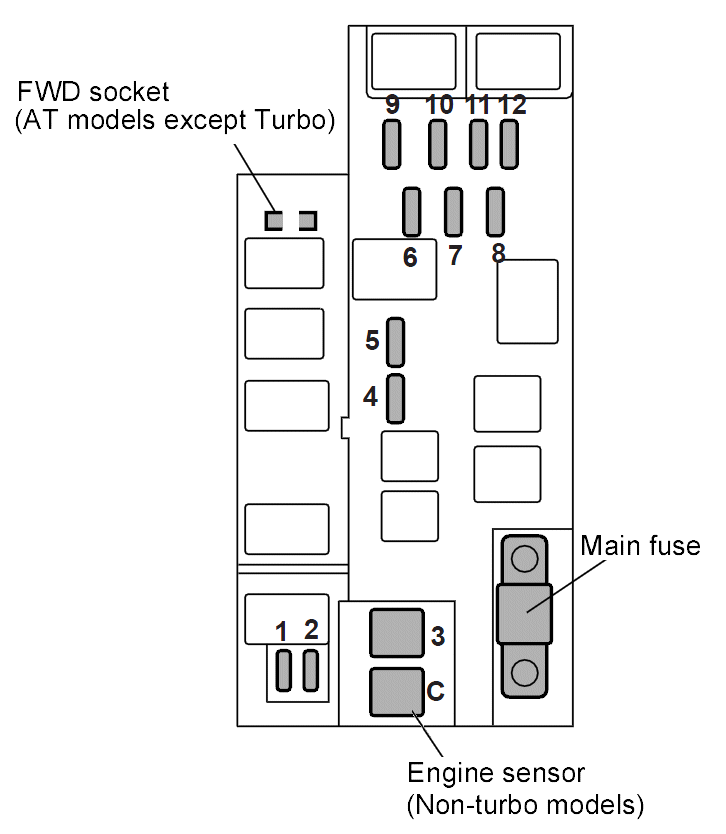

Underhood Fuse/Relay Box
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| 1 | 20A | Radiator Cooling Fan (Main) |
| 2 | 20A | Radiator Cooling Fan (Sub) |
| 3 | 30A | ABS Motor |
| 4 | 20A | Rear Wlndow Defogger |
| 5 | 15A | Hazard Warning Flasher, Horn |
| 6 | 15A | Turn Signal Lights |
| 7 | 10A | Automatic Transmission Control Unit |
| 8 | 10A | Alternator |
| 9 | 15A | Head Light (Right Side) |
| 10 | 15A | Head Light (Left side) |
| 11 | 20A | Lighting Switch |
| 12 | 20A | Clock, Interior Light |
