Rear Differential Mounting System

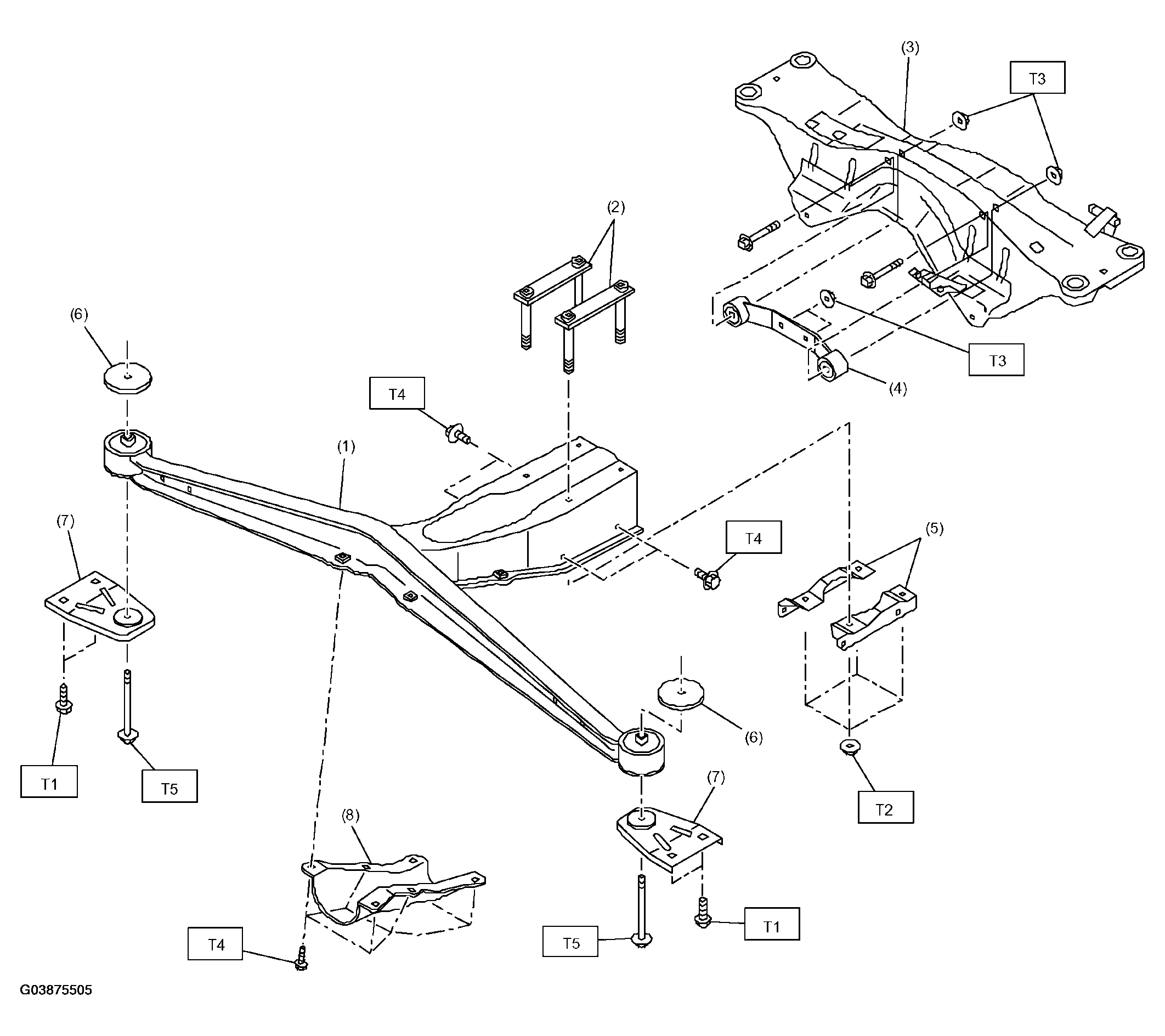

Fig 1: Identifying Rear Differential Mounting System Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Differential front member
2. Plate
3. Crossmember
4. Differential rear member
5. Differential mount lower bracket
6. Stopper
7. Differential mount bracket
8. Differential mount front cover

Tightening torque: Nm (kgfm, ft-lb)

T1: 33 (3.4, 24.3)

T2: 60 (6.1, 44.3)

T3: 70 (7.1, 51.6)

T4: 90 (9.2, 66.4)

T5: 100 (10.2, 73.8)
