Rear Differentials: Removal

Set the vehicle on a lift.

Disconnect the ground cable from battery.

Move the select lever or gear shift lever to "N".

Release the parking brake.

Loosen the wheel nuts.

Jack-up the vehicle and support it with sturdy racks.

Remove the wheels.

Remove the rear exhaust pipe and muffler.

Saab 9-2X 2.5i Linear

and

Saab 9-2X 2.0T Aero

and

Remove the heat shield cover. (If equipped)

Remove the front cover of rear differential mount.

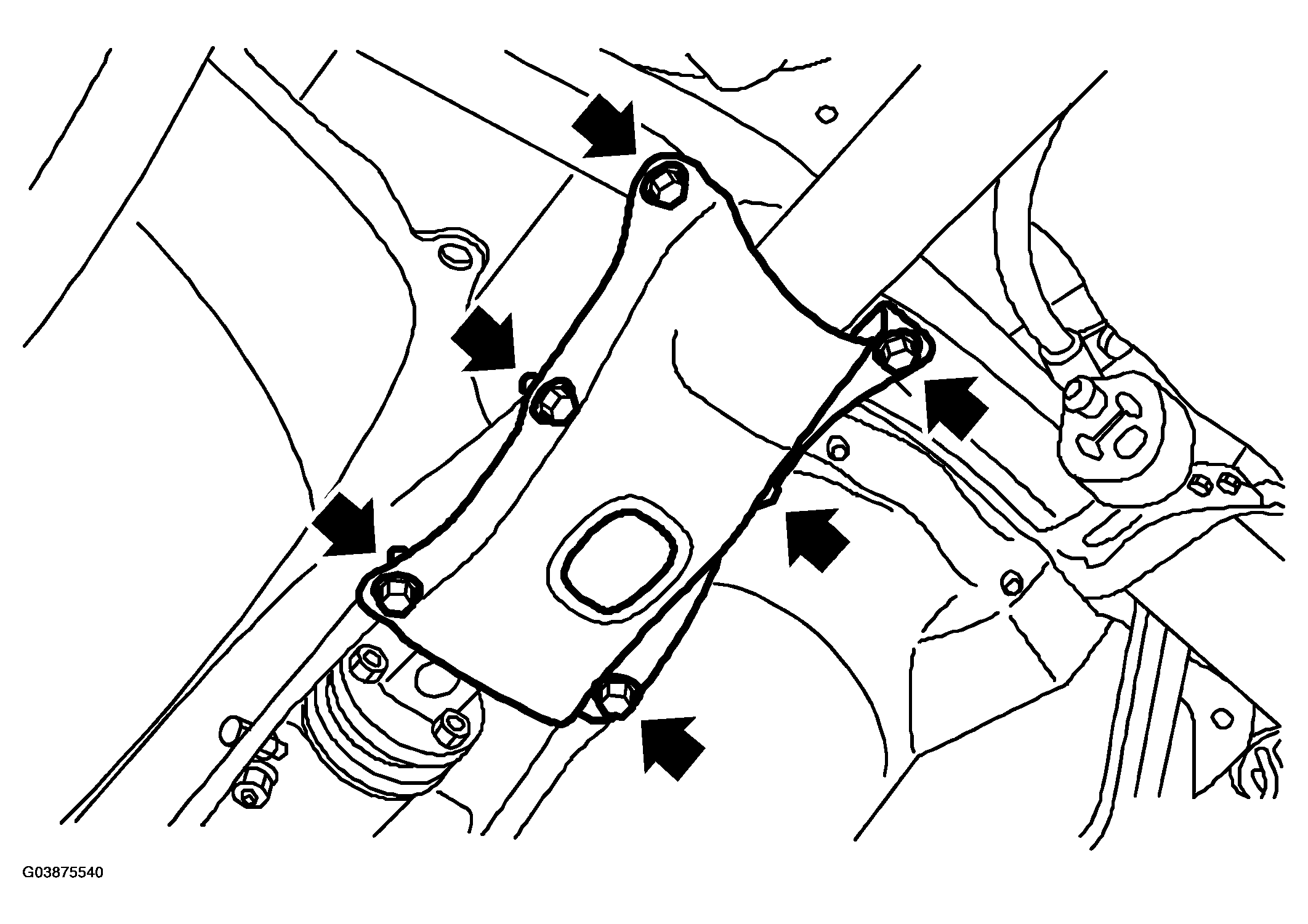

Fig 1: Removing Heat Shield Cover

G03875540

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the propeller shaft.

Remove the rear differential protector. (If equipped)

Remove the clamps and bracket of parking brake cable.

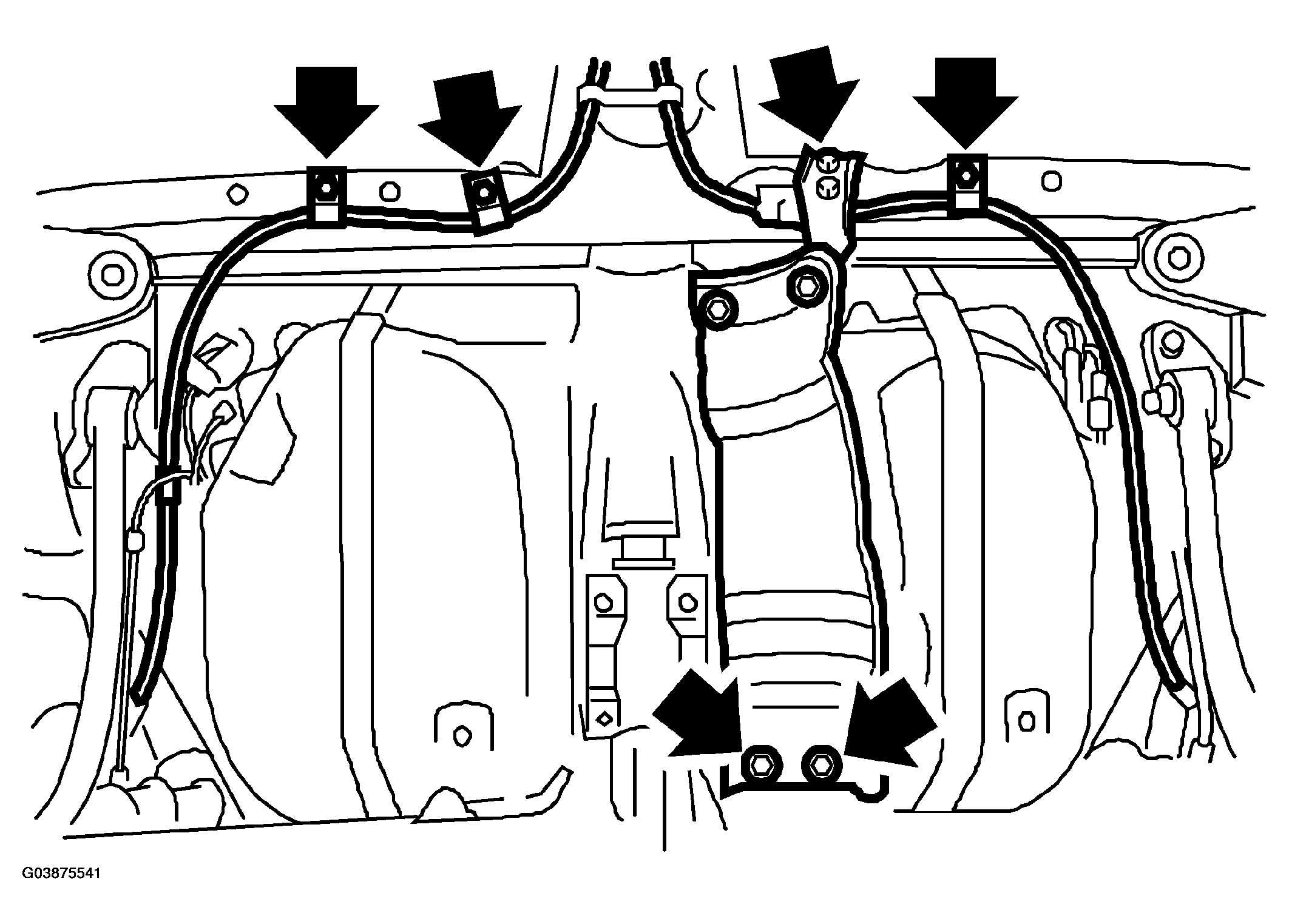

Fig 2: Removing Rear Differential Protector

G03875541

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the DOJ of rear drive shaft from rear differential using ST.

ST 32005038 DRIVE SHAFT REMOVER

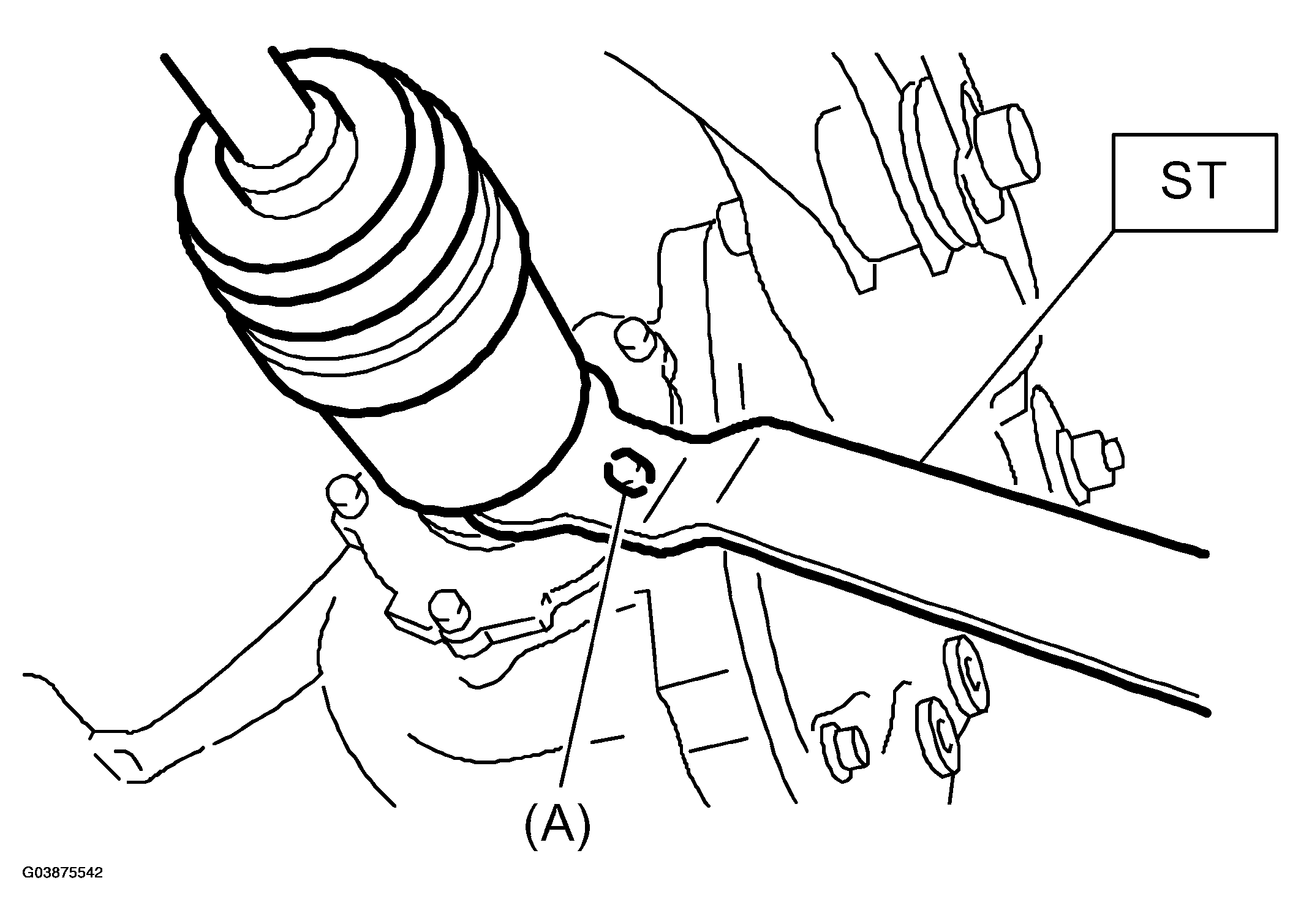

Fig 3: Removing DOJ Of Rear Drive Shaft From Rear Differential

G03875542

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Bolt

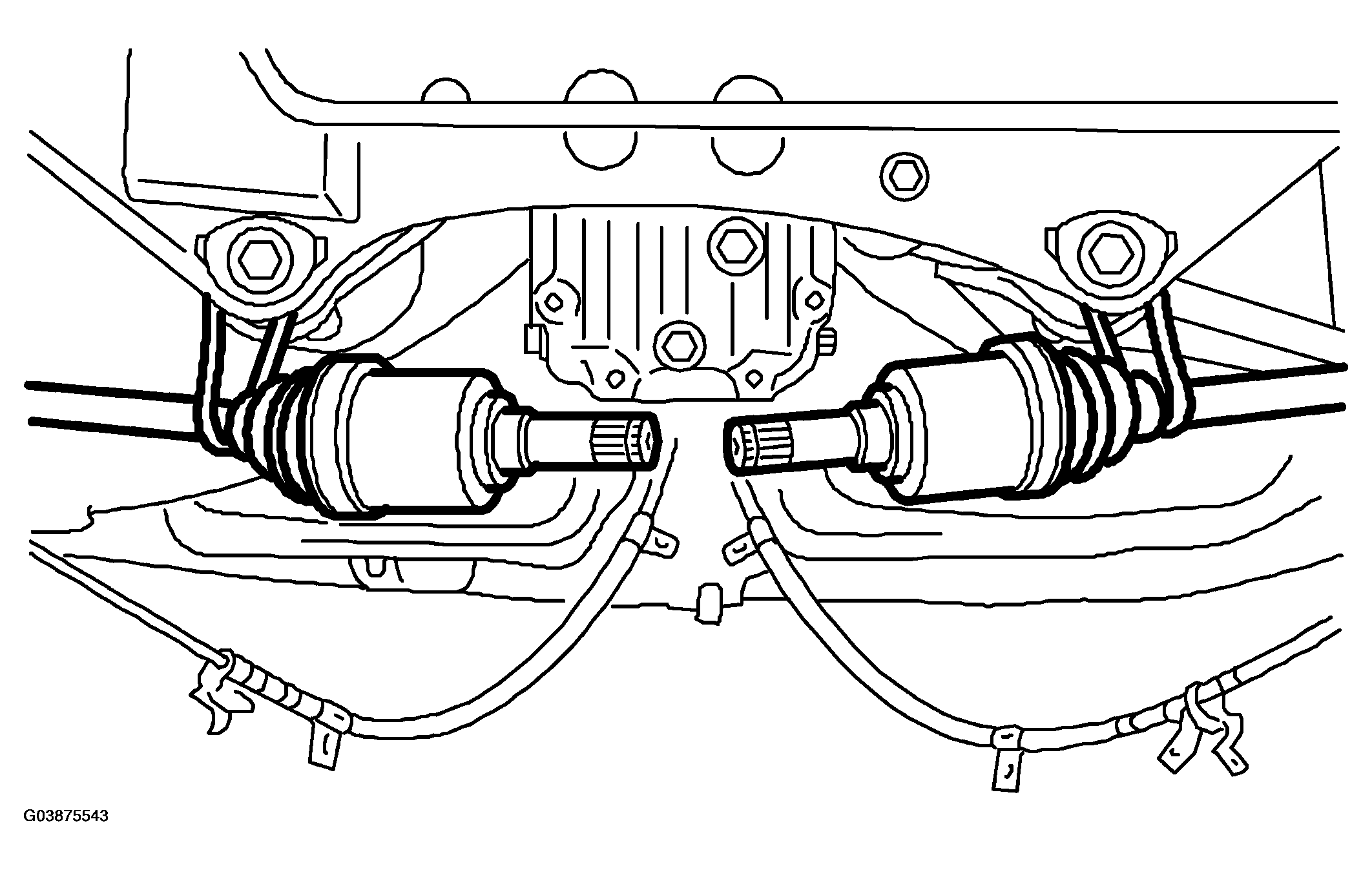

Secure the rear drive shaft to rear crossmember using wire.

Fig 4: Securing Rear Drive Shaft To Rear Crossmember

G03875543

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the lower bracket.

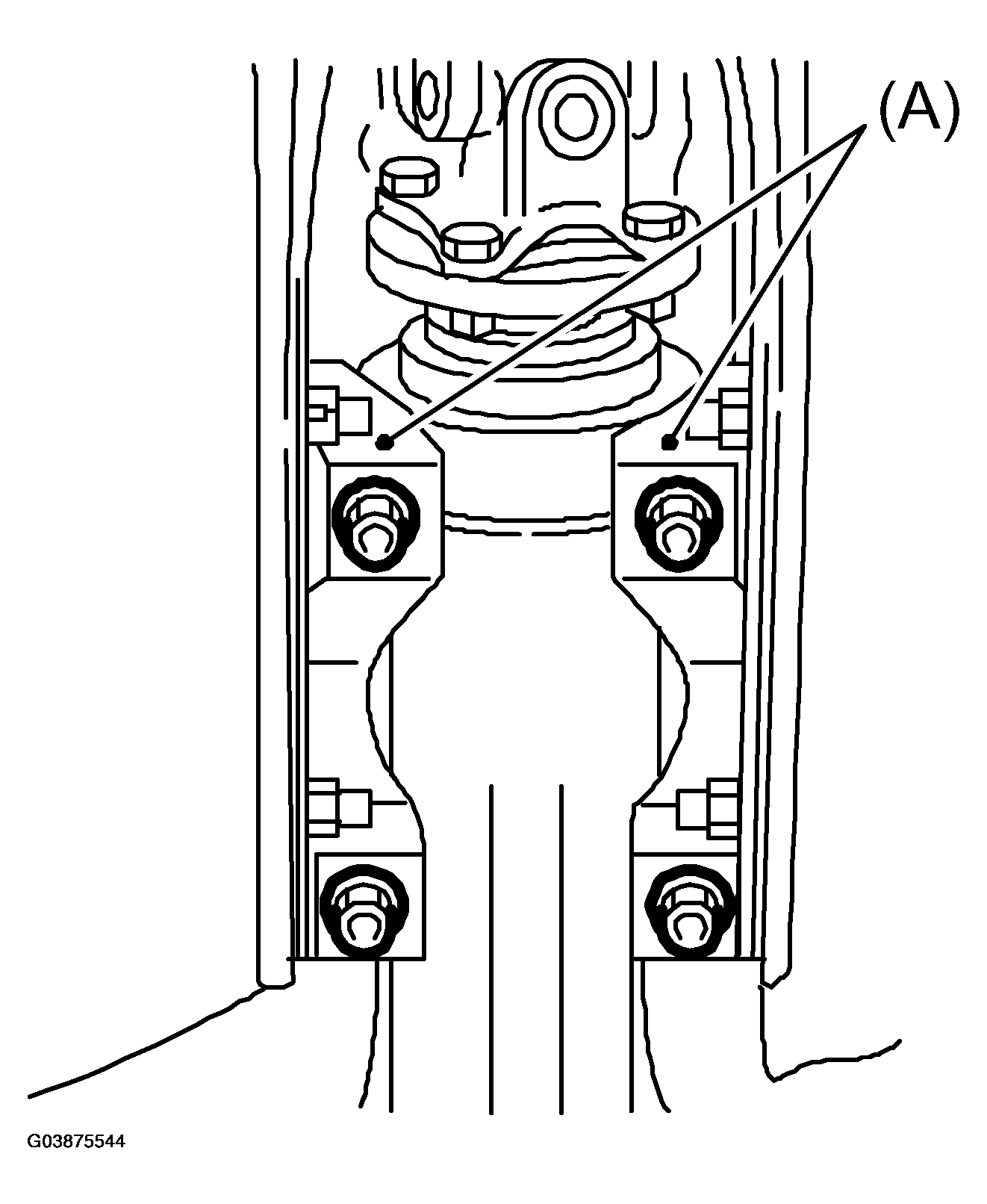

Fig 5: Removing Lower Bracket

G03875544

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Lower bracket

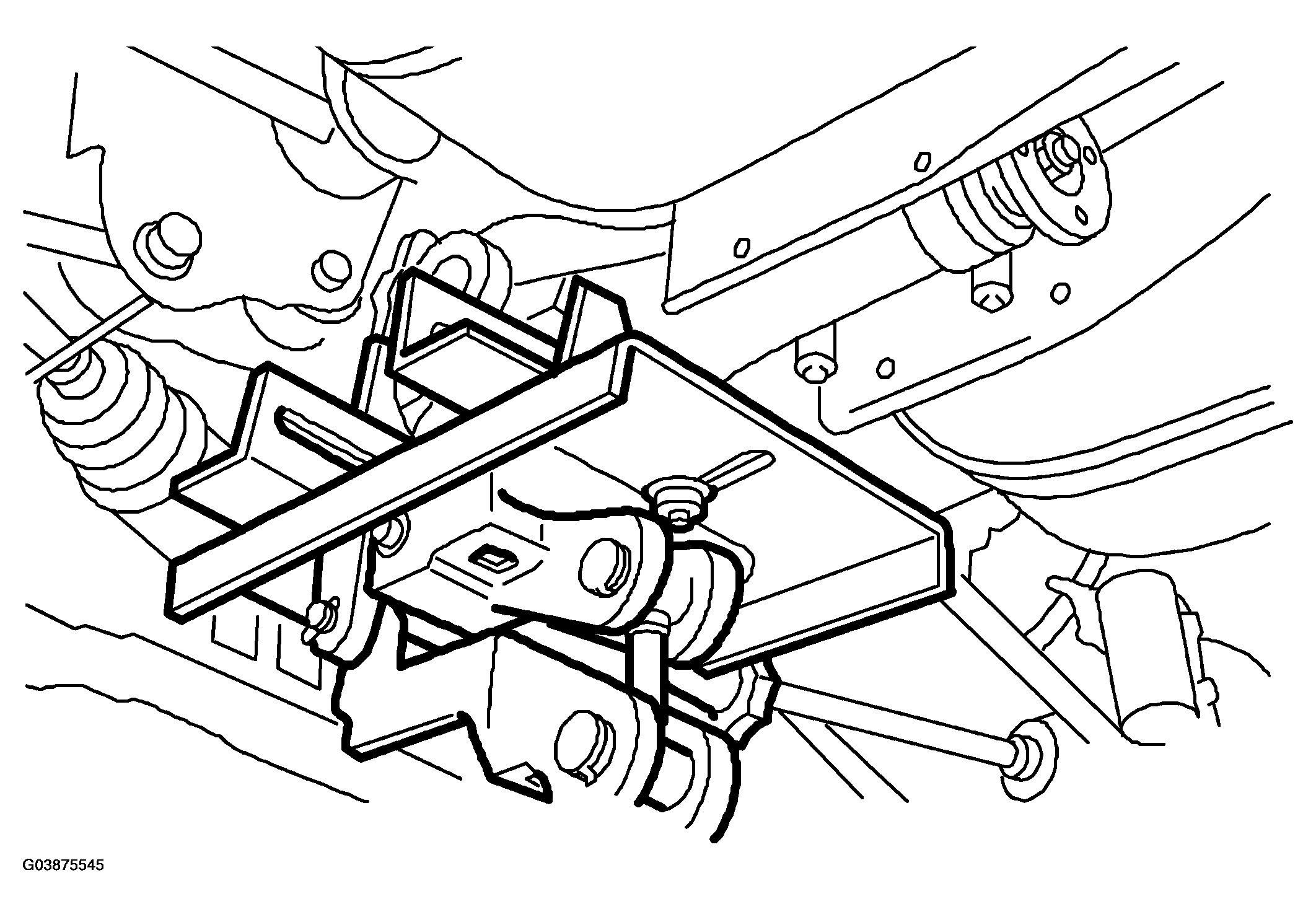

Support the rear differential with transmission jack.

Fig 6: Supporting Rear Differential With Transmission Jack

G03875545

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the self-locking nuts and bolts.

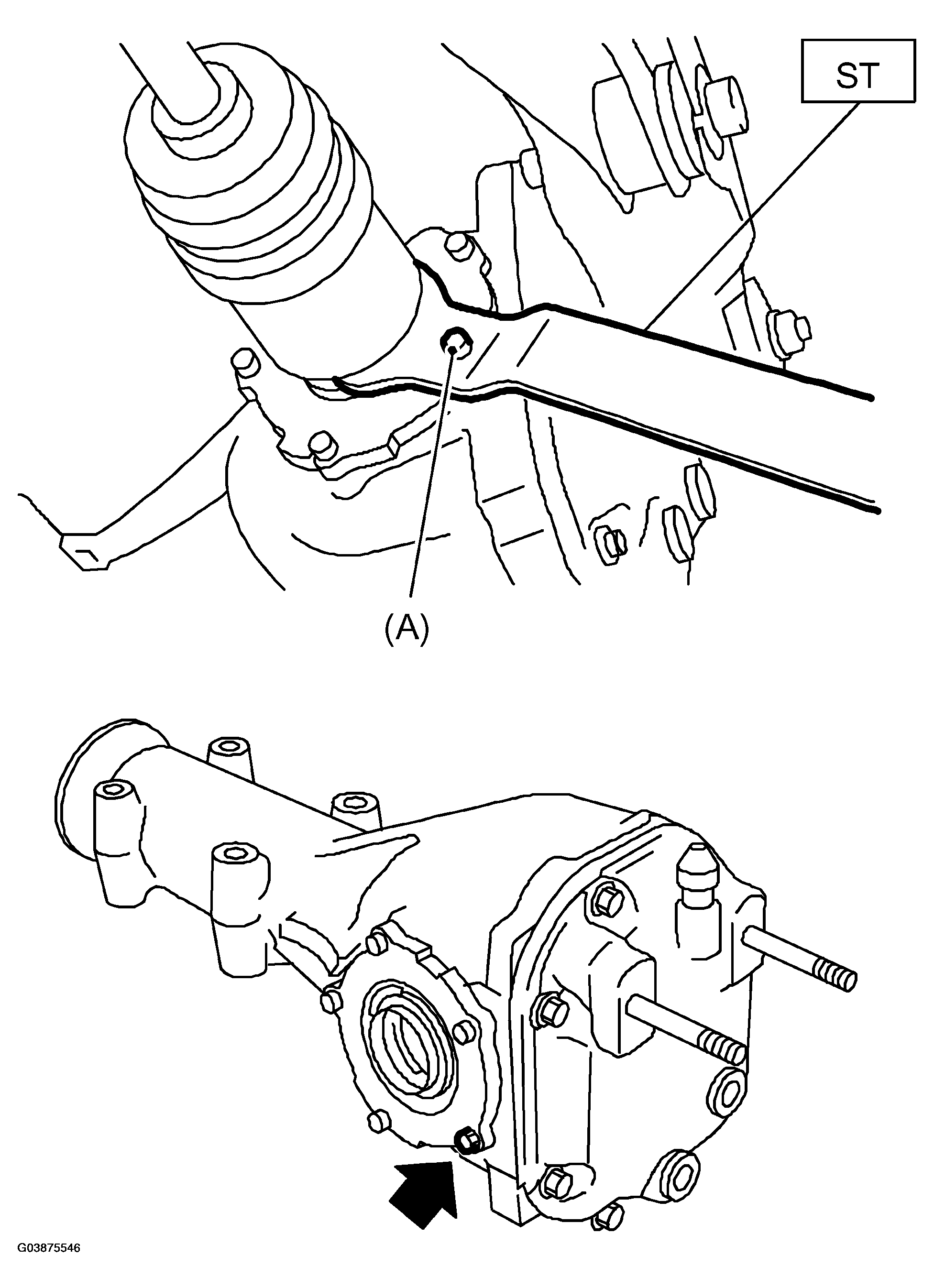

Fig 7: Removing Self-Locking Nuts And Bolts

G03875546

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the bolts which secure the rear differential front member to body.

Loosen the bolt A first, then remove the bolts B.

NOTE: Support the front member with use of a helper to prevent it from dropping.

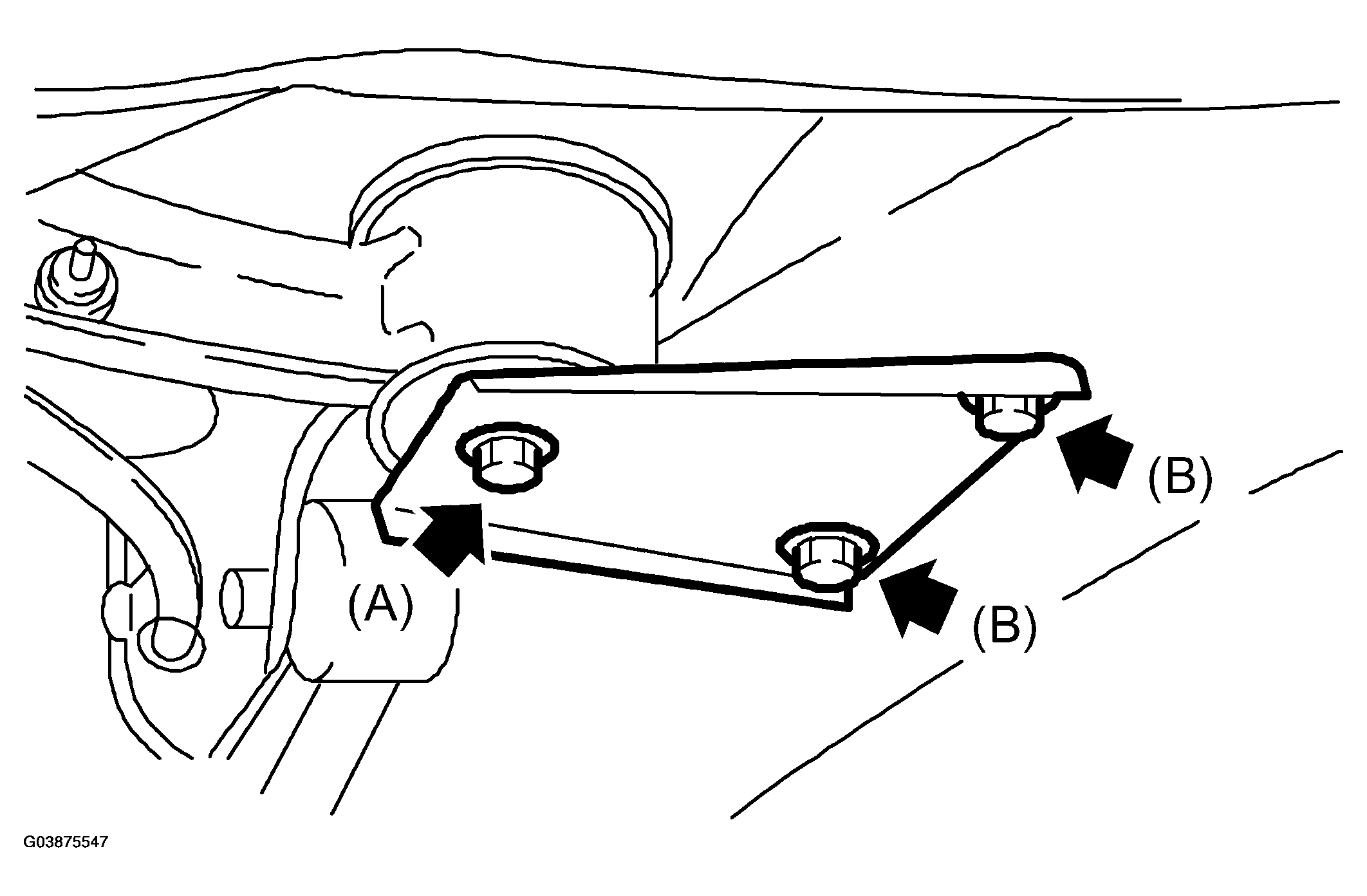

Fig 8: Removing Rear Differential Front Member To Body

G03875547

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Bolt A
Bolt B

Remove the bolt A.

While slowly lowering the transmission jack, move the rear differential forward and remove front member and rear differential from vehicle.

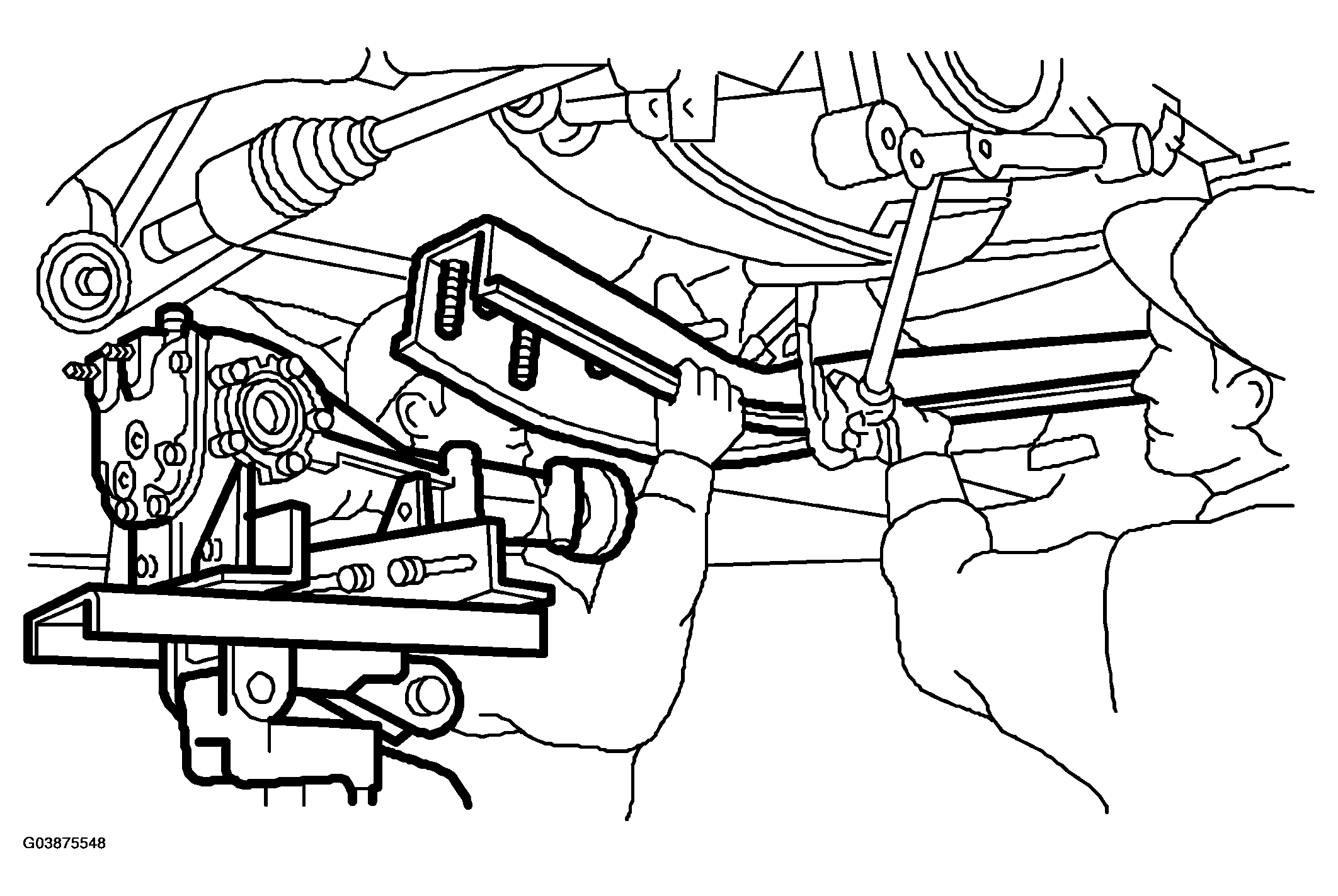

Fig 9: Removing Front Member Differential From Vehicle

G03875548

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the rear differential from vehicle.

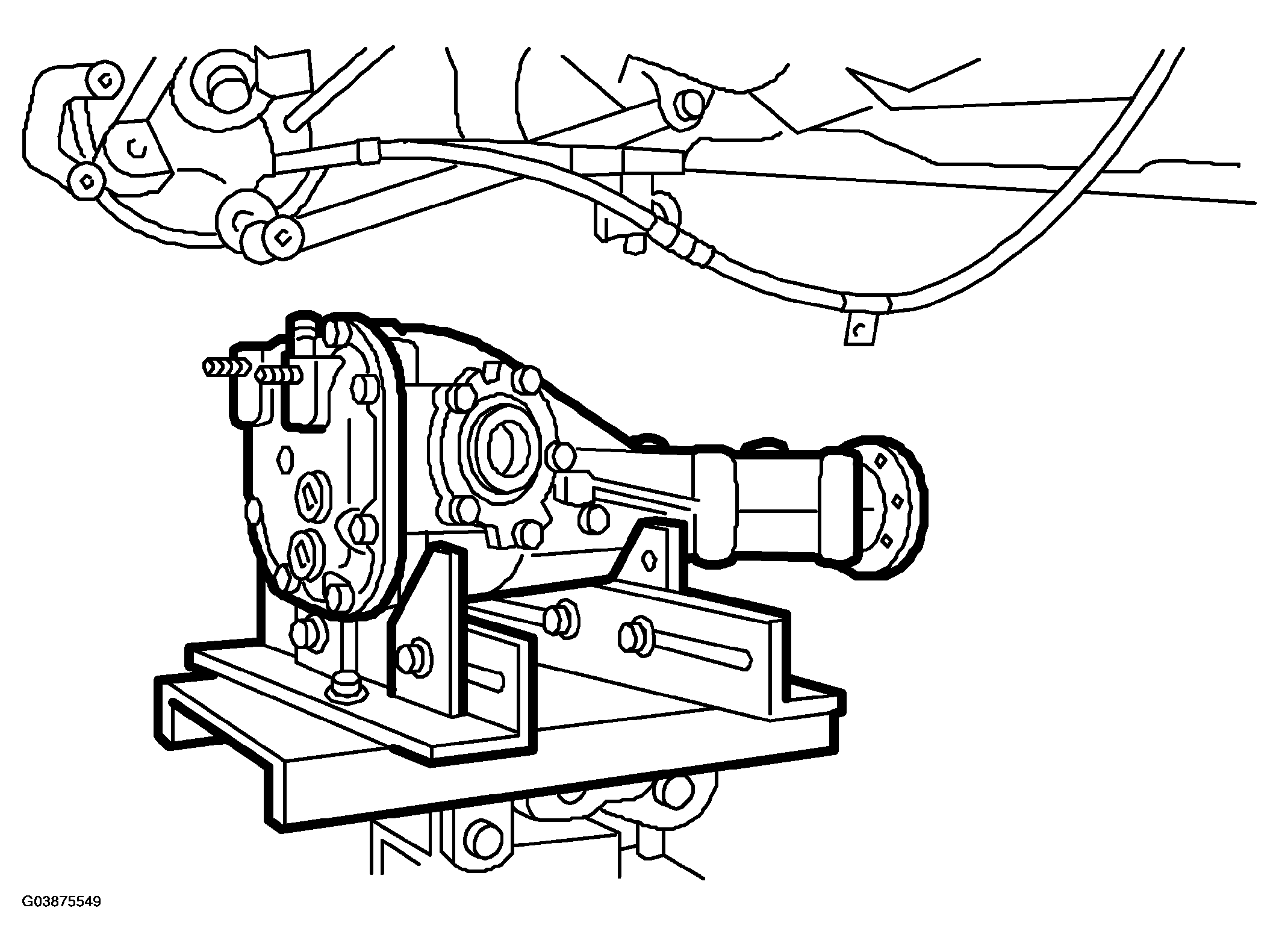

Fig 10: Removing Rear Differential From Vehicle

G03875549

Courtesy of SAAB-SCANIA OF AMERICA, INC.
