Rear Differential Member: Installation

Position the front member on body by passing it under the parking brake cable and securing to rear differential.

NOTE: When installing the rear differential front member, do not confuse the installation sequence of the stopper.

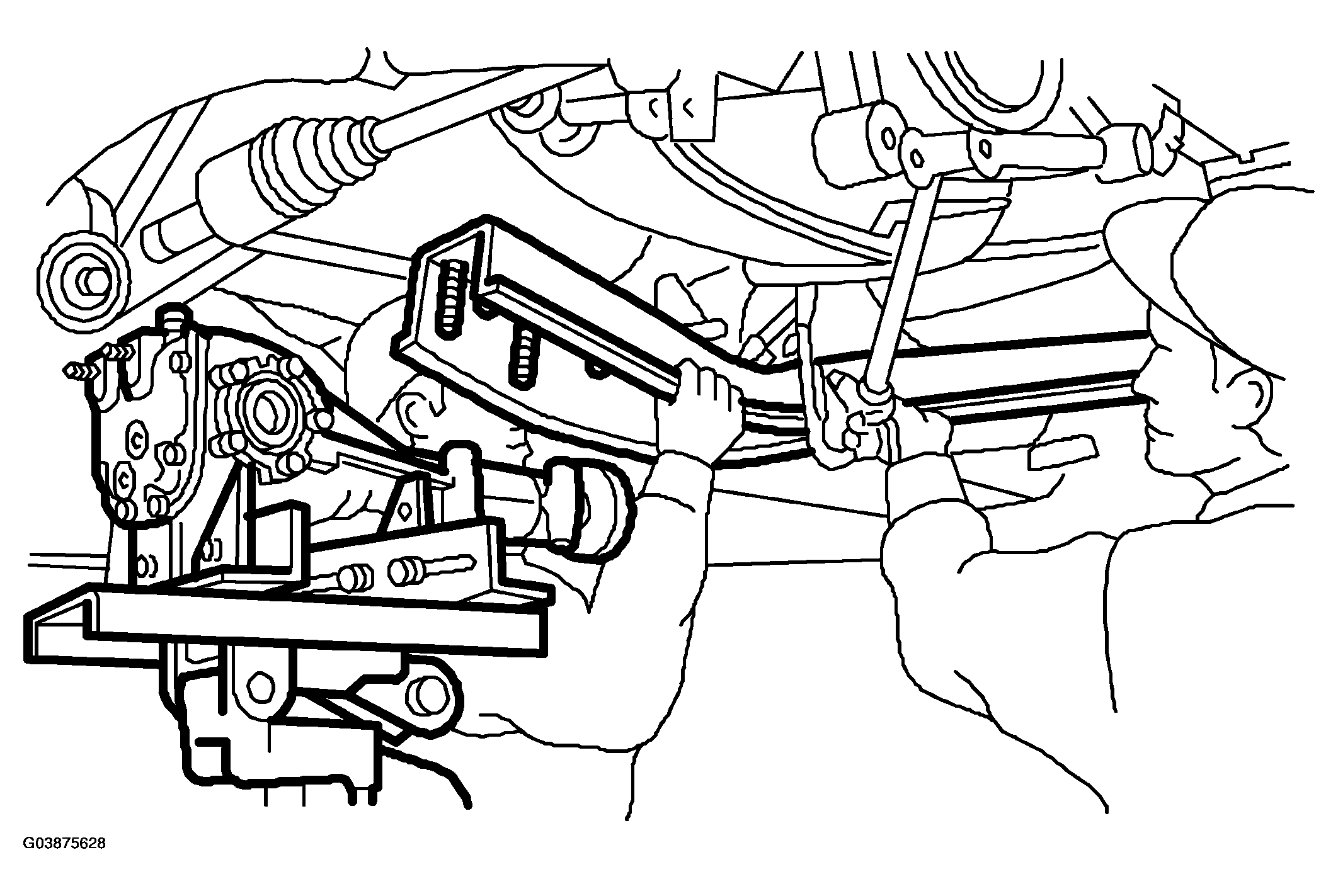

Fig 1: Positioning Front Member On Body

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Insert the DOJ of rear drive shaft into rear differential.

NOTE: Before inserting, replace the differential side oil seal with a new one.

ST 32005037 SIDE OIL SEAL PROTECTOR

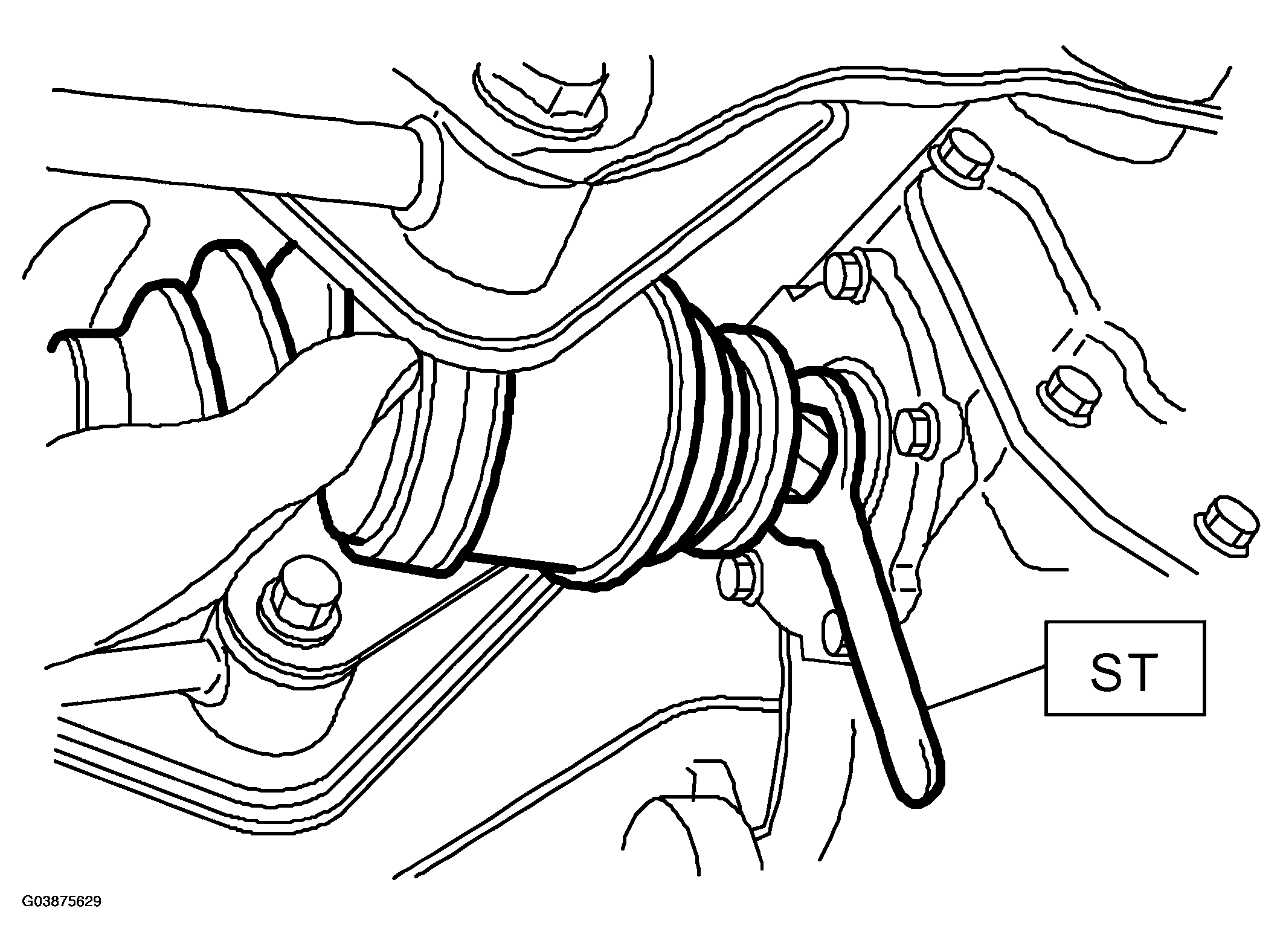

Fig 2: Inserting DOJ Of Rear Drive Shaft Into Rear Differential

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Hereafter, install in the reverse order of removal.
