Rear Seat: Disassembly

Remove the rear seat.

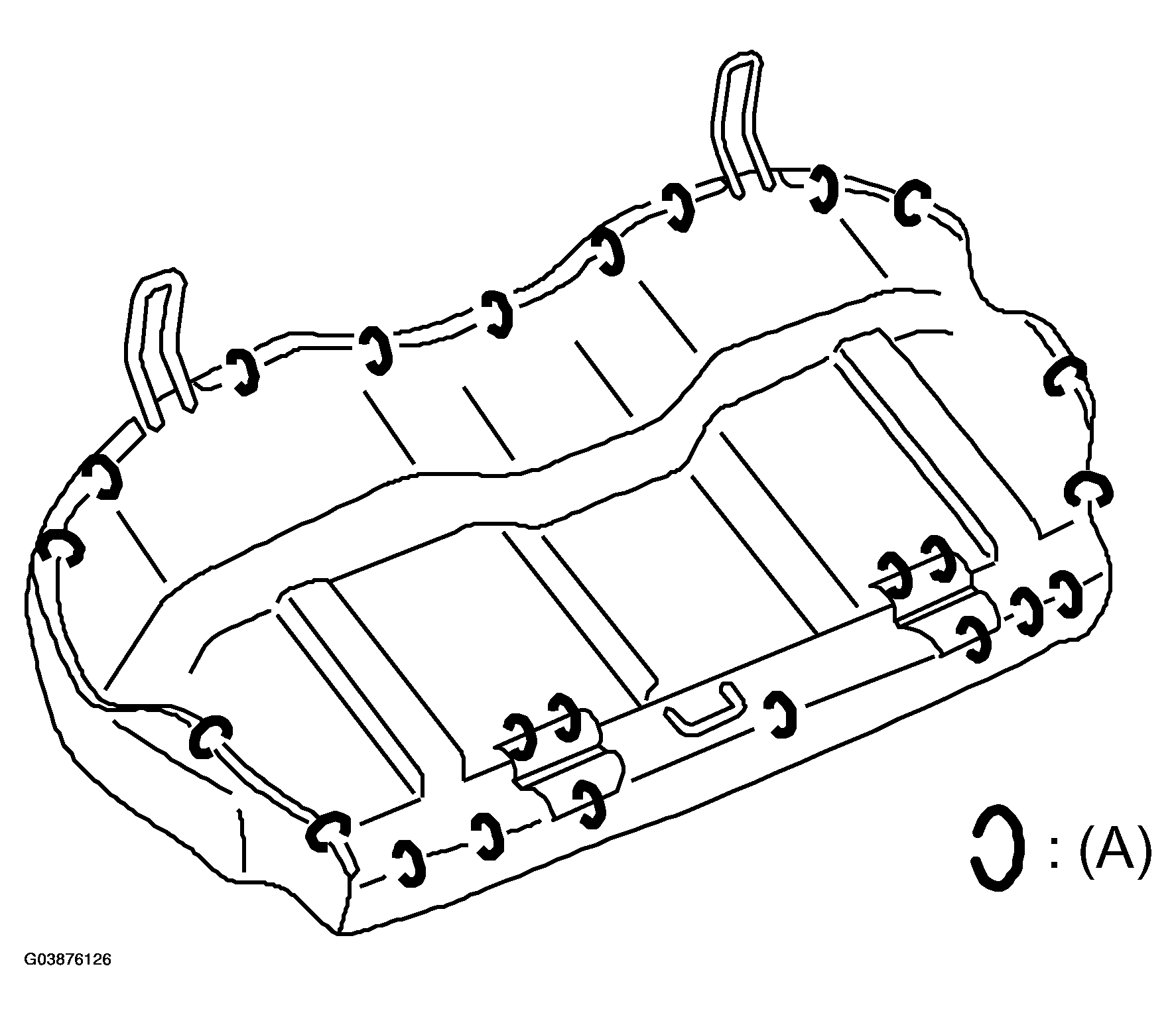

Remove the hog rings (A) behind of seat backrest.

Fig 1: Removing Hog Rings Behind Of Seat Backrest

Courtesy of SAAB-SCANIA OF AMERICA, INC.

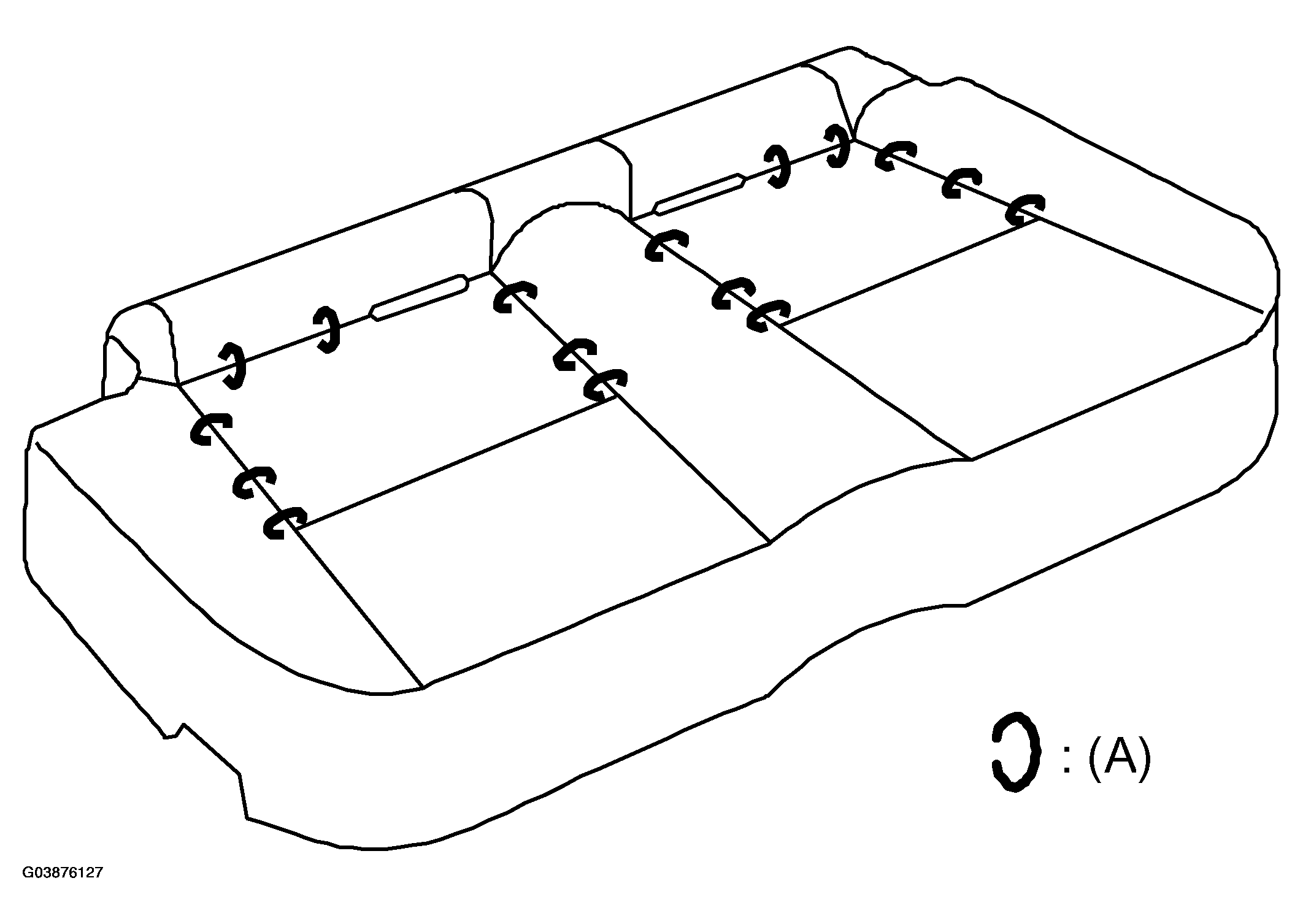

Remove the hog rings (A) on front side of cushion pad, and remove the cover.

Fig 2: Removing Hog Rings On Front Side Of Cushion Pad

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the hog rings (A) behind of seat cushion.

Fig 3: Removing Hog Rings Behind Of Seat Cushion

Courtesy of SAAB-SCANIA OF AMERICA, INC.

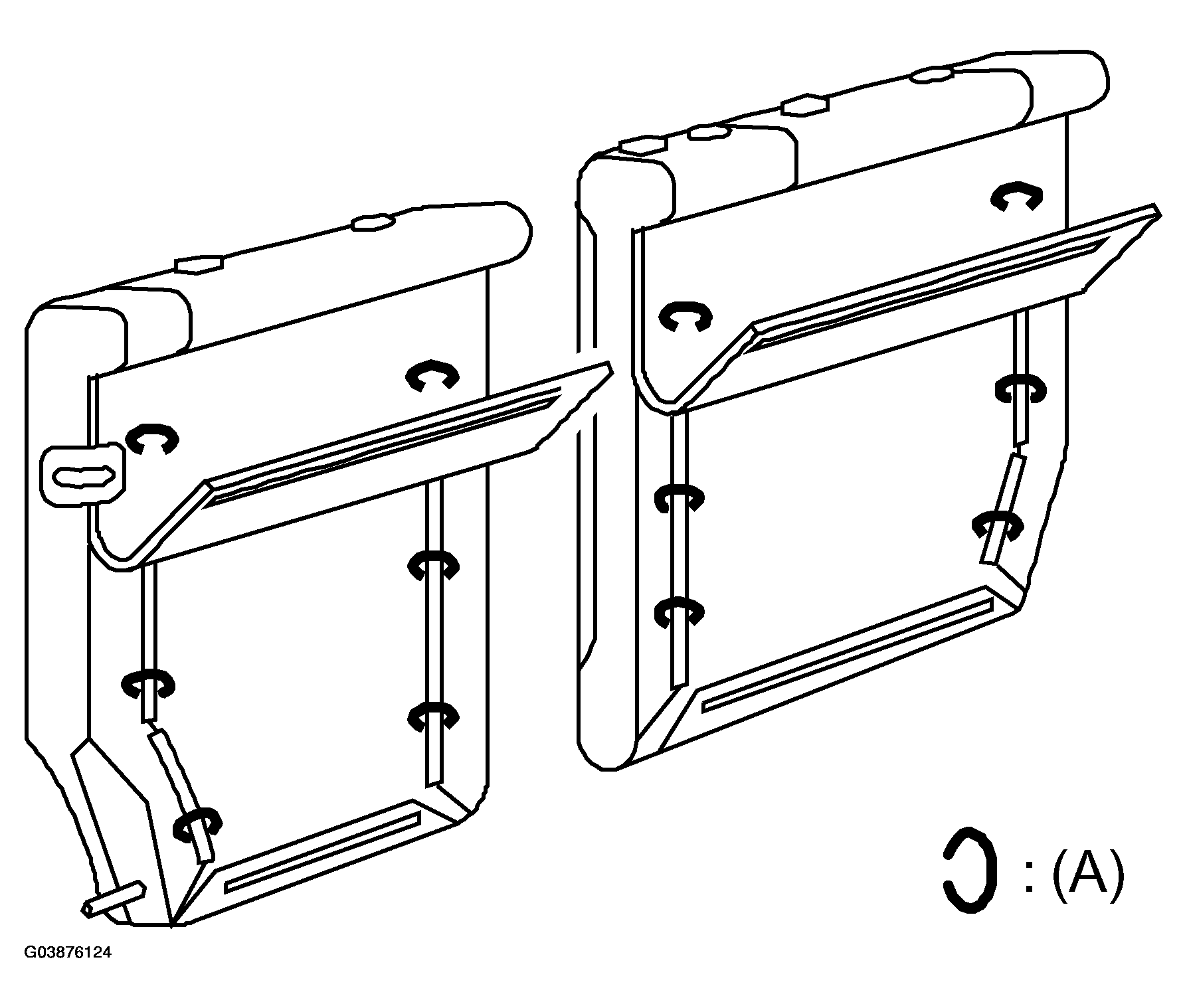

Remove the hog rings (A), and then remove the cover.

Fig 4: Removing Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.
