Rear Seat

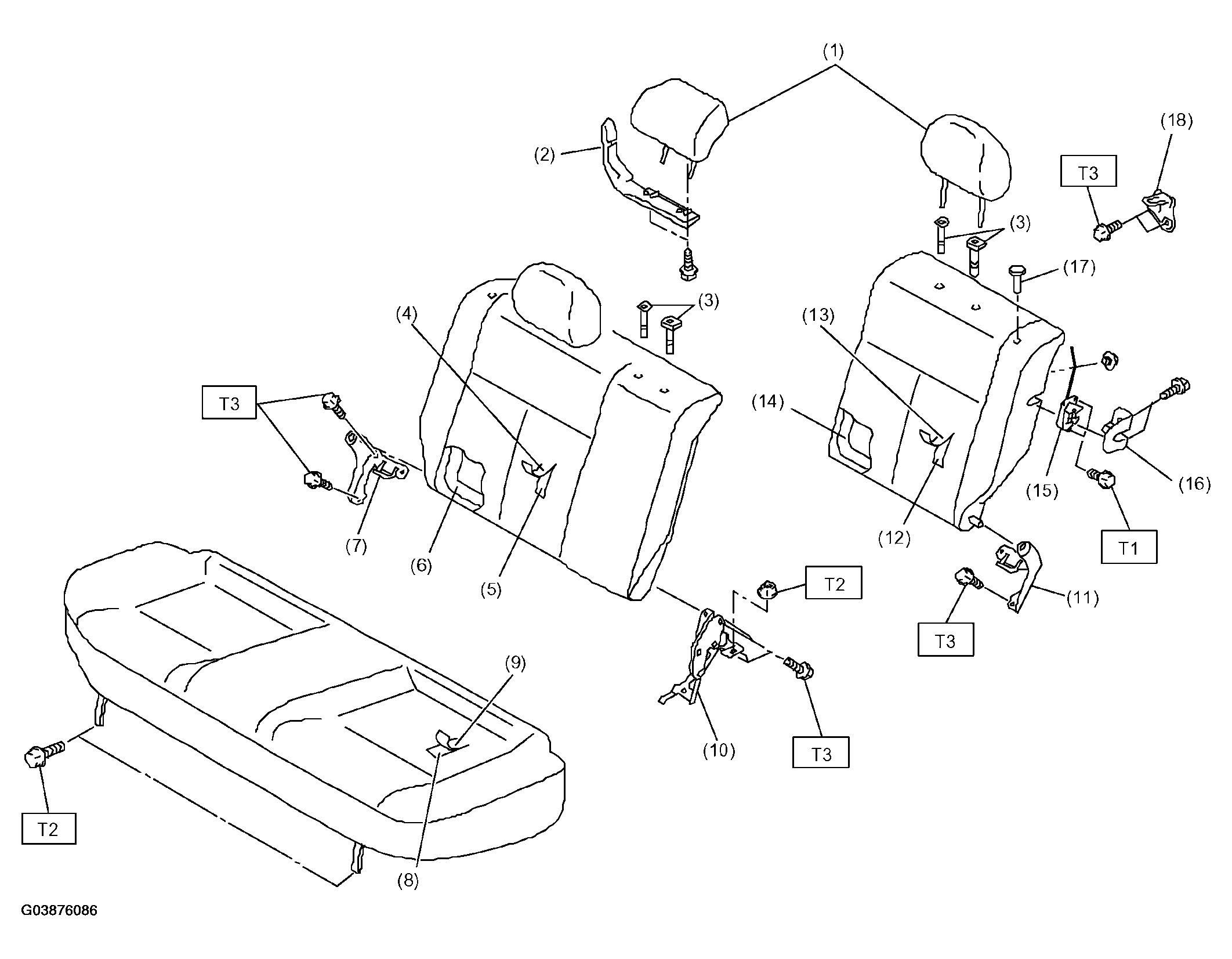

Fig 1: Illustration For Steps 1-18

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Headrest
2. Seat belt guide
3. Headrest bush
4. Backrest cover RH
5. Backrest pad RH
6. Backrest frame RH
7. Hinge ASSY RH
8. Seat cushion cover
9. Seat cushion pad
10. Hinge ASSY CTR
11. Hinge ASSY LH
12. Backrest pad LH
13. Backrest cover LH
14. Backrest frame LH
15. Seat back latch
16. Seat back latch cover
17. Backrest knob
18. Striker

Tightening torque: Nm (kgf-m, ft-lb)

T1: 17.7 (1.81, 13.1)

T2: 24.5 (2.5, 18.1)

T3: 33 (3.3, 24.6)
