Rear Regulator & Motor Assembly: Removal

Remove the rear door glass.

Remove the front sash.

Disconnect the motor connector.

Remove the four bolts and two nuts to remove regulator assembly.

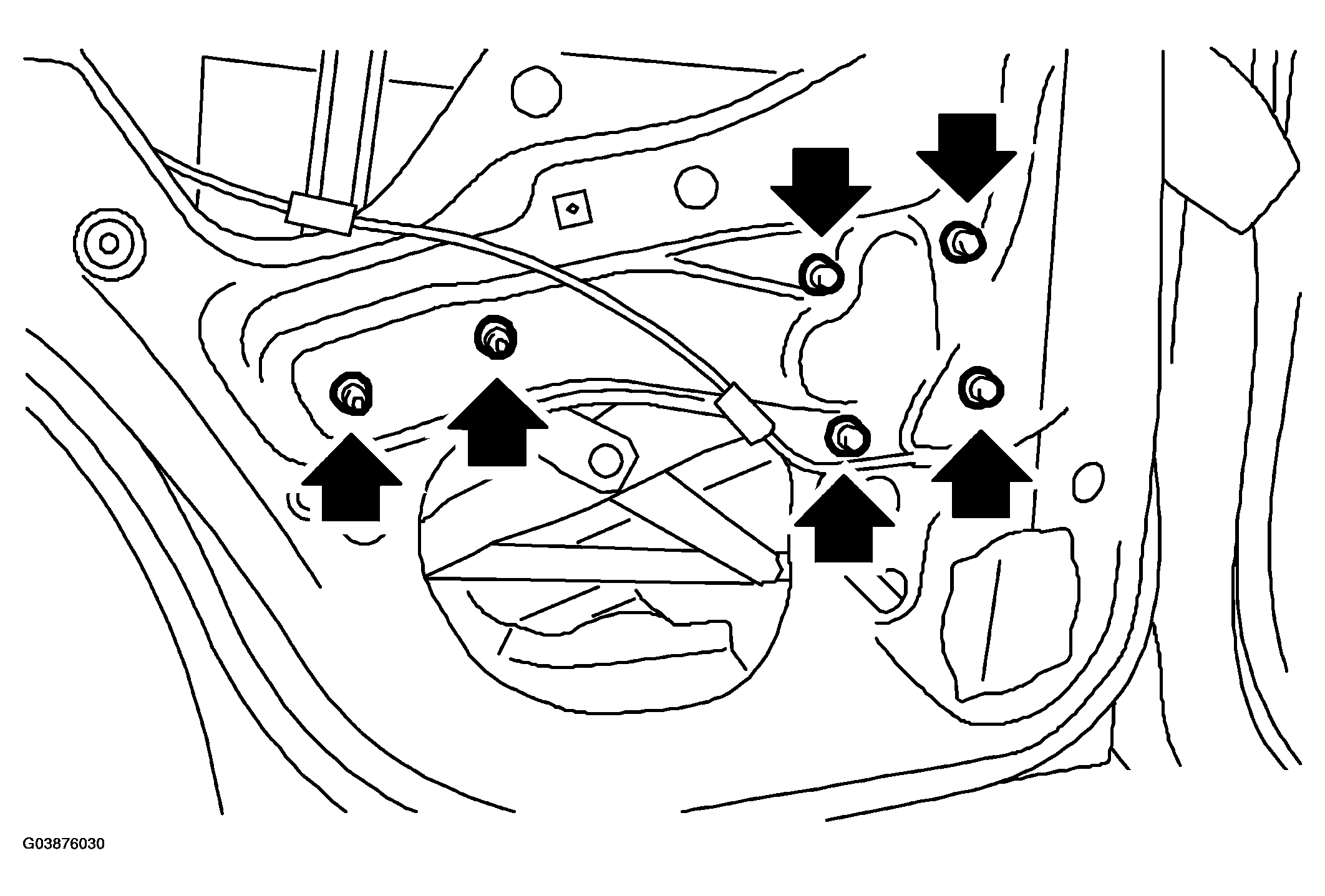

Fig 1: Removing Regulator Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the screws to remove motor assembly.

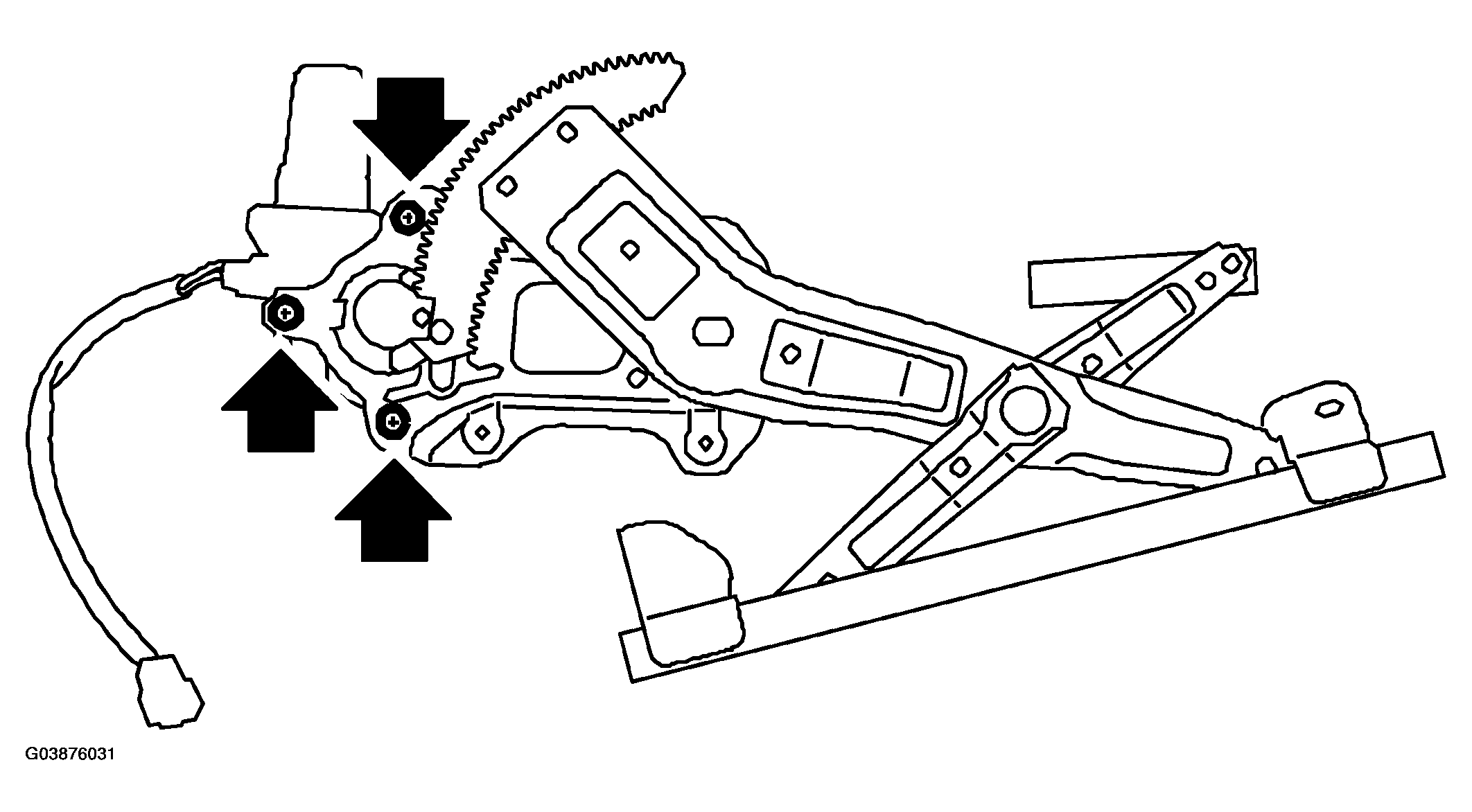

Fig 2: Removing Motor Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.
