Upper Inner Trim: Installation
Install in the reverse order of removal.
IMPORTANT:
Be sure to securely hook the pawls of inner trim panel to body flange.
NOTE:

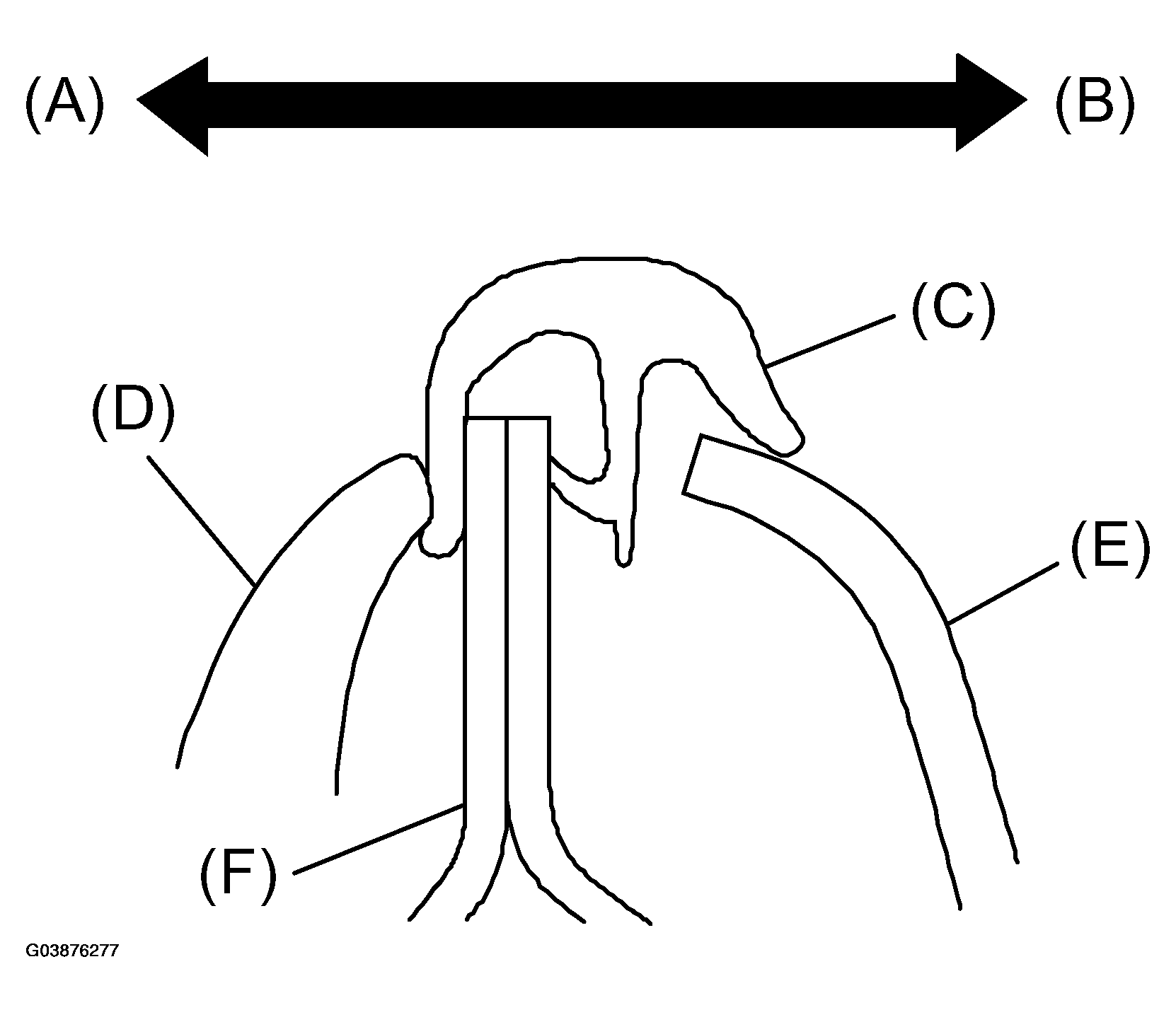

When installing the center pillar upper trim and front pillar upper trim, be sure to set the front molding as shown in the figure.
- Outside
- Inside
- Molding
- Weather strip
- Trim
- Body
