Roof Molding: Installation

Remove the clip of roof from roof molding, and then install it to body side.

IMPORTANT: Make sure to replace the clips broken when removing the roof molding with new ones.

Put the front edge of roof molding onto front window molding, and insert the front locating pin into body side cap.

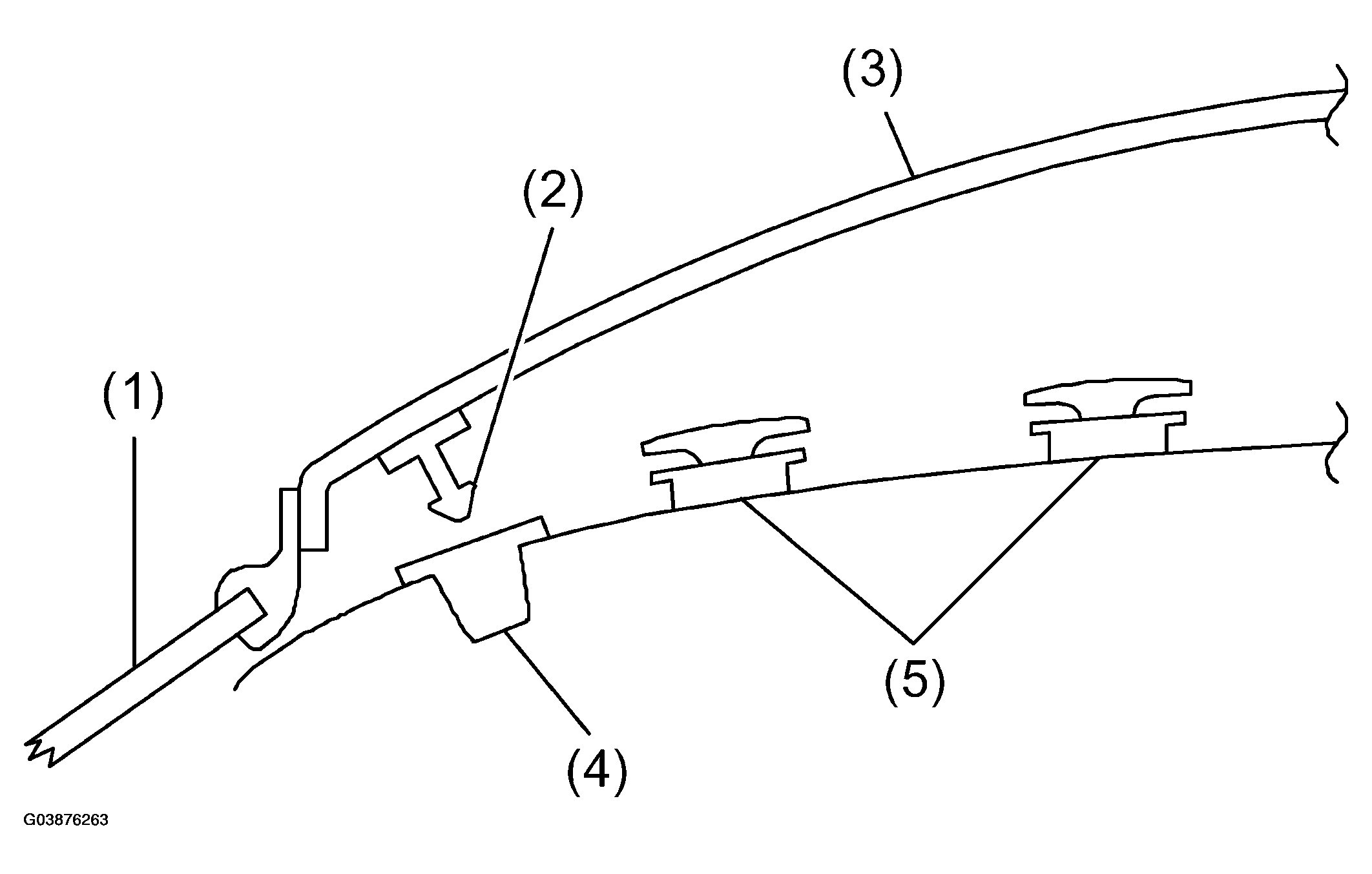

Fig 1: Illustration For Steps 1-5

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the roof molding to body, by pushing the roof molding from above being careful not to deform it.
