Lower Inner Trim: Removal

Remove the side sill front cover (A).

Remove the rear seat cushion , and then remove side sill rear cover (B).

Remove the center pillar lower trim (C).

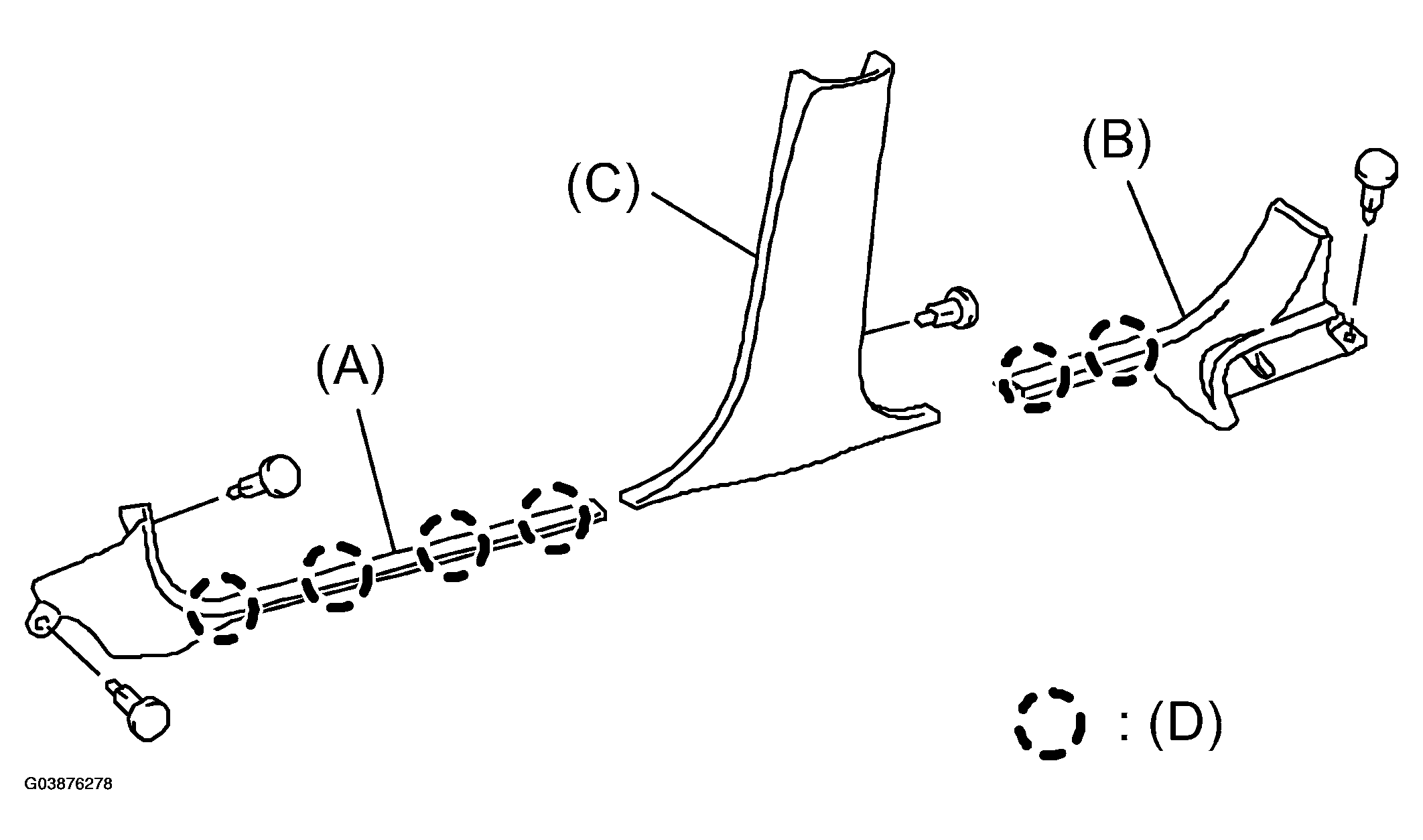

Fig 1: Removing Center Pillar Lower Trim

Courtesy of SAAB-SCANIA OF AMERICA, INC.

(D) Clip
