Front Under Cover: Removal

Lift-up the vehicle.

Remove the bolts and clips to remove under cover.

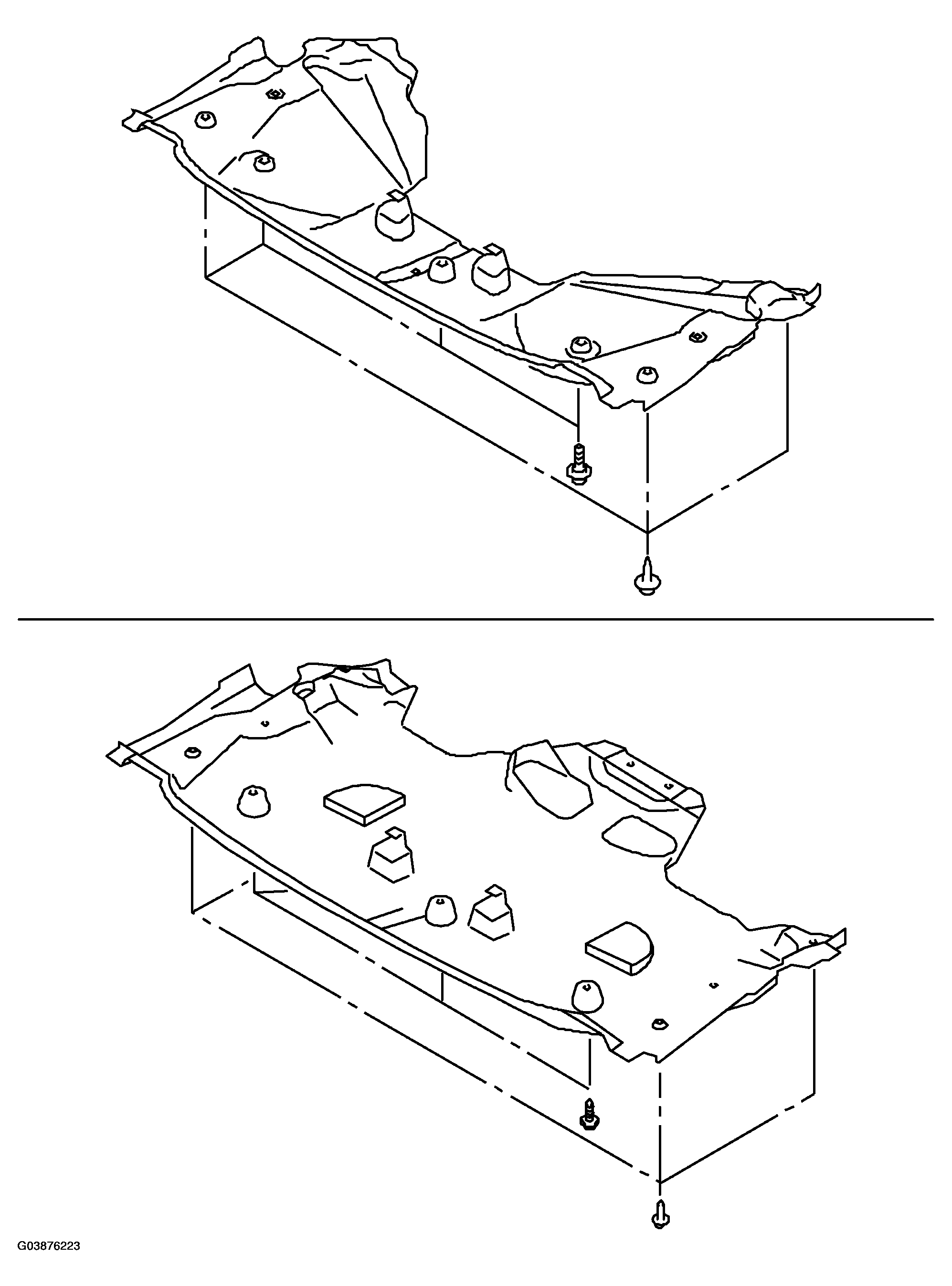

Fig 1: Removing Bolts

G03876223

Courtesy of SAAB-SCANIA OF AMERICA, INC.
