Home >> Saab >> 2005 >> 9-2X Linear, 251, Standard >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> General Description >> Component View >> Under Cover

Under Cover

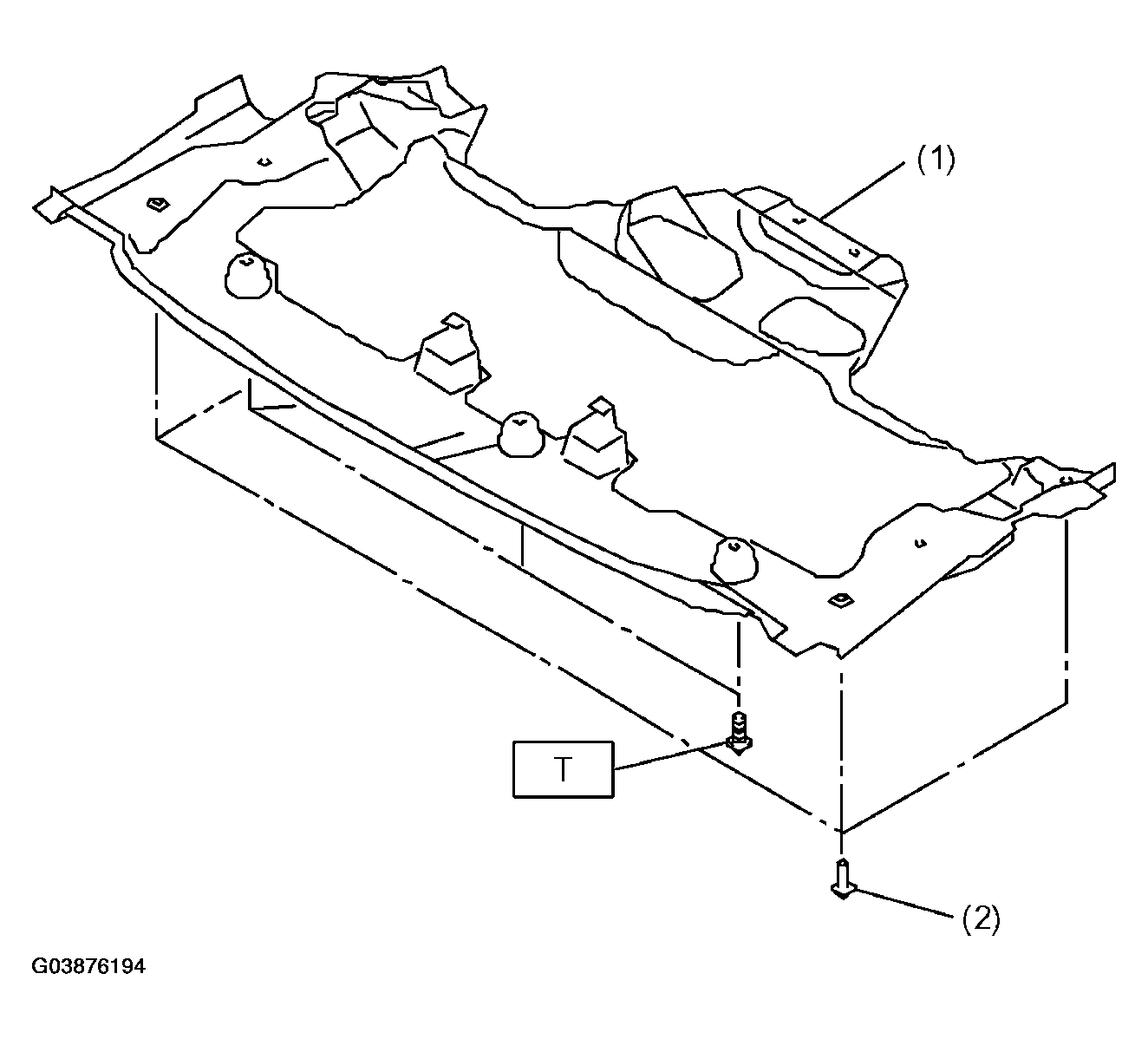

Fig 1: Illustration For Steps 1-2
G03876194Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Under cover
  2. Clip (side)

Tightening torque: Nm (kgf-m, ft-lb)

T: 14 (1.42, 10.3)
