Side Sill Spoiler

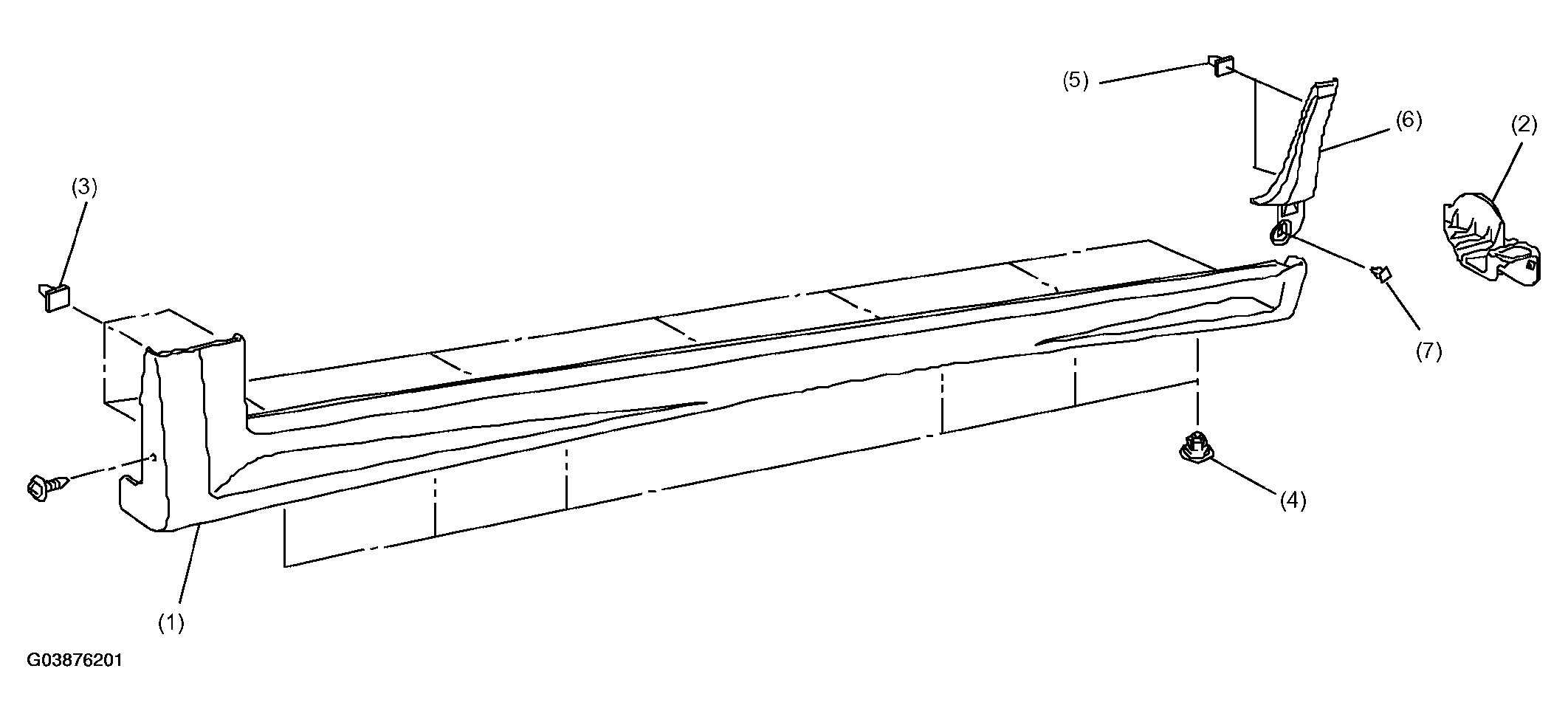

Fig 1: Illustration For Steps 1-7
G03876201Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Side sill spoiler
  2. Rear air flap plate
  3. Clip
  4. Clip (Side sill spoiler)
  5. Clip (protector R/Q)
  6. Protector R/Q
  7. Rivet clip
