Roof Spoiler

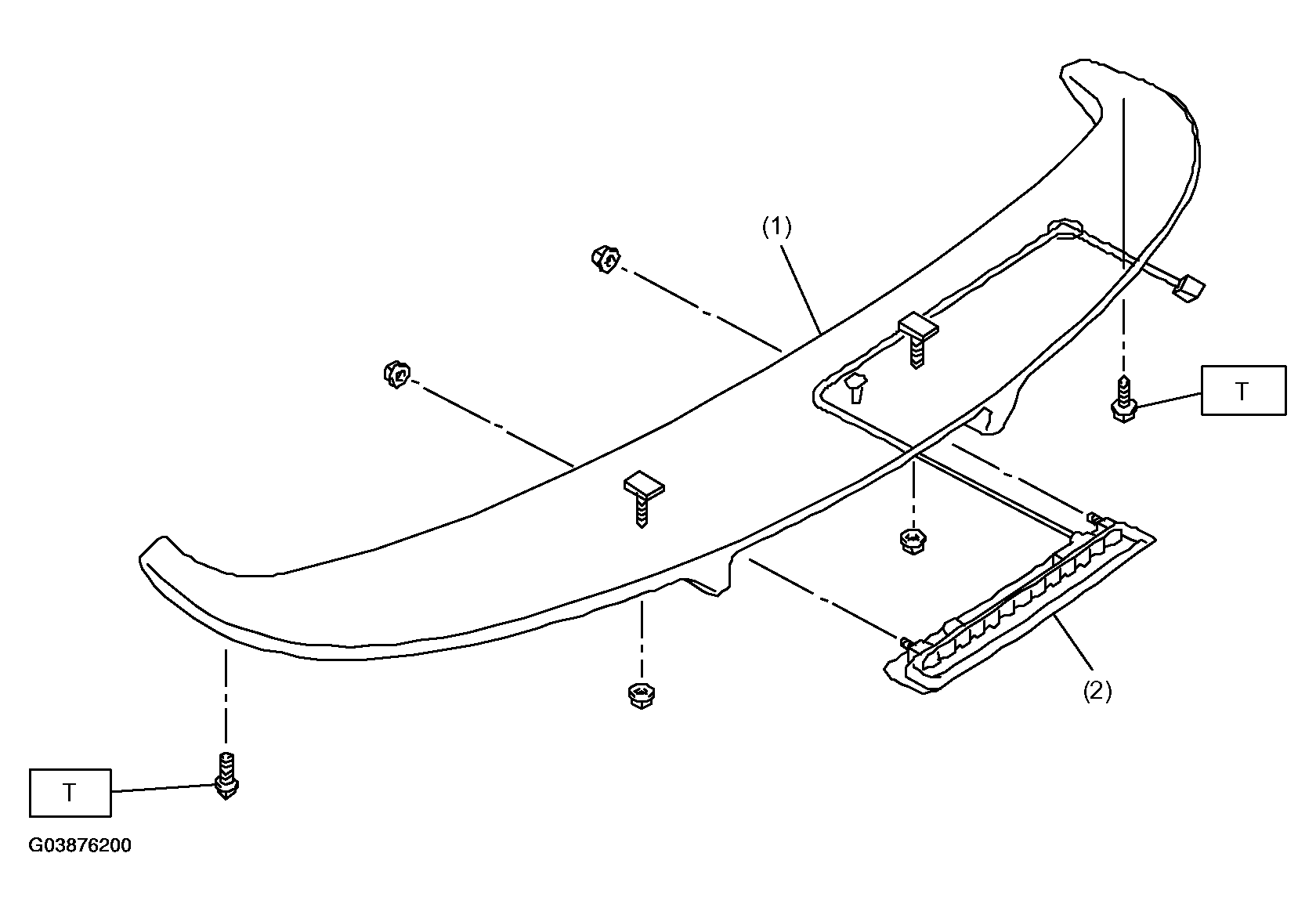

Fig 1: Illustration For Steps 1-2
G03876200Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Roof spoiler
  2. High-mounted stop light

Tightening torque: Nm (kgf-m, ft-lb)

T: 7.4 (0.75, 5.46)
